Thickness Measurement, Web Page Display
Thickness Measurement, Web Page Display
Align the sensor vertically to the target object.
Then, move the sensor (or the target) closer, until you more or less reach the working distance for your sensor.
Once the object is within the sensor's measuring range, the Range LED (green or yellow) on the front of the controller
will light up. Or, observe the FFT signal.
3
2
1

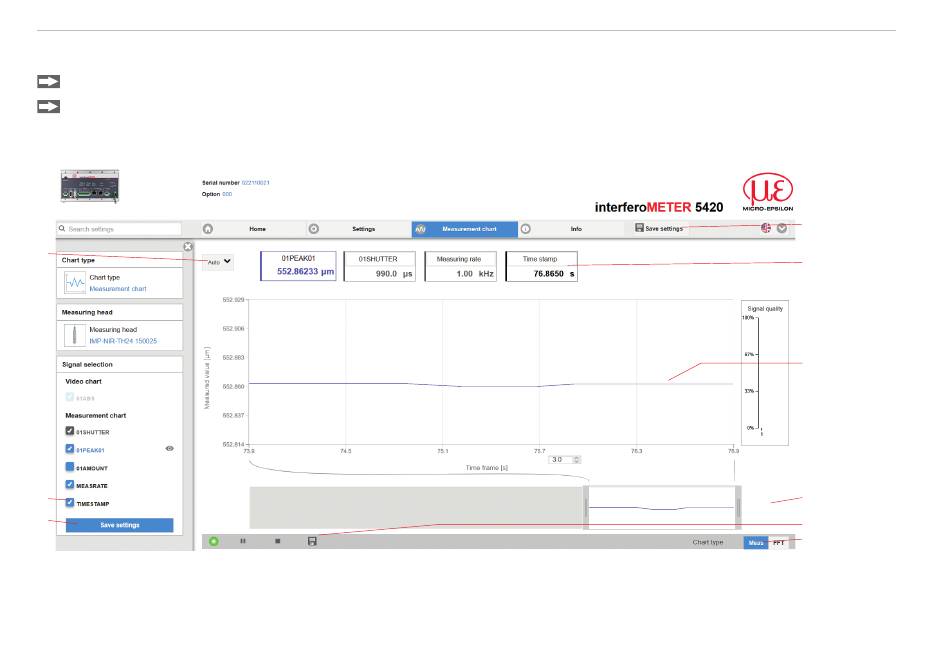

Measurement
web page (thickness measurement)
Changes only take effect after clicking the Save settings button.
1
IMS5420-TH / IMS5420MP-TH / IMS5420IP67-TH / IMS5420IP67MP-TH
1
4
5
6
7
8
