Setup, Connection Options

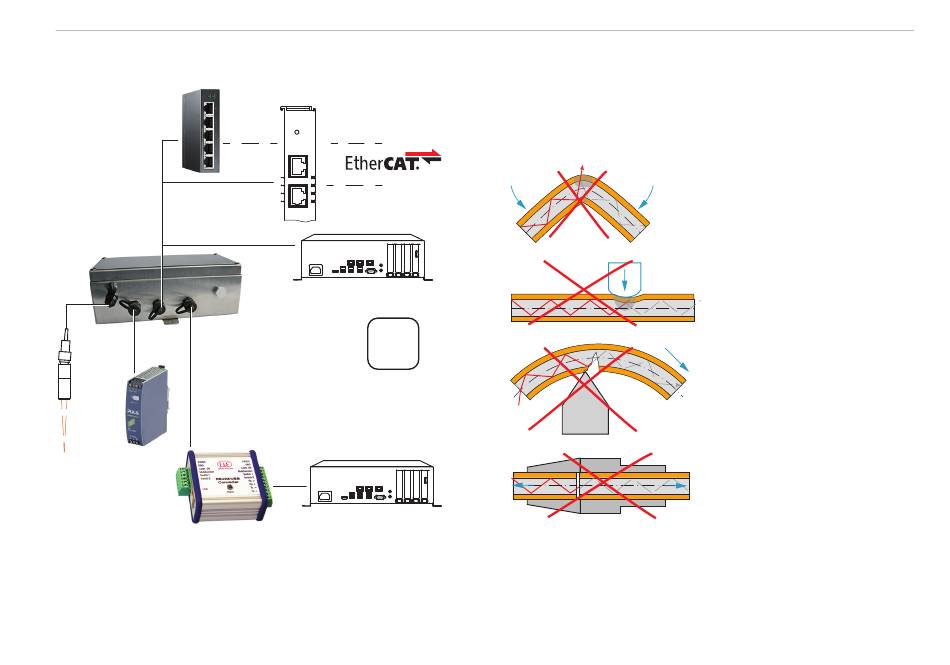

A more detailed description of the connection options is
available in the operating instructions.
Switch /
Hub
Patchkabel 2x RJ45
Controller
Sensor
SC2471-x/RS422/OE
PS 2020
IF2001/USB
Connection examples on IMS5420IP67, IMS5420IP67MP
IMS5420-TH / IMS5420MP-TH / IMS5420IP67-TH / IMS5420IP67MP-TH
2-Port
EtherCAT-
Abzweigung
Run
X1
X2
IPC
SPS
USB
IPC
Sensor Cable
Sensor and controller are connected through an
optical fiber.
- Do not shorten or extend the optical fiber.
- Do not pull or hold the sensor on the optical fiber.
Cleaning of the connectors requires the
corresponding know-how.
Do not kink the optical
fiber.
Do not crush the opti-
cal fiber, do not fasten
it using cable ties.
Please do not grind the
optical fiber over sharp
corners.
Do not pull the optical
fiber.
