Initial Operation
Number of Peaks
Number of peaks of the FFT signal used for evaluation in thickness measurement. The number of peaks can be se-
lected in the Settings > Data recording > Number of peaks.
This function is possible for the following systems:
- IMS5420MP and IMS5420IP67MP: max. 5 layers
Make sure to count the peaks in the correct manner, see Chap. Measpeak Sorting.
The material selection for a thickness measurement starts with the thinnest layer (layer 1) independent of the physical
arrangement in the measuring object.

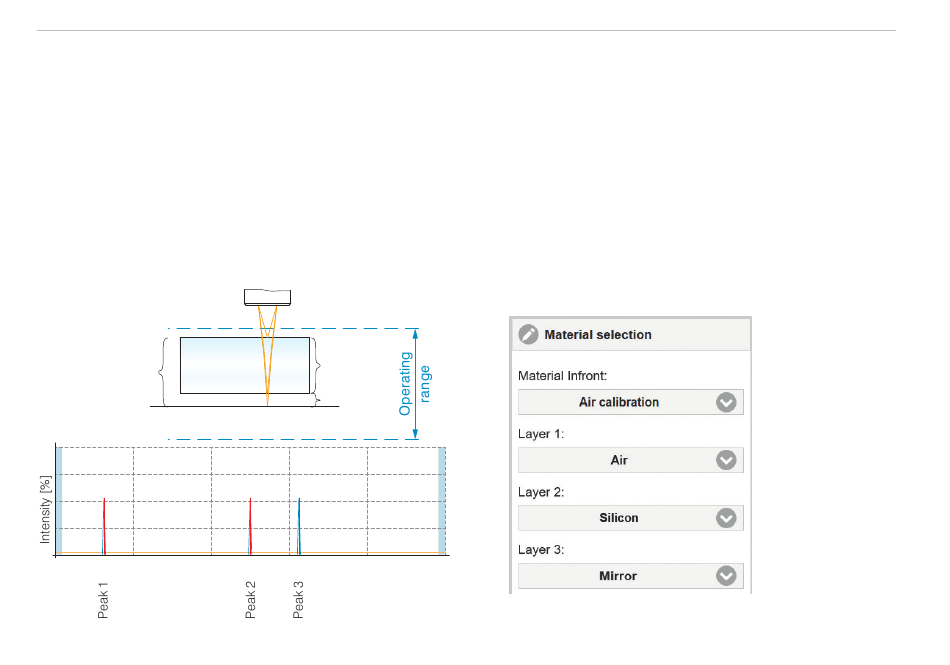

Example of a layer of silicon and gap, measpeak sorting: First, corresponding material selection
IMP-TH
Silicon
Peak 3
Gap
0 20 40
IMS5420-TH / IMS5420MP-TH / IMS5420IP67-TH / IMS5420IP67MP-TH
Peak 2
Peak 1
Range [%] 60 80 100
