MICRO-EPSILON interferoMETER IMS5420 Quick Manual page 13

Initial Operation

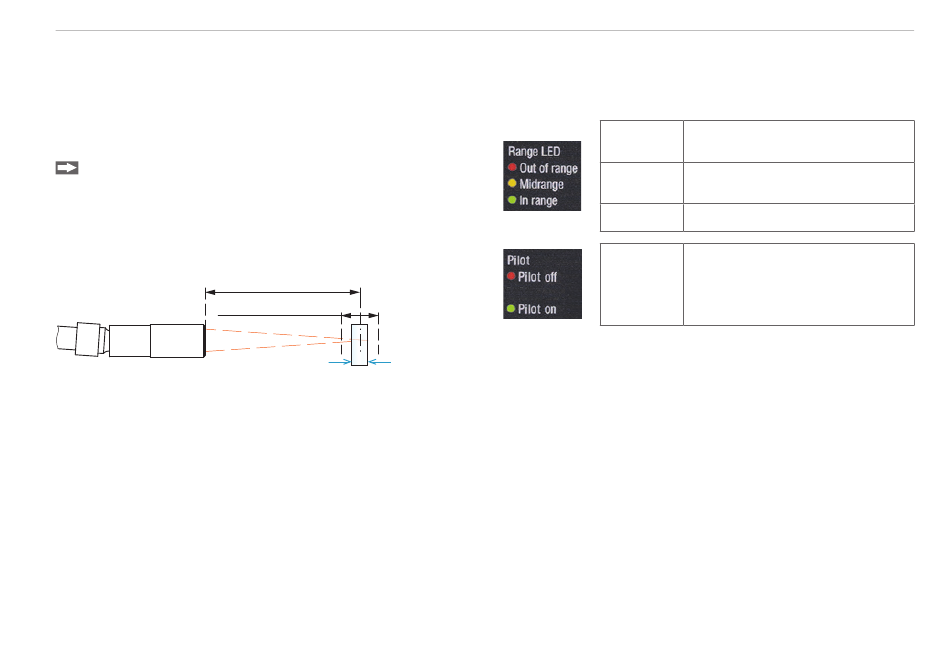

Positioning the Target, Thickness Measurement
The red-light pilot laser supports you in aligning the
sensor to the target during commissioning.
Turn on or off the pilot laser in the menu Settings >
System settings.
Position the target (measurement object) as much
as possible in the mid of the measuring range.
The peak positions remains stable in the FFT signal,
even though the measurement target moves. The peak
position depends on the target thickness.
Working distance
Operating range
Basics thickness measurement
IMS5420-TH / IMS5420MP-TH / IMS5420IP67-TH / IMS5420IP67MP-TH
Measuring range
1
thickness
The LED Range on the controller front indicates the
position of the target in relation to the sensor.
Red
Yellow
Green
Green
1) The thickness measuring range is 0.05 ... 1.05 mm for
n=3.82 (silicon); for air gap measurement between
two glass plates (n~1) the measuring range is 0.2 ...
4.0 mm.
No target or target outside the
operating range
Target close to the working
distance
Target within operating range
Pilot laser is turned on and off
alternately, if no target or
outside the measuring range
