2 System Configuration and Configuration Devices
2-3
Network Configuration between Con-
trollers

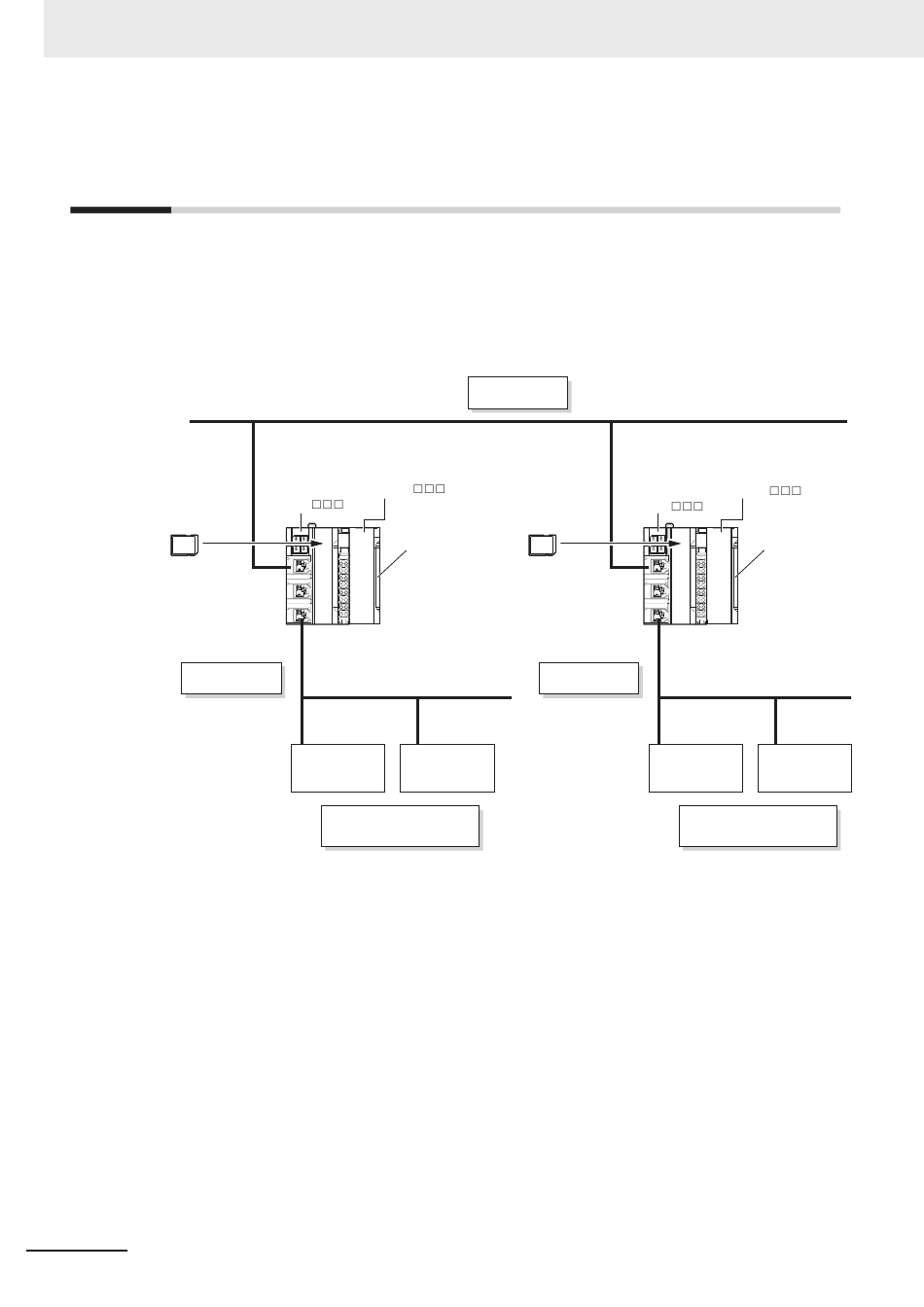

The network configuration between Controllers consists of multiple Safety Network Controllers. You
can configure network between Controllers when you connect the built-in EtherNet/IP ports of Com-
munication Control Unit to the EtherNet/IP network. This network provides CIP Safety on EtherNet/IP
communications between multiple network controllers.
For details on configuration devices, refer to 2-1-3 Configuration Units on page 2-3.
SD Memory
Card
EtherNet/IP
2-6
Communication Safety CPU Unit
Control Unit NX-SL5
NX-CSG
End Cover
CIP Safety on
EtherNet/IP Device
NX-series Safety Control Unit/Communication Control Unit User's Manual (Z395)
EtherNet/IP
Communication
Control Unit
SD Memory NX-CSG
Card
EtherNet/IP
Safety CPU Unit
NX-SL5
End Cover
CIP Safety on
EtherNet/IP Device
