Omron sysmac NX Series User Manual page 536

9 Checking Operation and Actual Operation
2

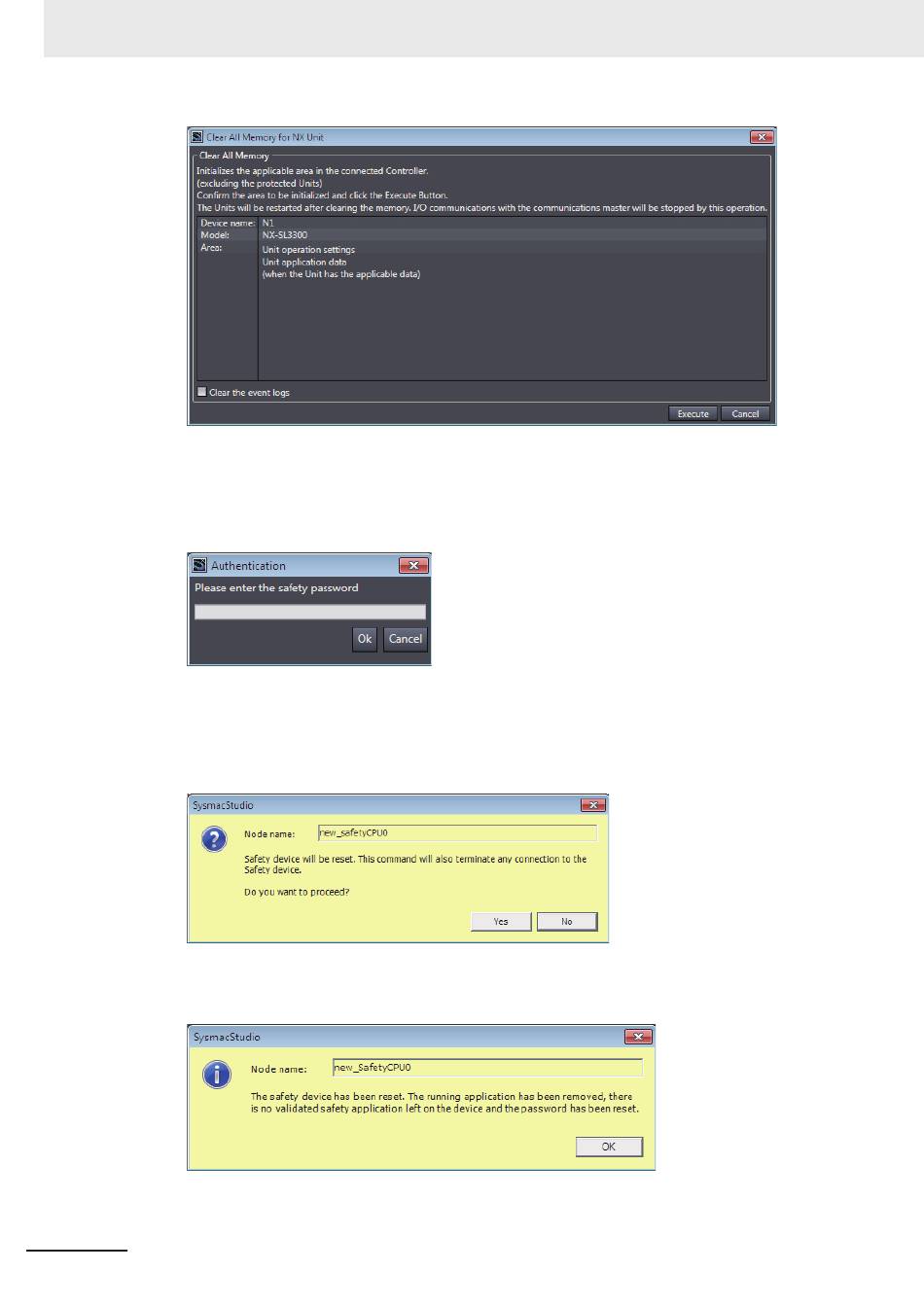

Click the Execute Button. The Clear All Memory Confirmation Dialog Box is displayed.
3
Click the Yes Button. The Authentication Dialog Box is displayed.
4
Enter the password, and click the OK Button. If a password is not set, leave the box empty and
click the OK Button.
A dialog box is displayed to confirm the node.
5
Click the Yes Button. The following dialog box is displayed.
9-72
NX-series Safety Control Unit/Communication Control Unit User's Manual (Z395)
