5-2-5
Mounting the End Cover
Always mount the End Cover (NX-END02) provided with the product to the end of the CPU Rack.
Precautions for Safe Use
The End Cover has a metal portion and is heavier than it looks. Be careful not to drop it when
handling.
Precautions for Correct Use
Always mount an End Cover to the end of the CPU Rack to protect the last Unit on the CPU
Rack. Not mounting the End Cover may result in malfunction or failure of the Units.
1

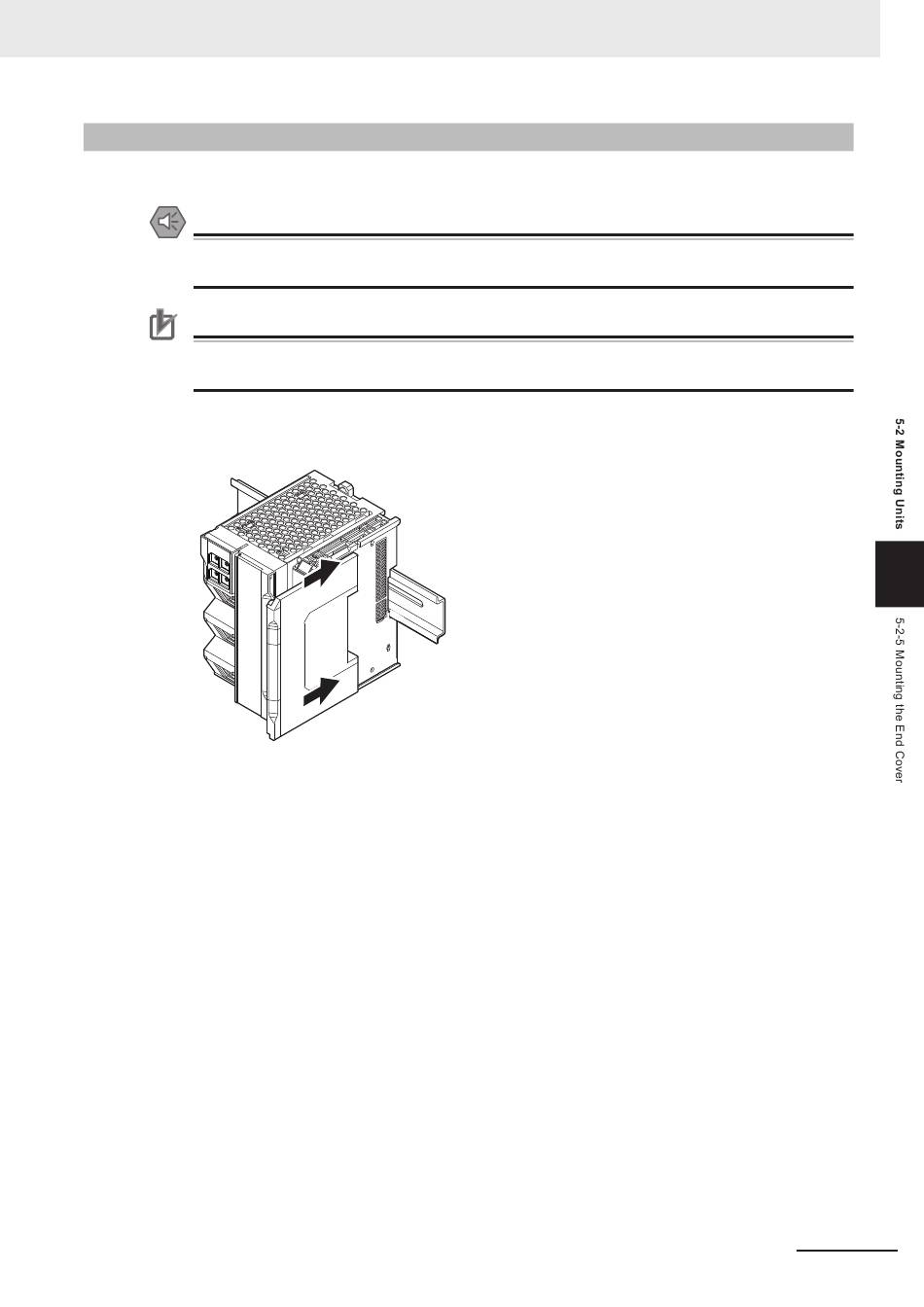

From the front of the rightmost Unit, slide the End Cover along the Unit hookup guides on the
rightmost Unit on the CPU Rack.
2
Press the End Cover firmly against the DIN Track until you hear it lock into place on the DIN
Track.
After you mount the End Cover, make sure that it is securely mounted on the DIN Track.
