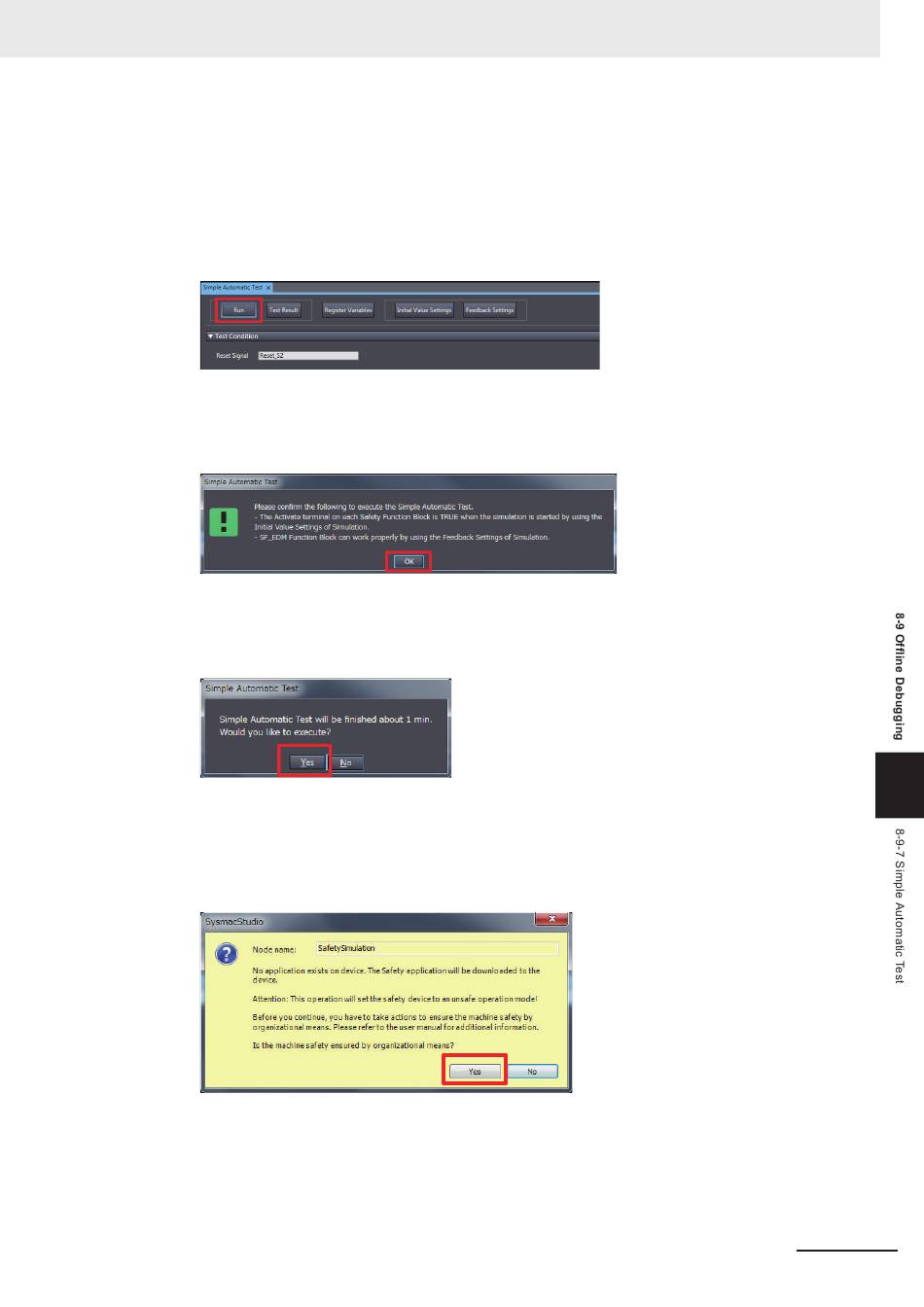

Select Simulation - Simple Automatic Test from the menu.
The Simple Automatic Test Tab Page is displayed.
2
Set the Test Condition, Input Settings, Output Settings, and Expected Value Settings.
3
Click the Run Button on the control panel on the Simple Automatic Test Tab Page.
4
A precaution is displayed to ensure proper execution of the Simple Automatic Test. Read the
precaution and then click the OK Button.
5
The estimated execution time for the Simple Automatic Test is displayed. Click the Yes Button
to execute the test.
6
The Simulator for the Safety CPU Unit starts. Following the on-screen instructions to complete
starting the Simulator.
Click the Yes Button.
Click the OK Button.
