5 Installation and Wiring
1

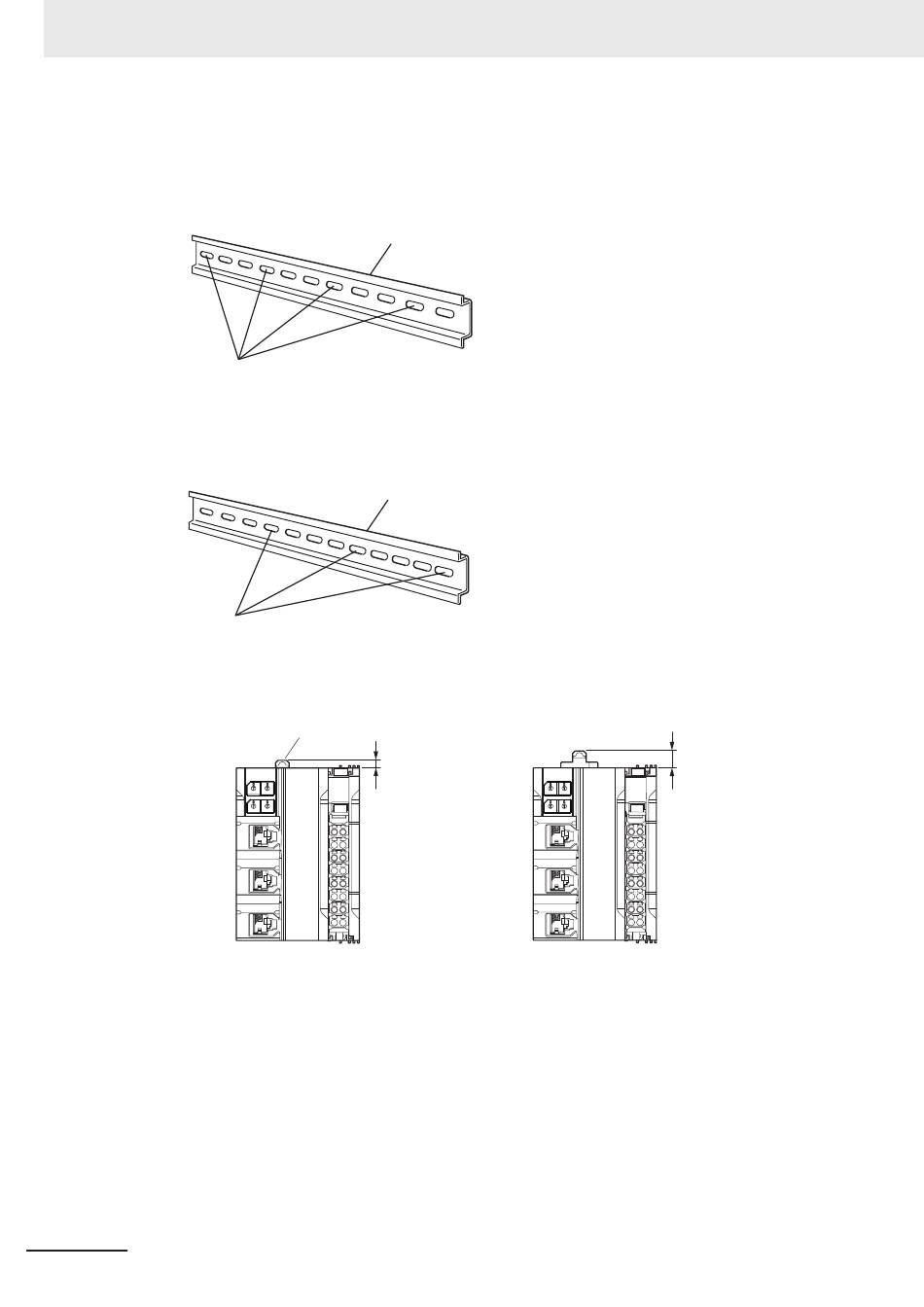

Install the DIN Track.
• Using a PFP-50N/100N DIN Track
Use one M4 screw for each three holes in the DIN Track. There must be a screw for each inter-
val of 105 mm or less. The screw tightening torque is 1.2 N·m.
Use one screw for each three holes.
• Using an NS 35/7,5 PERF or NS 35/15 PERF DIN Track
Use one M6 screw for each four holes in the DIN Track. There must be a screw for each inter-
val of 100 mm or less. The screw tightening torque is 5.2 N·m.
Use one screw for each four holes.
2
Make sure that the DIN Track mounting hook on the Communication Control Unit is in the
locked position.
Locked position of DIN Track
If the DIN Track mounting hook is pressed down, it is in the locked position.
If the DIN Track mounting hook is pulled up, it is in the unlocked position.
If it is in the unlocked position, press down the DIN Track mounting hook to place it to the
locked position.
3
Press the Communication Control Unit with a certain amount of force against the DIN Track un-
til you hear the DIN Track mounting hook lock into place.
After you mount the Communication Control Unit, make sure that it is securely mounted on the
DIN Track.
5-12
DIN Track
DIN Track
DIN Track mounting hook
4.5mm
mounting hook
NX-series Safety Control Unit/Communication Control Unit User's Manual (Z395)
9.7mm
Unlocked position of DIN Track
mounting hook
