7 Settings
Additional Information
The following network variable names are not allowed.
• Variable names that contain only single-byte numerals from 0000 to 6143
• Variable names with the following single-byte letters (uppercase or lowercase) followed by
single-byte numerals
a) H (H000 to H511)
b) W (W000 to W511)
c) D (D00000 to D32767)
d) E0_ to E18_ (E0_00000...E0_32767 to E18_00000...E18_32767)
l Registering Tags and Tag Sets
You can register tag sets required for tag data links.
Each tag set represents data that is sent and received through a connection. You can register up to
32 tags in one tag set. The name and size of a tag must be the same as those of the network varia-
ble. Set whether to include the Controller status information in tags for the tag sets. You can also
set the data output operation at a fatal error occurrence for output tags.

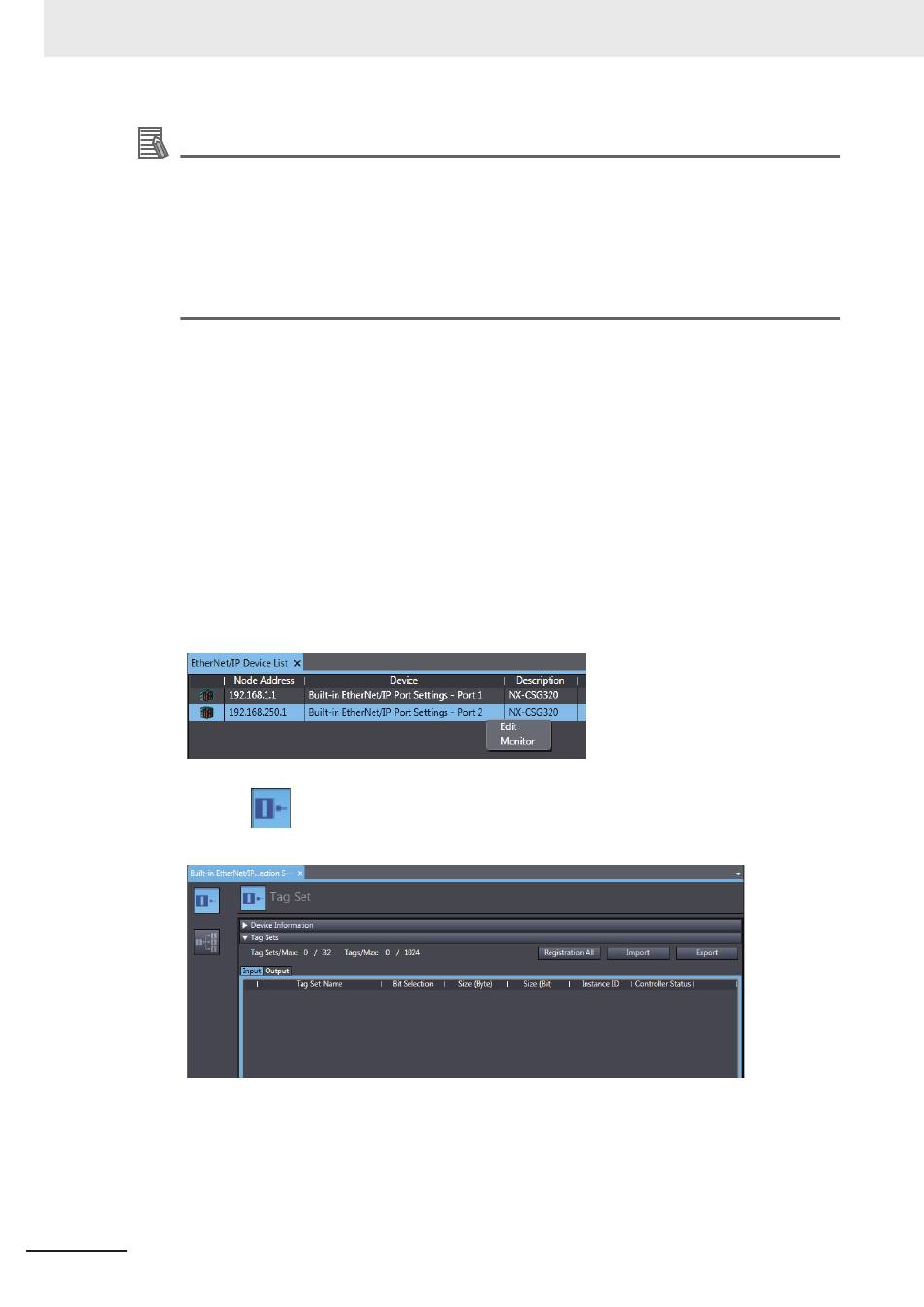

You can register tags and tag sets on the Built-in EtherNet/IP Connection Settings Tab Page.
1
On the main menu, select Tools – EtherNet/IP Connection Settings and show the
EtherNet/IP Device List Tab Page.
2
Select Built-in EtherNet/IP Port Settings - Port 2 of Communication Control Unit. Right-click
and select Edit to show the Built-in EtherNet/IP Connection Settings Tab Page.
3
Click the
Page.
4
Click the Input Tab to switch to the Input Tab Page. Register the tag sets and tags.
You can register tag sets and tags by "Independent registration" or "Batch registration".
• Independent registration
You can manually register network variables in the Controller as tags.
7-18
(Show Tag Set Display) icon in the Built-in EtherNet/IP Connection Settings Tab
NX-series Safety Control Unit/Communication Control Unit User's Manual (Z395)
