Digital Output; Figure 45: Set To Sink Input Type; Figure 46: Set To Source Input Type - Techman Robot TM12S Series Hardware Installation Manual

Figure 45: Set to Sink Input Type

⚫ Set to Source input type
When a device such as a transistor output sensor is connected, PNP open collector transistor output
can be used.

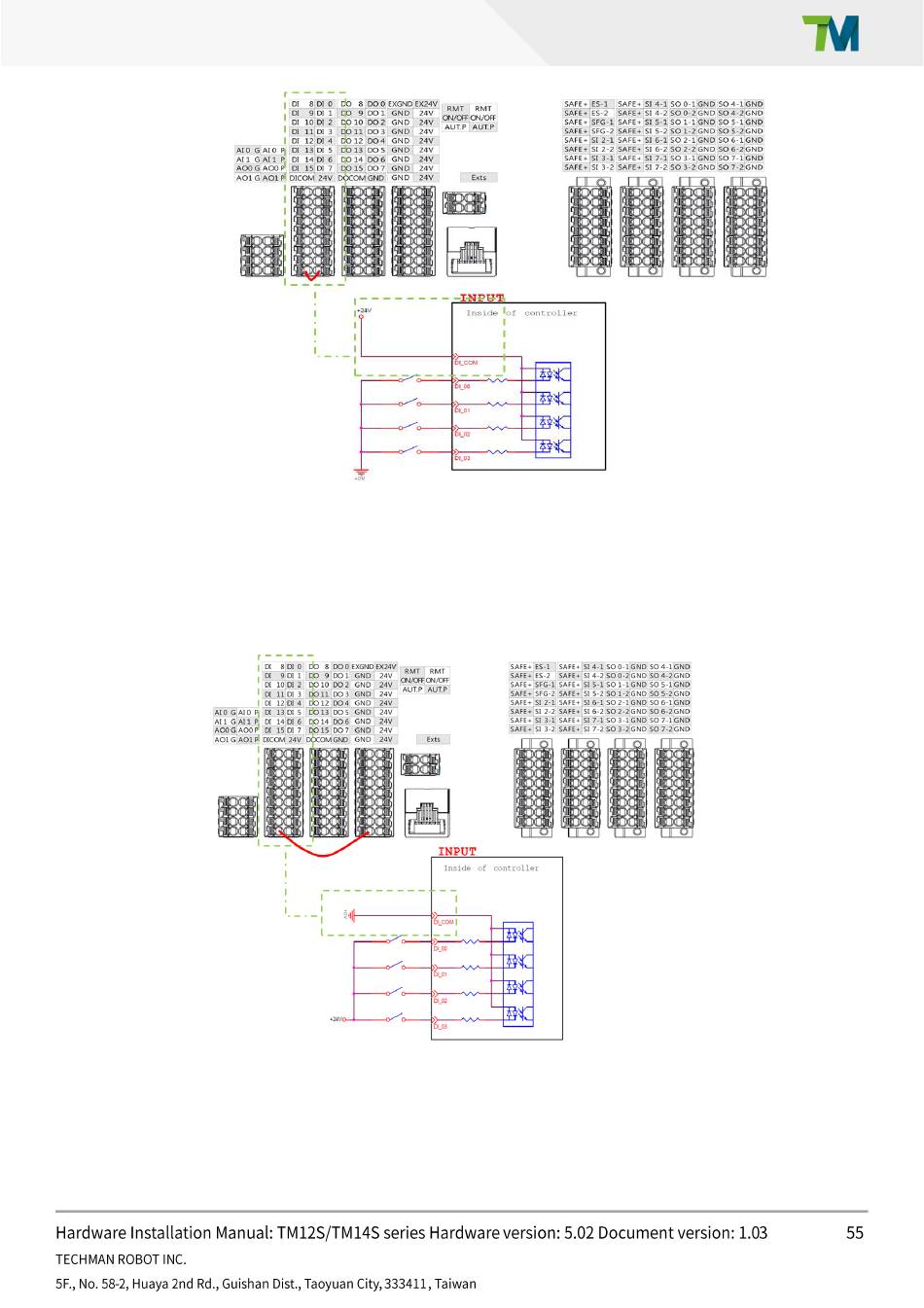

Figure 46: Set to Source Input Type

5.3.3.2 Digital Output

Outputs can be set to either sink output or source output by selection.
