6.3 Unboxing

6.3.1 Carton Types

The TM AI Cobot product comes with 2 cartons: the robot arm carton, and the control box carton, as
shown below. Also, a SEMI Emergency OFF switch carton will comes along with the SEMI series. For
TM12S-M SEMI or TM14S-M SEMI, there will be an additional carton comes with the SEMI Emergency
OFF Box. Refer below for the ratio of the cartons. The actual sizes of the cartons may differ from
measurements

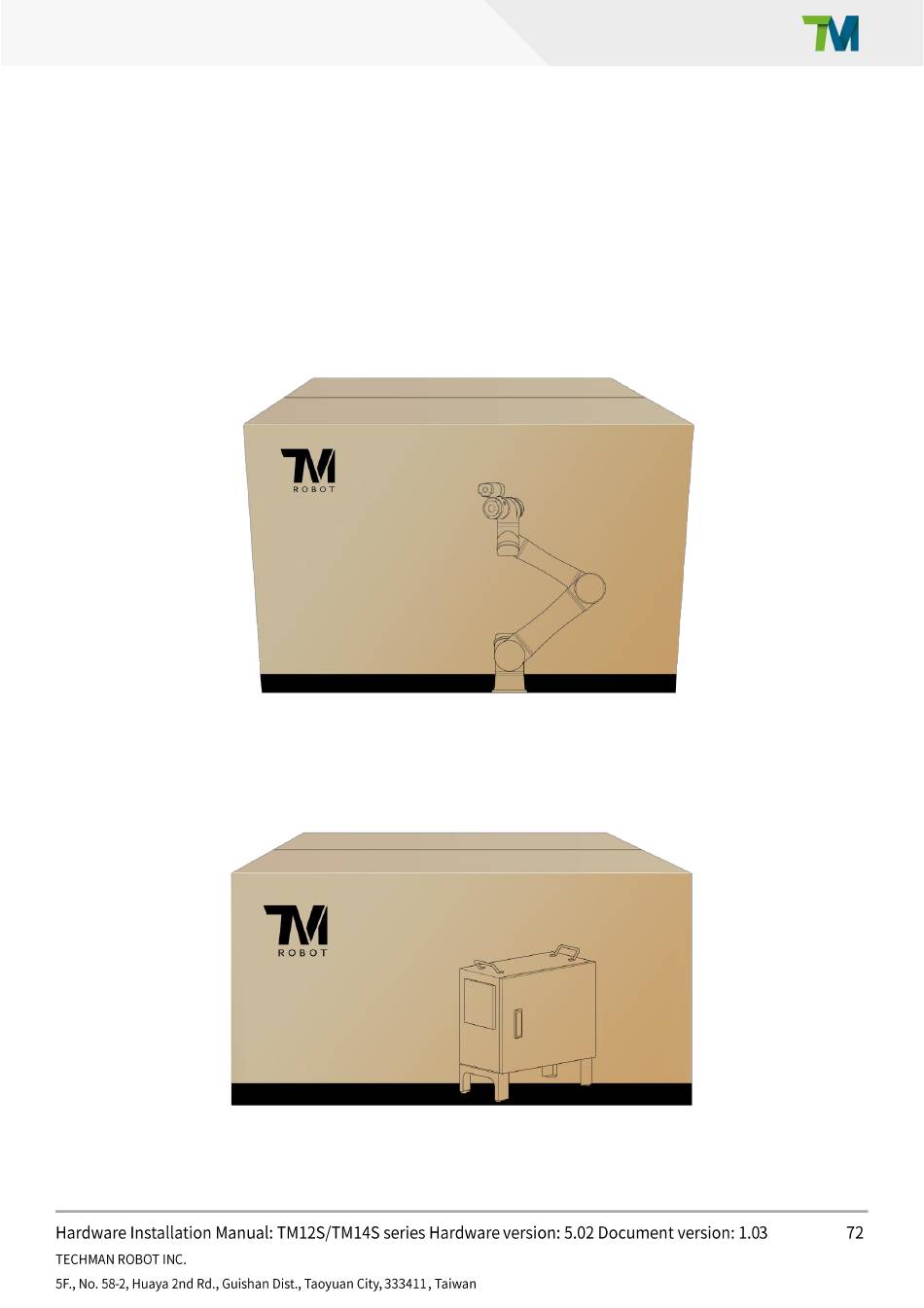

Figure 69: Robot Arm Carton

Figure 70: Control Box Carton (AC)
