AGV/AIV Footprint

Figure 34: Top View of TM AI Cobot Placed on the AGV/AIV

4.4 Working distance and field of view of TM AI Cobot's EIH camera

The field of view of TM AI Cobot's EIH camera varies linearly in accordance with the working distance. The
minimum working distance is about 100 and the maximum working distance is about 300 . The zero
working distance point is approximately 44.76 in front of the flange surface and right behind the center of the
protection lens.

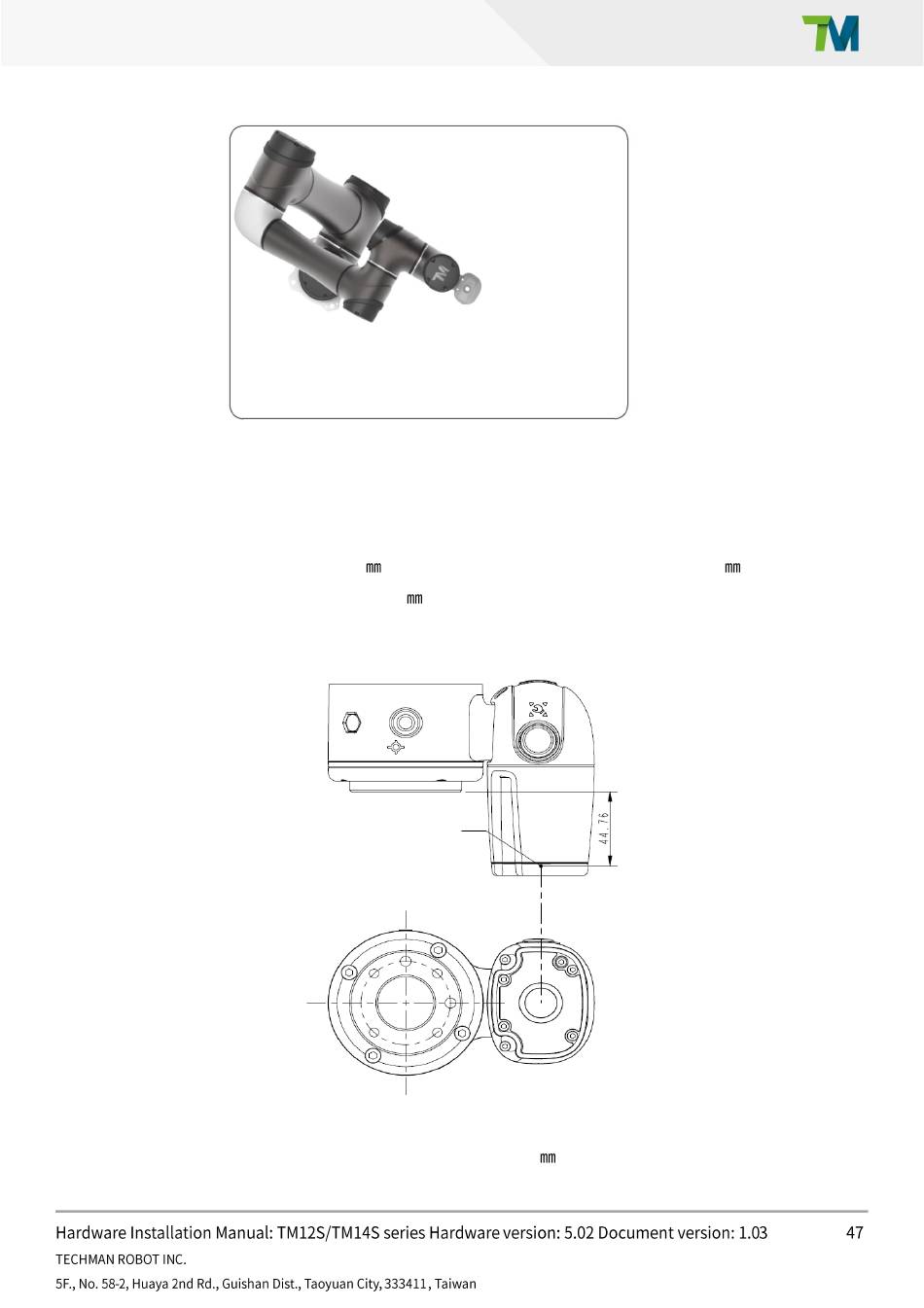

Figure 35: Working Distance and Field of View of TM AI Cobot's EIH camera

*All measures are in .
