The Robot Arm itself should be handled with at least two people. One person should carry the Lower arm
and Upper arm, and the other should hold on to the position between the base and 1
6
Joint. Before the Robot Base is fastened with screws tightly, the Robot Arm should always be
th
supported to avoid tipping.
WARNING:
When the robot is installed to the base, make sure two people work together to install it. If the
base is designed with pinholes, pay attention to your safety to avoid pinching. If you do not
have connection parts at hand, such as the connecting pins and screws, do not leave the
robot without completely tightening it (with the 4 screws completely tightened). One person
should continuously support the robot arm while the other person goes to get required parts.
Otherwise, the robot arm may tip, result in equipment damage or personal injury.

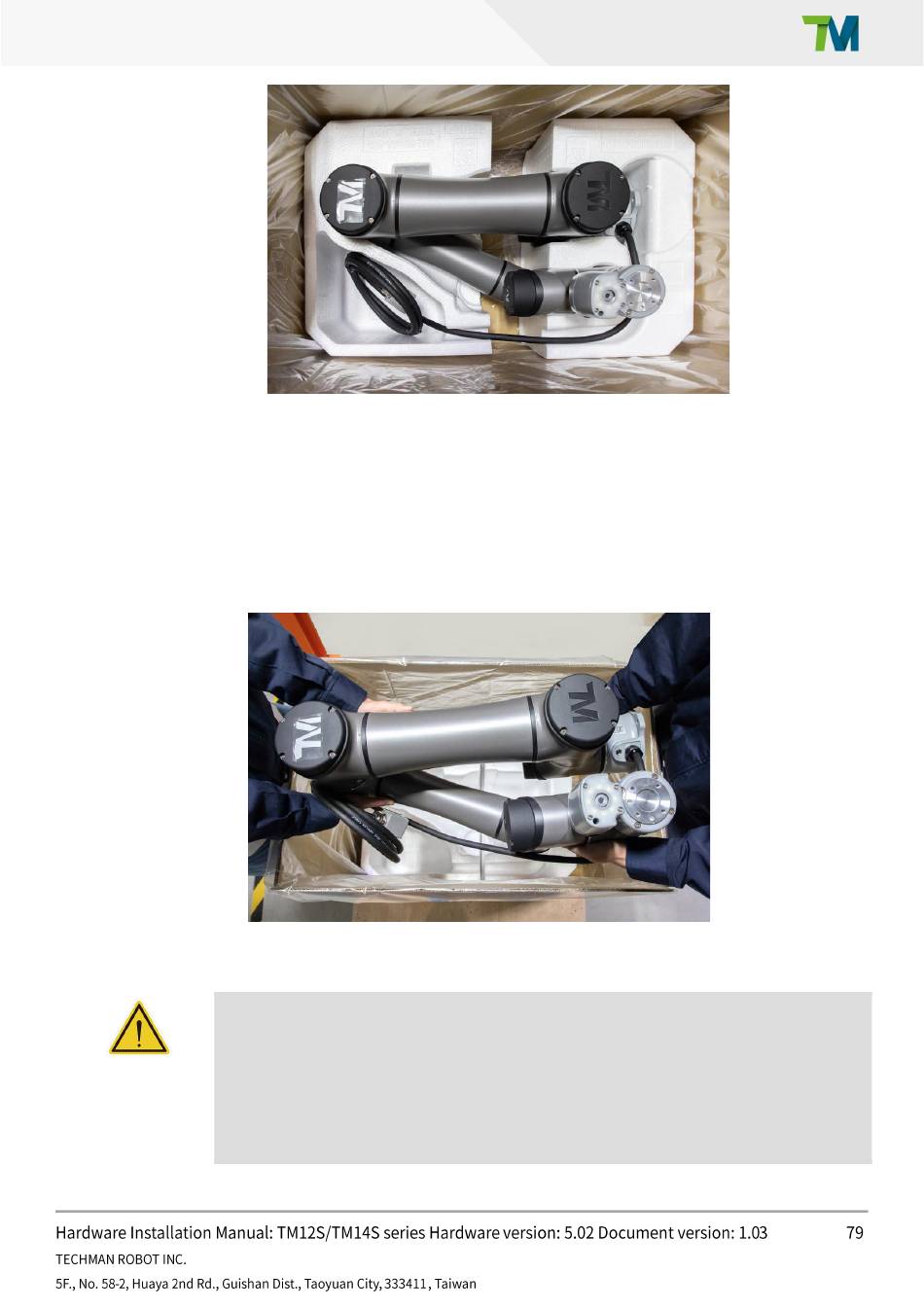

Figure 74: Moving the Robot Arm (1/2)
Figure 75: Moving the Robot Arm (2/2)
Joint as well as the
st
