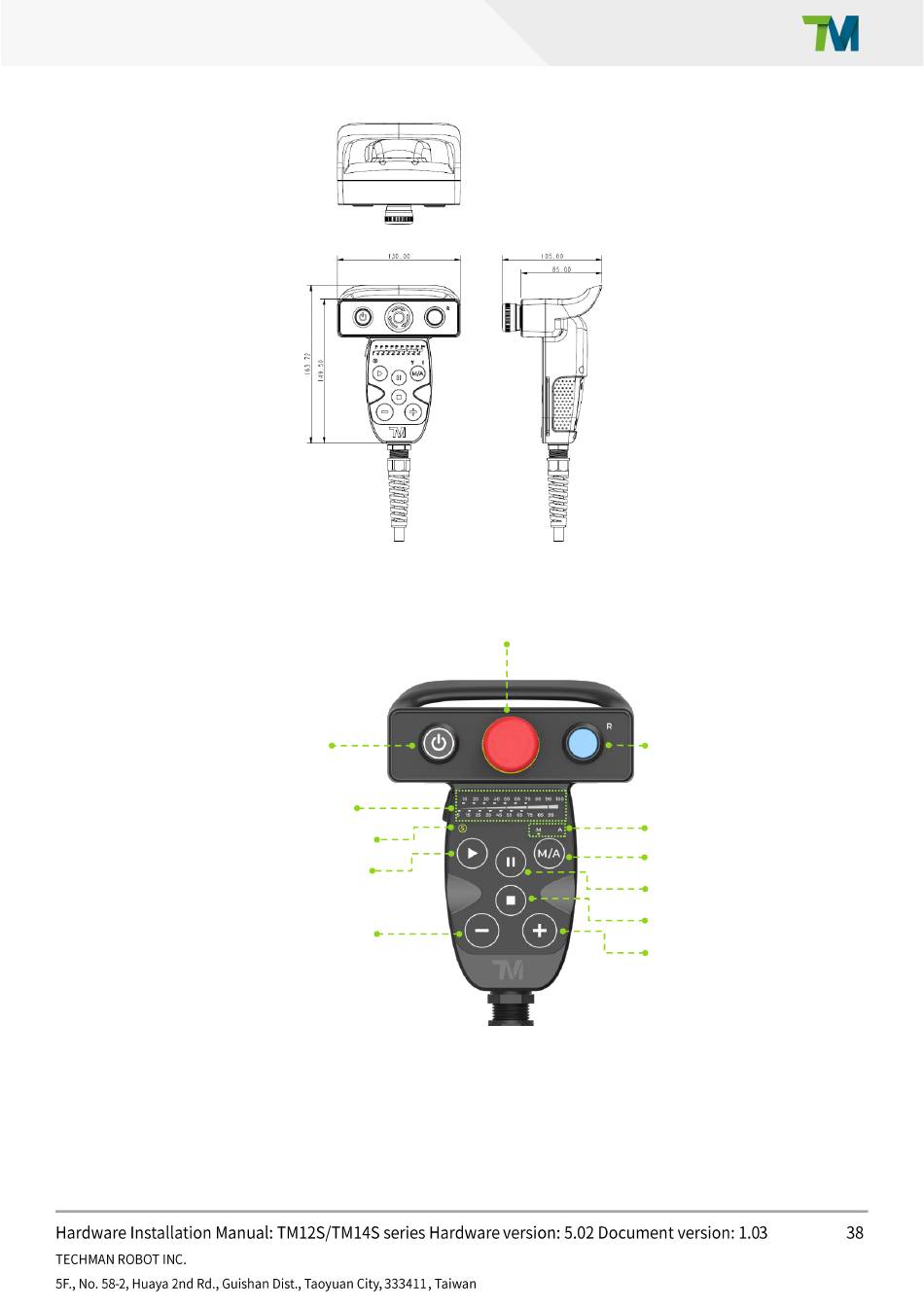

Figure 26: Dimensions of the Robot Stick

Emergency Stop Button

Power Button

Reset Button

Speed Indicator

MODE Indicator

Robot Stick Enable Indicator

M/A Button

Play Button

Pause Button

Stop Button

- Button

+ Button

Figure 27: Robot Stick (front)
