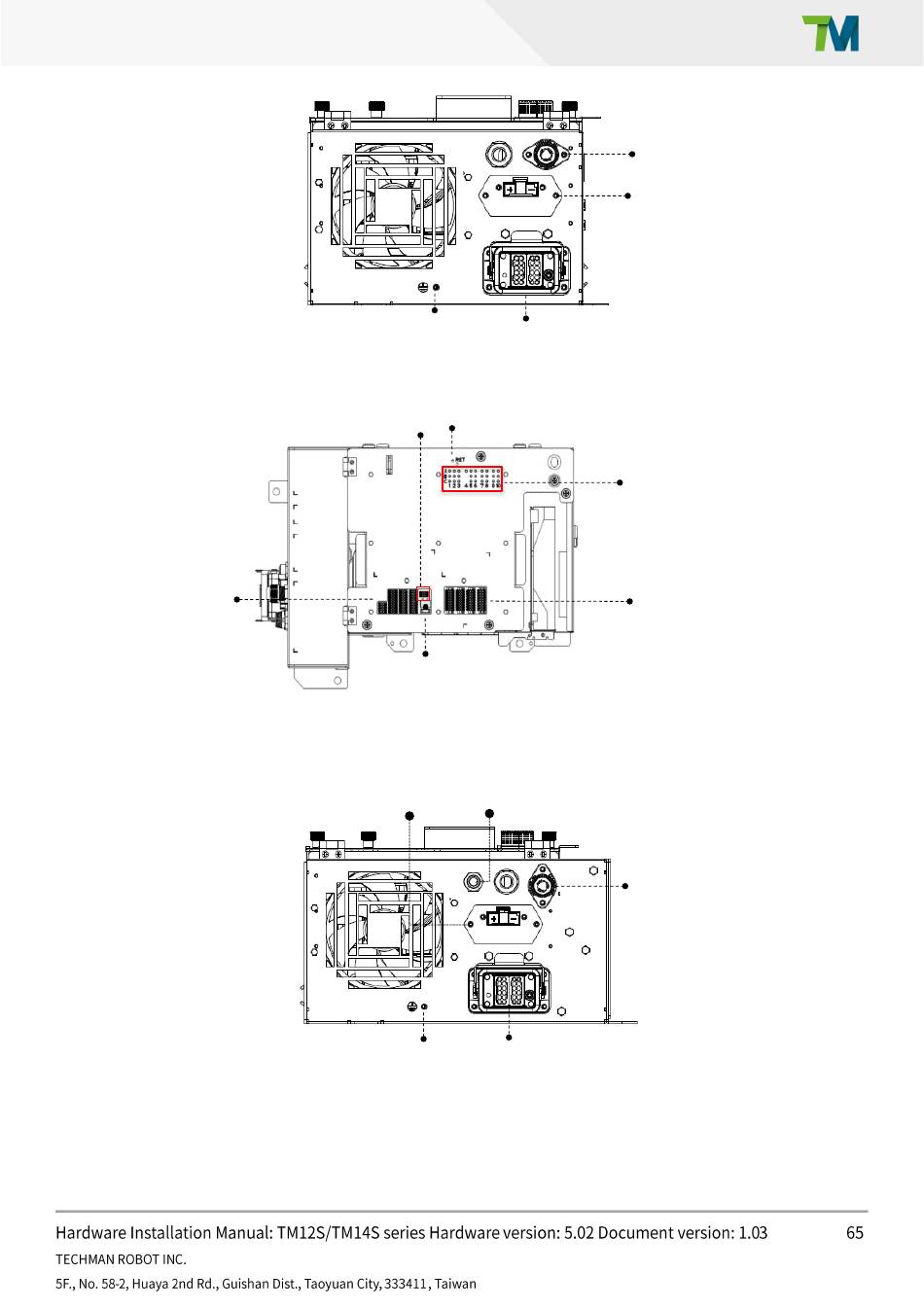

Figure 60: Side View Of The Control Box (Dc); Figure 61: Front View Of The Control Box (Dc Semi); Figure 62: Side View Of The Control Box (Dc Semi) - Techman Robot TM12S Series Hardware Installation Manual

Advertisement

Fuse holder
DC adapter
PE
Robot cable connector

Figure 60: Side View of the Control Box (DC)

SSD Reset
Power Remote ON/OFF
Robot Status Display
General I/O Interface
Safety I/O Interface
EtherCat

Figure 61: Front View of the Control Box (DC SEMI)

DC adapter
EMO connector
Fuse holder
PE
Robot cable connector

Figure 62: Side View of the Control Box (DC SEMI)
