About the Printer

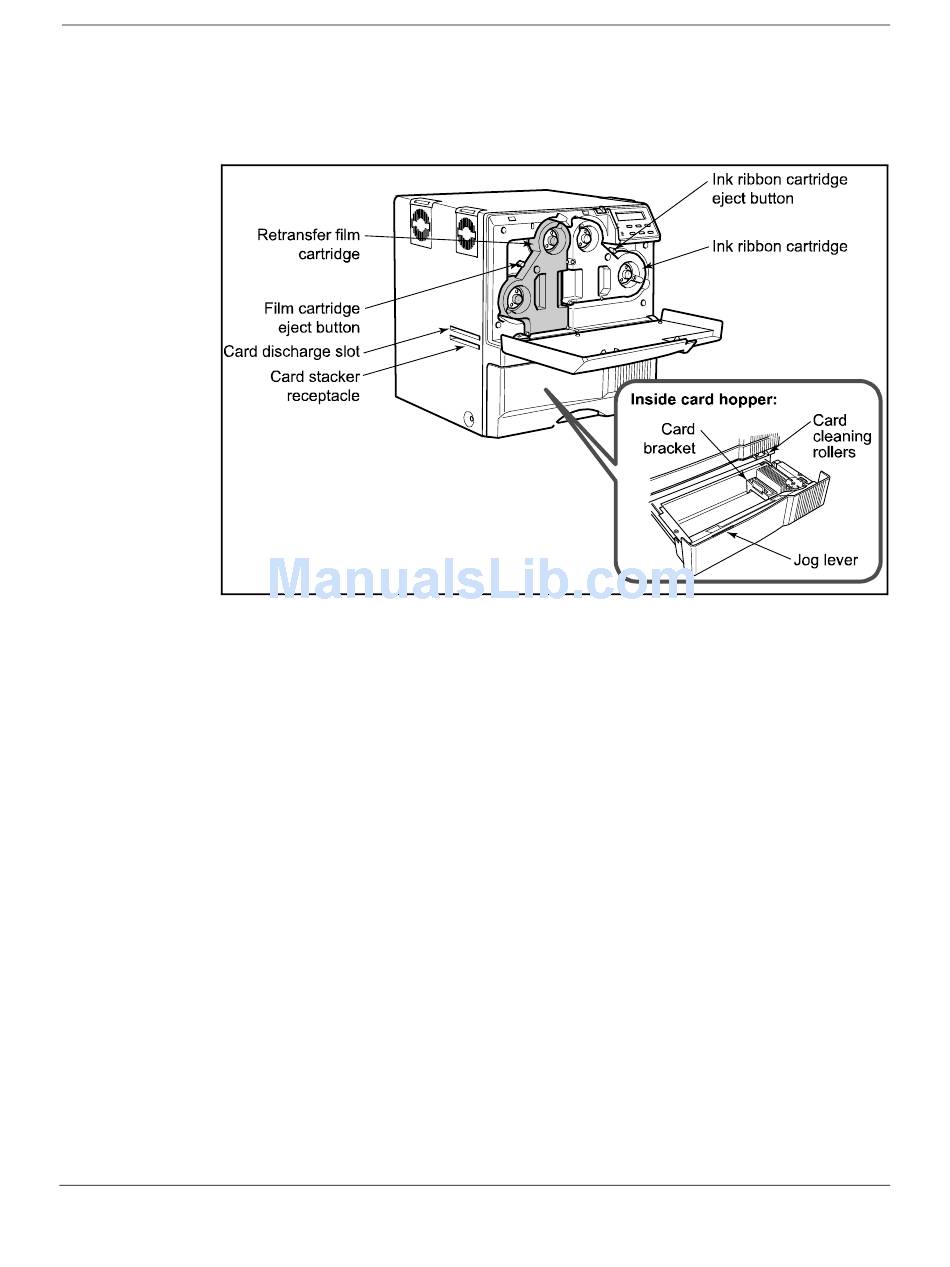

The inside of the printer

Retransfer film cartridge
Film cartridge eject button
Ink ribbon cartridge
Ribbon cartridge eject button Press to release and remove the ink ribbon cartridge.
Card discharge slot
Card stacker receptacle
Card cleaning rollers
Jog lever
Card bracket
RP90 Plus E and RL90 User Guide
Holds the retransfer film.
Press to release and remove the retransfer film cartridge.
Holds the ink ribbon.
Cards removed from the print area exit here. If the optional
RL90 laminator is installed, cards exit the printer and enter
the laminator here.
Attach the card stacker here.
Removes dust or debris from the cards before printing.
Used to turn the jog wheel when clearing a card jam.
Slide to the left to load cards and to the right to hold cards
in position.
