Load retransfer film

Tips: Handling retransfer film
Place the cartridge on a
•
smooth level surface when
loading or reloading.
Do not touch the printing
•
surface of the retransfer
film. (Oils on hands will
reduce printing quality.)
After powering on the
•
printer, the retransfer film
must be initialized. See
"Initialize the retransfer
film" on page 17
for more
information.
• Keep unused film in the
original package.
Don't place film on a dusty
•
or dirty surface — dirt can
affect print quality.
• When the retransfer film
has run out, "Media Run
Out" appears on the LCD
panel. After replacing it,
press the RESET key and
then the ENTER key to
initialize the film.
"Retransfer film" on
See
•
page 68
for more
information about retransfer
film.
10

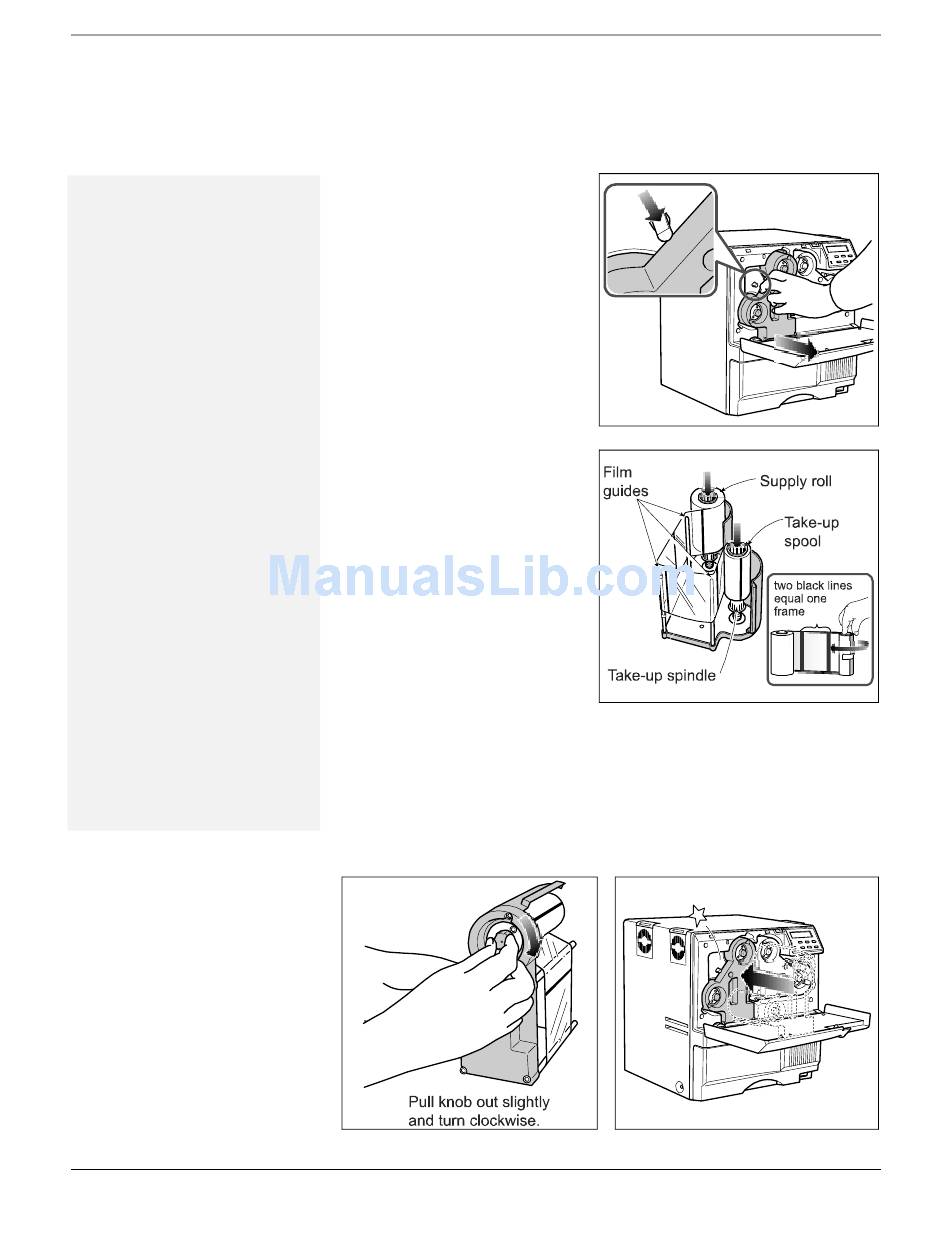

Slide the door latch to the right
1
and open the printer door.
Press the retransfer film
2
cartridge eject button to
remove the green cartridge.
Remove both used film spools
3
from the cartridge (if present).
Load the new roll of retransfer
4
film on the cartridge:
Put the full roll of film on
a
the green supply spindle
as shown.
Put the empty take-up
b
spool on the black take-up
spindle.
Align the retransfer film
c
along the three film guides.
Wind two frames of film
d
onto the take-up spool.
e Take up slack by turning
the supply knob clockwise.
The supply knob must be
pulled out slightly to turn. If
slack cannot be removed,
check that the supply and
take-up spools are firmly
seated on the spindles. To ease installation, the film must be tight
along the film guides. Turning the supply and take-up knobs will
help maintain the proper tension.
Replace the loaded retransfer film cartridge in the printer until it clicks
5
into position.
Close the printer door.
6
