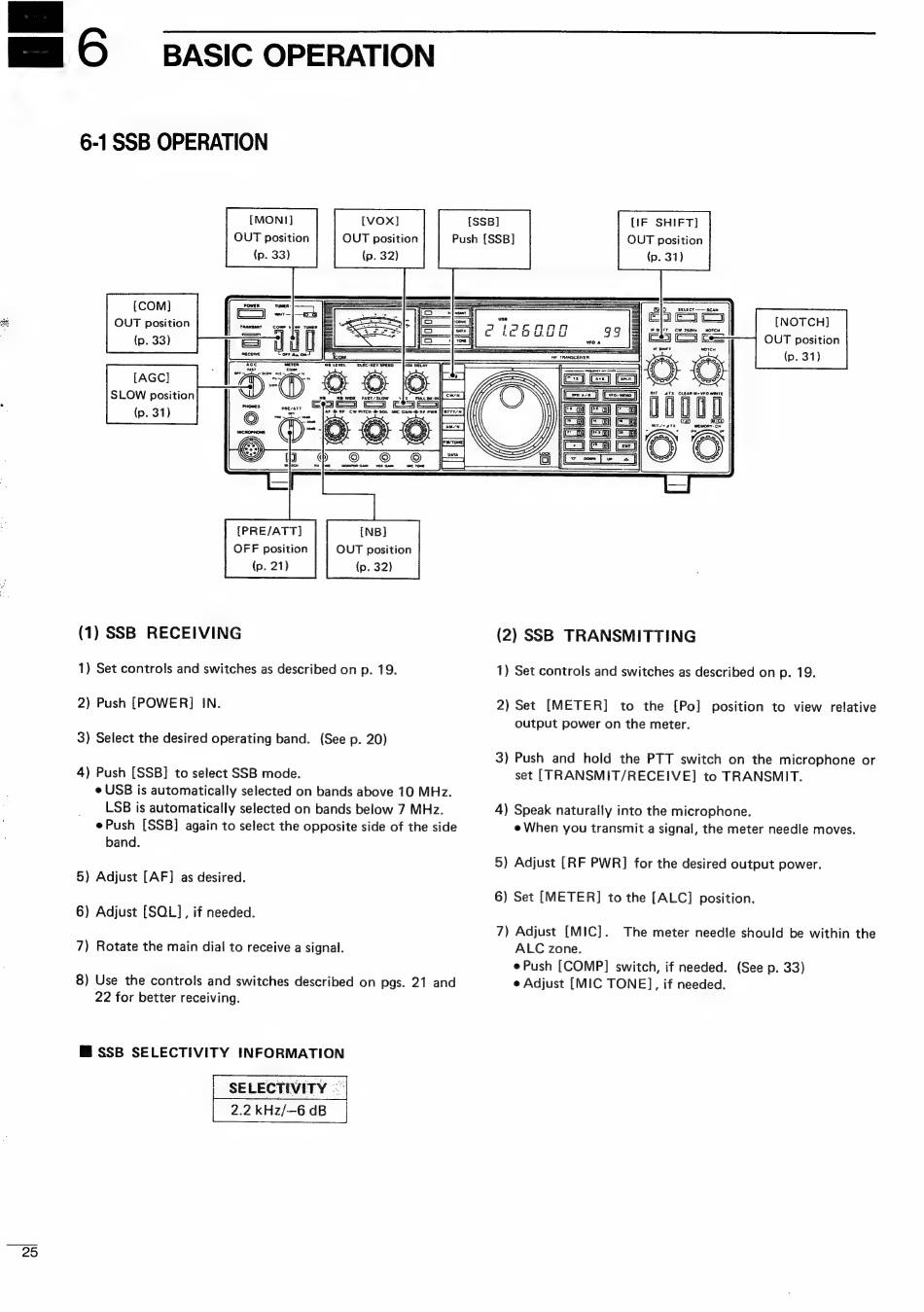

BASIC OPERATION
6-1 SSB OPERATION
[MONI]
OUT position
[VOX]
OUT position
[COM]
OUT position
(p. 33)
[SSB]
Push [SSB]
[IF SHIFT]
OUT position
[NOTCH]
OUT position
[AGC]
SLOW position
(p. 31)
[PRE/ATT]
OFF position
(p. 21)
OUT position
(p. 32)
(1) SSB RECEIVING
1) Set controls and switches as described on p. 19.
2) Push [POWER] IN.
3) Select the desired operating band. (See p. 20)
4) Push [SSB] to select SSB mode.
e USB is automatically selected on bands above 10 MHz.
LSB is automatically selected on bands below 7 MHz.
e Push [SSB] again to select the opposite side of the side
band.
5) Adjust [AF] as desired.
6) Adjust [SOL], if needed.
7) Rotate the main dial to receive a signal.
8) Use the controls and switches described on pgs. 21 and
22 for better receiving.
Ш SSB SELECTIVITY INFORMATION
_ SELECTIVITY `
2.2 kHz/—6 dB
(p. 31)
(2) SSB TRANSMITTING
1) Set controls and switches as described on p. 19.
2) Set [METER] to the [Po] position to view relative
output power on the meter.
3) Push and hold the PTT switch on the microphone or
set [TRANSMIT/RECEIVE] to TRANSMIT.
4) Speak naturally into the microphone.
e When you transmit a signal, the meter needle moves.
5) Adjust [RF PWR] for the desired output power.
6) Set [METER] to the [ALC] position.
7) Adjust [MIC].
ALC zone.
ePush [COMP] switch, if needed. (See p. 33)
e Adjust [MIC TONE], if needed.
The meter needle should be within the
