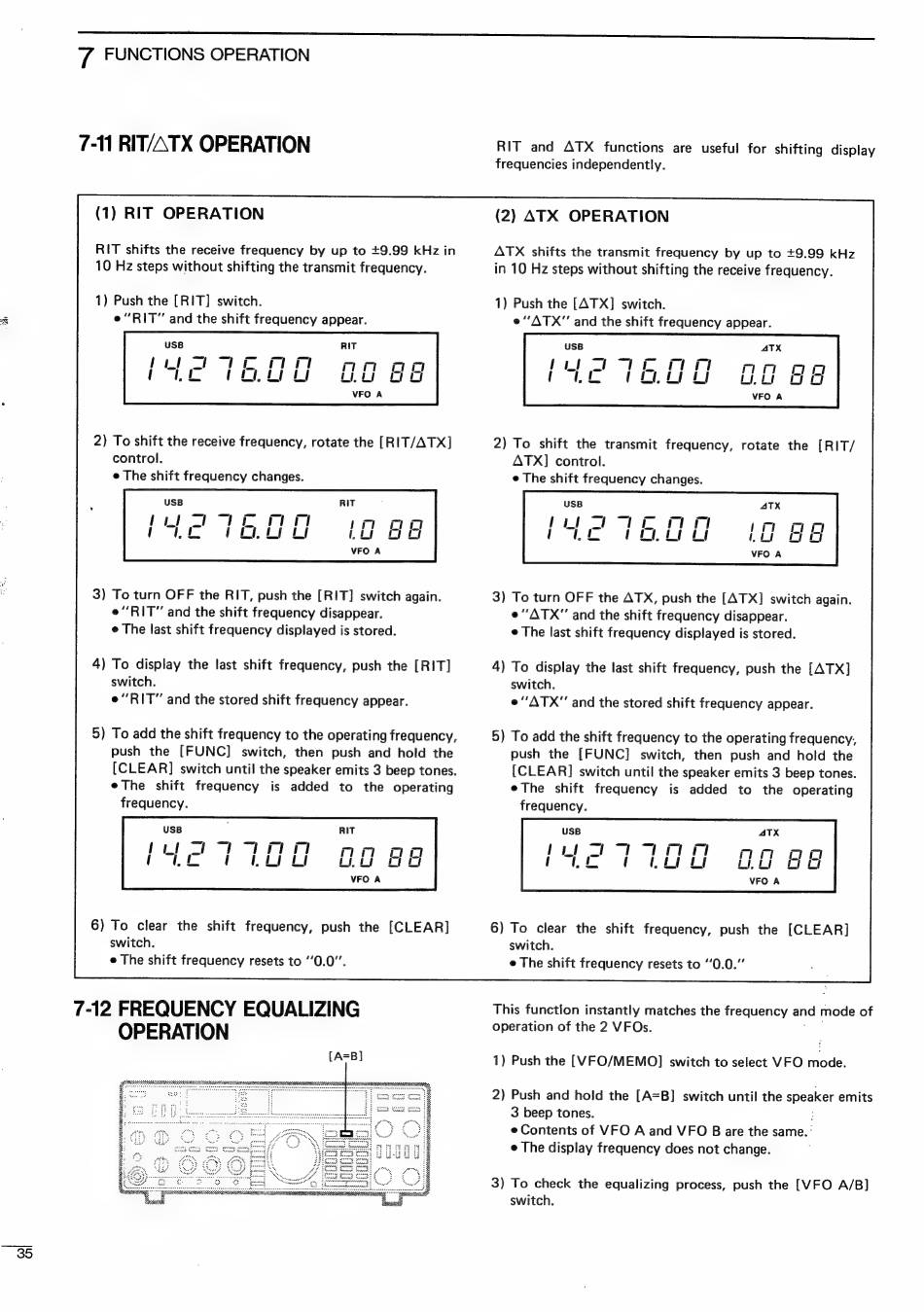

7-11 RIT/ATX OPERATION
(1) RIT OPERATION
RIT shifts the receive frequency by up to +9.99 kHz in
10 Hz steps without shifting the transmit frequency.
1) Push the [RIT] switch.
e "RIT" and the shift frequency appear.
2) To shift the receive frequency, rotate the [RIT/ATX]
control.
e The shift frequency changes.
3) To turn OFF the RIT, push the [RIT] switch again.
e "RIT" and the shift frequency disappear.
e The last shift frequency displayed is stored.
4) To display the last shift frequency, push the [RIT]
switch.
e "RIT" and the stored shift frequency appear.
5) To add the shift frequency to the operating frequency,
push the
[FUNC]
switch, then push and hold the
[CLEAR]
switch until the speaker emits 3 beep tones.
eThe
shift
frequency
is added
to
the
operating
frequency.
6) To clear the shift frequency, push the [CLEAR]
switch.
e The shift frequency resets to "0.0".
7-12 FREQUENCY EQUALIZING
OPERATION
[A=B]
(2) ATX
OPERATION
ATX
shifts the transmit frequency
by up to +9.99 kHz
in 10 Hz steps without shifting the receive frequency.
1) Push the [ATX] switch.
"АТХ"
and the shift frequency appear.
2) To
shift the transmit frequency,
rotate the
[RIT/
ATX] control.
e The shift frequency changes.
3) To turn OFF the ATX, push the [ATX] switch again.
"АТХ" and the shift frequency disappear.
e The last shift frequency displayed is stored.
4) To display the last shift frequency, push the [ATX]
switch.
e" ATX" and the stored shift frequency appear.
5) To add the shift frequency to the operating frequency,
push the
[FUNC]
switch,
then
push and hold the
[CLEAR]
switch until the speaker emits 3 beep tones.
eThe
shift
frequency
is added
to
the
operating
frequency.
6) To clear the shift frequency,
push the
[CLEAR]
switch.
e The shift frequency resets to "0.0."
This function instantly matches the frequency and mode of
operation of the 2 VFOs.
1) Push the [VFO/MEMO] switch to select VFO mode.
2) Push and hold the [A=B]
switch until the speaker emits
3 beep tones.
e Contents of VFO A and VFO B are the same.'
e The display frequency does not change.
