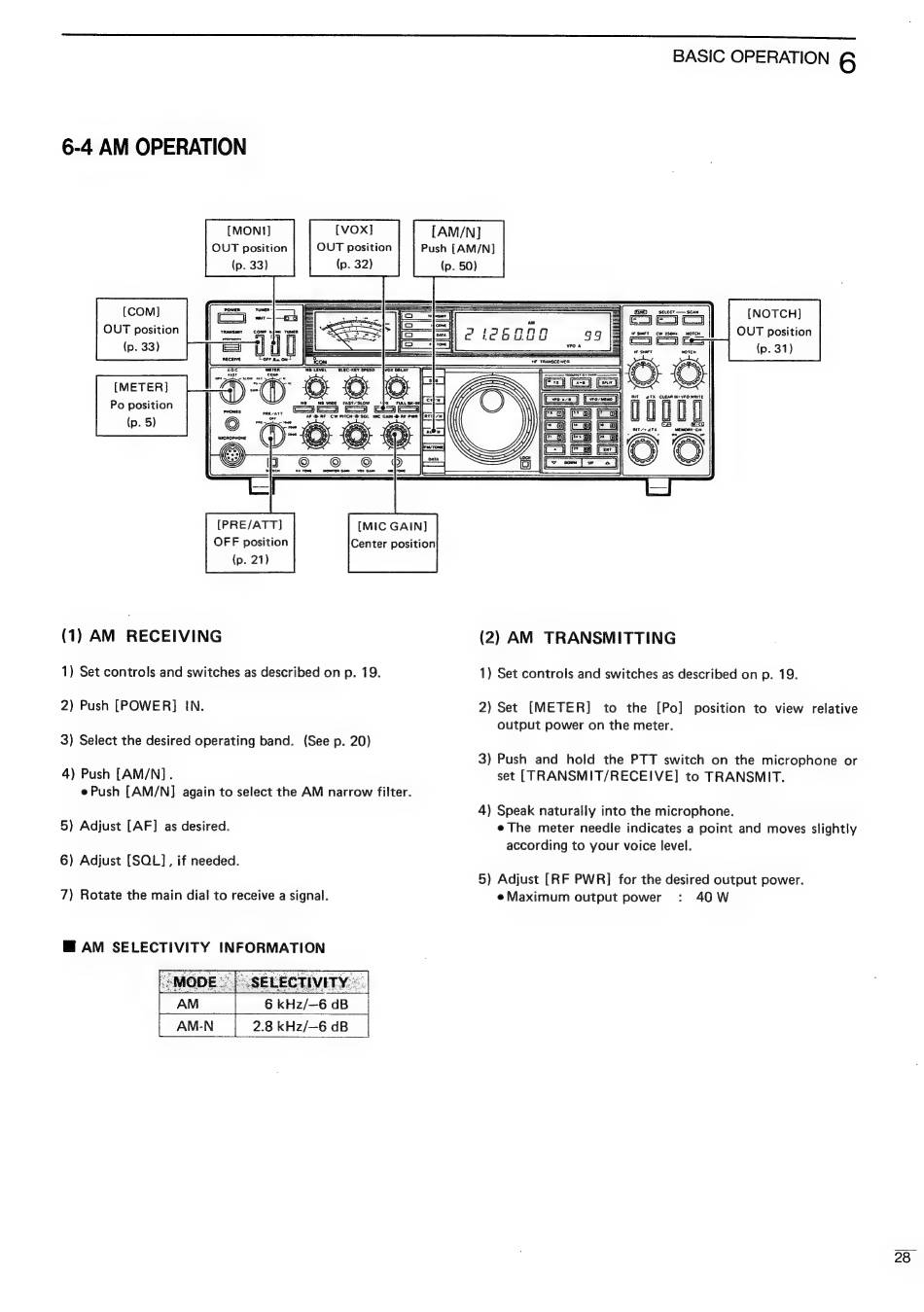

6-4 AM OPERATION
[MONI]
[VOX]
OUT position
OUT position
[COM]
OUT position
(p. 33)
[METER]
Po position
(p. 5)
[PRE/ATT]
OFF position
(p. 21)
[MIC GAIN]
Center position
(1) AM
RECEIVING
1) Set controls and switches as described on p. 19.
2) Push [POWER]
IN.
3) Select the desired operating band.
(See p. 20)
4) Push [AM/N].
e Push [AM/N]
again to select the AM narrow filter.
5) Adjust [AF] as desired.
6) Adjust [SQL], if needed.
7) Rotate the main dial to receive a signal.
Ш АМ SELECTIVITY
INFORMATION
2.8 kHz/—6 dB
[AM/N]
Push [AM/N]
BASIC OPERATION
6
[NOTCH]
OUT position
(p. 31)
(22 AM
TRANSMITTING
1) Set controls and switches as described on p. 19.
2)Set
[METER]
to the [Po]
position to view relative
output power on the meter.
3) Push
and
hold
the PTT switch on the microphone
or
set [TRANSMIT/RECEIVE]
to TRANSMIT.
4) Speak naturally into the microphone.
e The meter needle indicates a point and moves slightly
according to your voice level.
5) Adjust [RF PWR] for the desired output power.
e Maximum output power
:
40W
