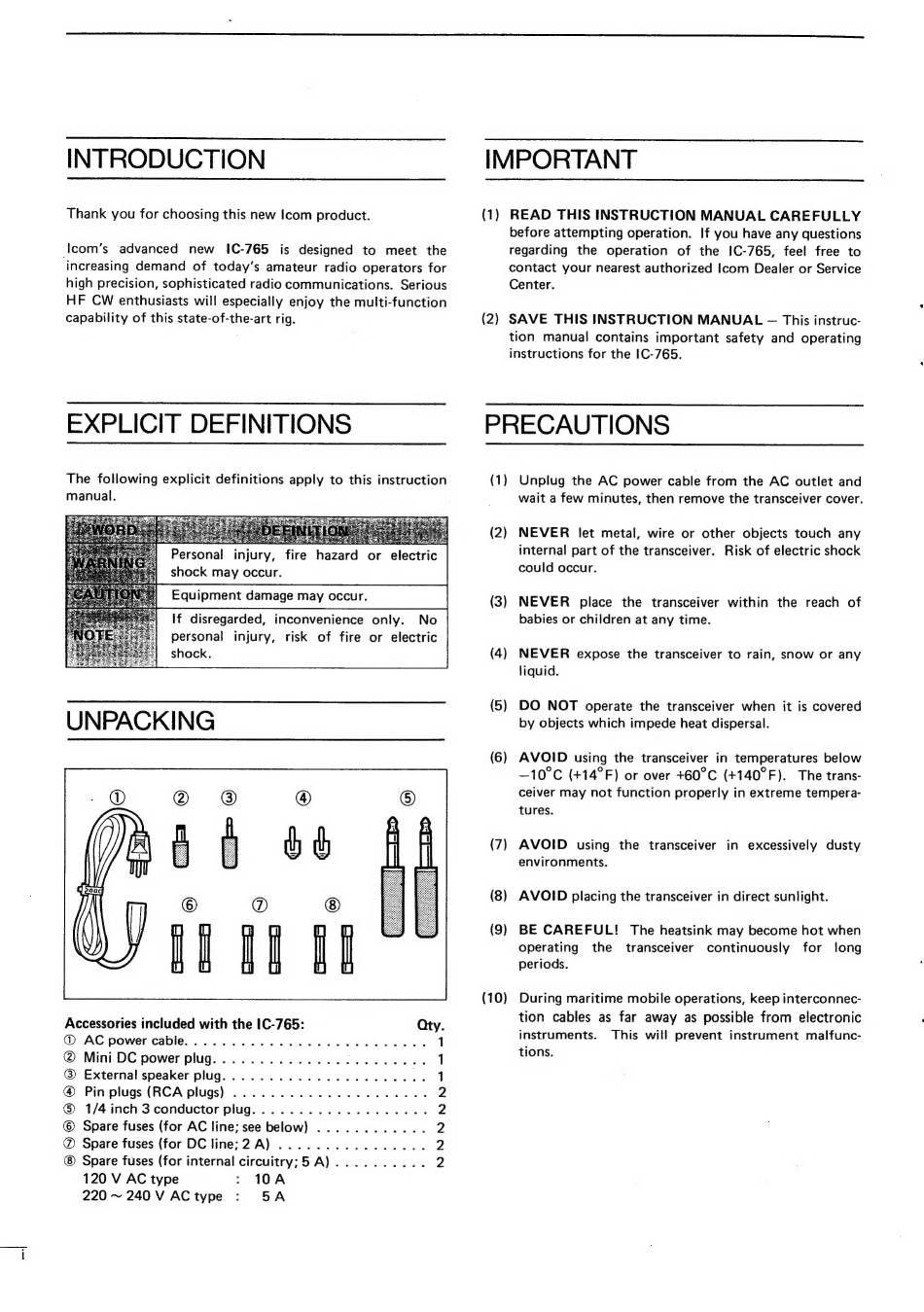

INTRODUCTION
Thank you for choosing this new Icom product.
lcom's
advanced
new
1C-765
is designed
to
meet
the
increasing demand
of today's amateur
radio operators for
high precision, sophisticated radio communications.
Serious
HF CW enthusiasts will especially enjoy the multi-function
capability of this state-of-the-art rig.
EXPLICIT DEFINITIONS
The following explicit definitions apply to this instruction
manual.
3 24
ІҒ disregarded,
inconvenience
only.
Мо
personal
injury,
risk of fire or electric
shock.
Accessories included with the IC-765:
Oty.
D AC power cable. .........................
1
© Mini DC power
plug. ......................
1
@ External speaker ріив....................
..
1
@
Pin plugs (RCA plugs) .....................
2
@
1/4 inch З conductorplug...................
2
© Spare fuses (for AC line; see below)
............
2
D Spare fuses (for DC ііпе;2А)................
2
Spare fuses (for internal circuitry;
b A) ...........
2
120 V AC type
:
10A
220—240V
ACtype
:
5A
IMPORTANT
(1) READ THIS INSTRUCTION MANUAL CAREFULLY
before attempting operation.
If you have any questions
regarding
the operation
of the IC-765,
feel free to
contact your nearest authorized Icom Dealer or Service
Center.
(2) SAVE THIS INSTRUCTION MANUAL — This instruc-
tion manual contains important safety and operating
instructions for the IC-765.
PRECAUTIONS
(1)
Unplug the AC power cable from the AC outlet and
wait a few minutes, then remove the transceiver cover.
(2)
NEVER
let metal, wire or other objects touch any
internal part of the transceiver.
Risk of electric shock
could occur.
(3) NEVER
place the transceiver
within
the reach of
babies or children at any time.
(4)
NEVER
expose the transceiver to rain, snow or any
liquid.
(5)
DO NOT
operate the transceiver when
it is covered
by objects which impede heat dispersal.
(6) AVOID
using the transceiver in temperatures below
—10°C (+14°F) or over +60°C (+140°F). The trans-
ceiver may not function properly in extreme tempera-
tures.
(7)
AVOID
using
the
transceiver
in excessively
dusty
environments.
(8) AVOID placing the transceiver in direct sunlight.
(9)
BE CAREFUL!
The heatsink may become hot when
operating
the
transceiver
continuously
for
long
periods.
(10)
During maritime mobile operations, keep interconnec-
tion cables as far away as possible from electronic
instruments.
This will prevent
instrument
malfunc-
tions.
