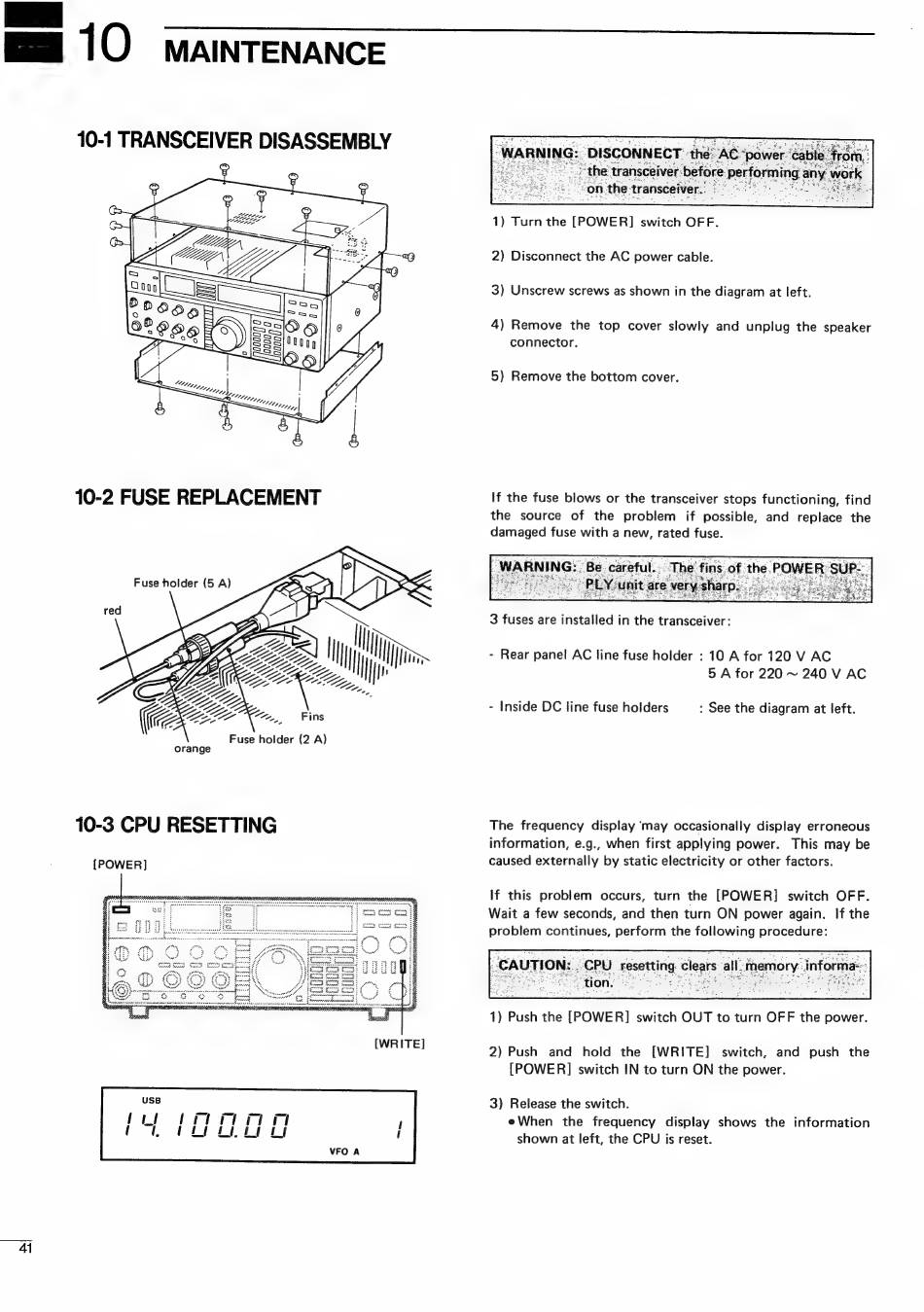

ШИШ 10 MAINTENANCE
10-1 TRANSCEIVER DISASSEMBLY
>
лл
22
2
#>
10-3 CPU RESETTING
[POWER]
[WRITE]
41
1) Turn the [POWER]
switch OFF.
2) Disconnect the AC power cable.
3) Unscrew screws as shown in the diagram at left.
4) Remove
the top cover slowly and unplug the speaker
connector.
5) Remove the bottom cover.
If the fuse blows or the transceiver stops functioning, find
the
source
of the
problem
if possible,
and
replace the
damaged fuse with a new, rated fuse.
3 fuses are installed in the transceiver:
- Rear panel AC line fuse holder : 10 A for 120 V AC
5 A for 220 ~ 240 V AC
- Inside DC line fuse holders
: See the diagram at left.
The frequency
display 'may occasionally display erroneous
information, e.g., when first applying power.
This may be
caused externally by static electricity or other factors.
If this problem
occurs, turn the [POWER]
switch OFF.
Wait a few seconds, and then turn ON power again.
If the
problem continues, perform the following procedure:
1) Push the [POWER]
switch OUT to turn OFF the power.
2) Push
and
hold
the
[WRITE]
switch,
and
push
the
[POWER]
switch IN to turn ON the power.
3) Release the switch.
eWhen
the
frequency
display shows
the information
shown at left, the CPU is reset.
