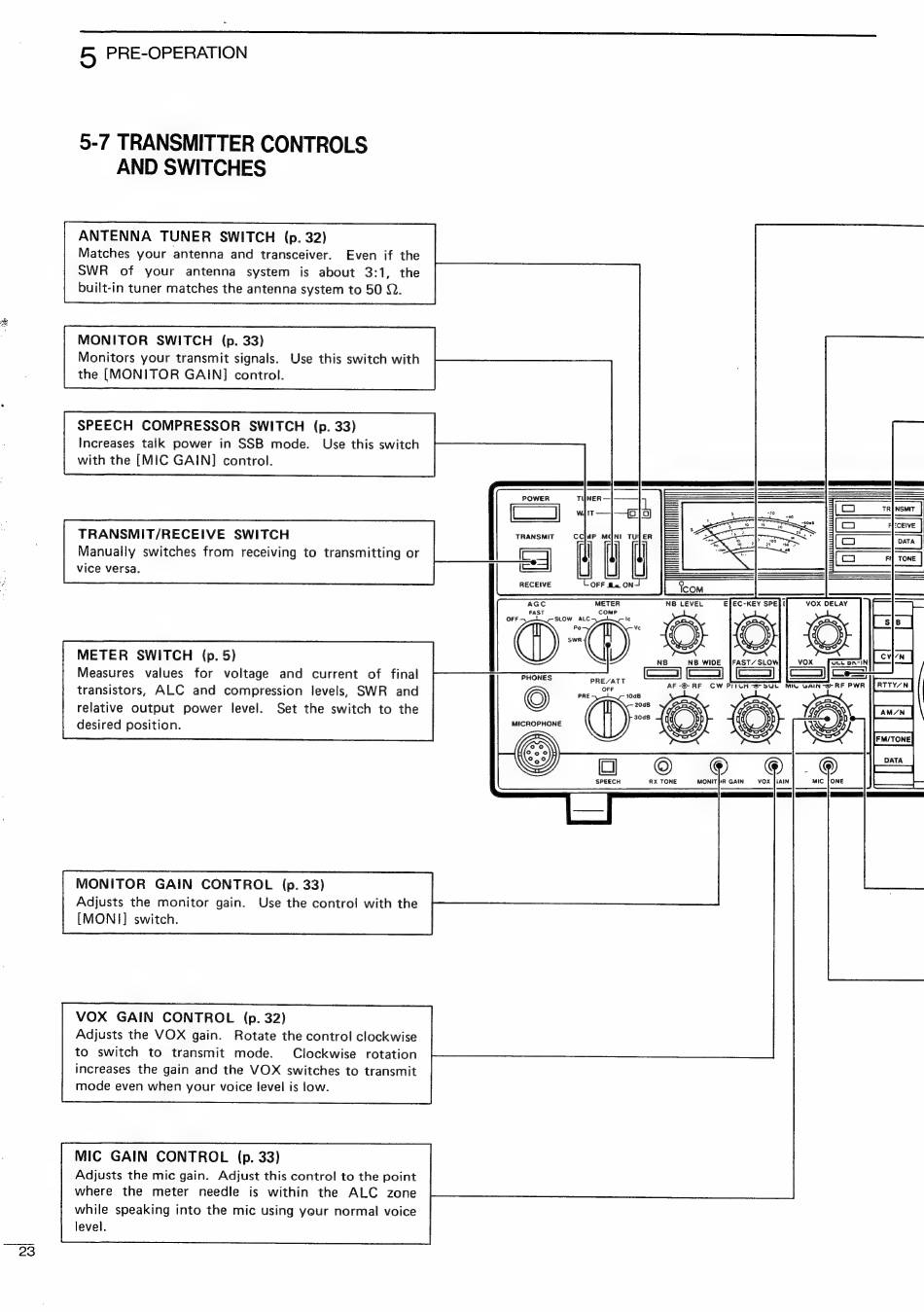

5 PRE-OPERATION
ANTENNA
TUNER
SWITCH
(р. 32)
Matches
your antenna and transceiver.
Even
if the
SWR
of
your
antenna
system
is about
3:1,
the
built-in tuner matches the antenna system to 50 Q.
MONITOR
SWITCH
(p. 33)
Monitors your transmit signals.
Use this switch with
the [MONITOR GAIN] control.
SPEECH
COMPRESSOR
SWITCH
(p. 33)
Increases talk power
in SSB
mode.
Use this switch
with the [MIC GAIN] control.
TRANSMIT/RECEIVE
SWITCH
Manually switches from receiving to transmitting or
vice versa.
TRANSMIT
METER
SWITCH
(p. 5)
Measures
values
for
voltage
and
current
of final
transistors,
ALC
and compression
levels, SWR
and
relative output
power
level.
Set the switch to the
desired position.
PHONES
PRE/ATT
FM/TONE
Бин
м/тоне)
ПАТА
Е]
MONITOR
GAIN
CONTROL
(p. 33)
Adjusts the monitor gain.
Use the contro! with the
[MONI]
switch.
VOX
GAIN
CONTROL
(p. 32)
Adjusts the VOX
gain.
Rotate the control clockwise
to switch
to transmit
mode.
Clockwise
rotation
increases the gain and the VOX
switches to transmit
mode even when your voice level is low.
MIC
GAIN
CONTROL
(p. 33)
Adjusts the mic gain.
Adjust this control to the point
where
the
meter
needle
is within
the
ALC
zone
while speaking into the mic using your normal voice
level.
