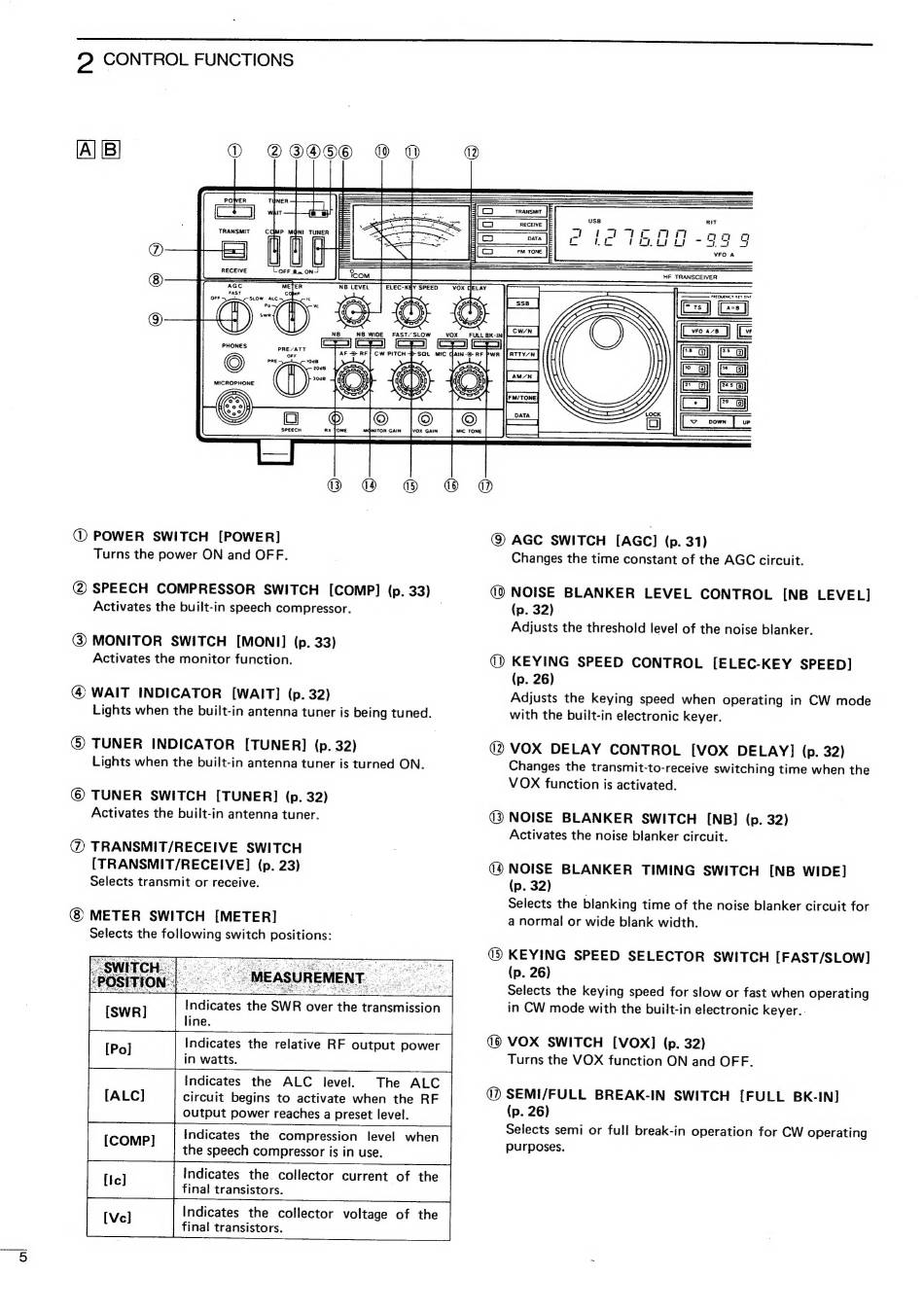

2 CONTROL FUNCTIONS
QO
2902906
D
à
©
©
4%
Q
@ POWER
SWITCH
[POWER]
Turns the power ON and OFF.
(8 MONITOR
SWITCH
[MONI]
(p. 33)
Activates the monitor function.
@ WAIT
INDICATOR
[WAIT]
(p. 32)
Lights when the built-in antenna tuner is being tuned.
(6 TUNER
SWITCH
[TUNER]
(p. 32)
Activates the built-in antenna tuner.
(7 TRANSMIT/RECEIVE
SWITCH
[TRANSMIT/RECEIVE]
(p. 23)
Selects transmit or receive.
@ METER SWITCH [METER]
Selects the following switch positions:
Indicates the SWR over the transmission
Indicates the relative RF output power
Indicates
the
ALC
level.
The
ALC
circuit begins to activate when
the RF
output power reaches a preset level.
Indicates
the collector
current
of the
final transistors.
Indicates
the collector
voltage of the
final transistors.
