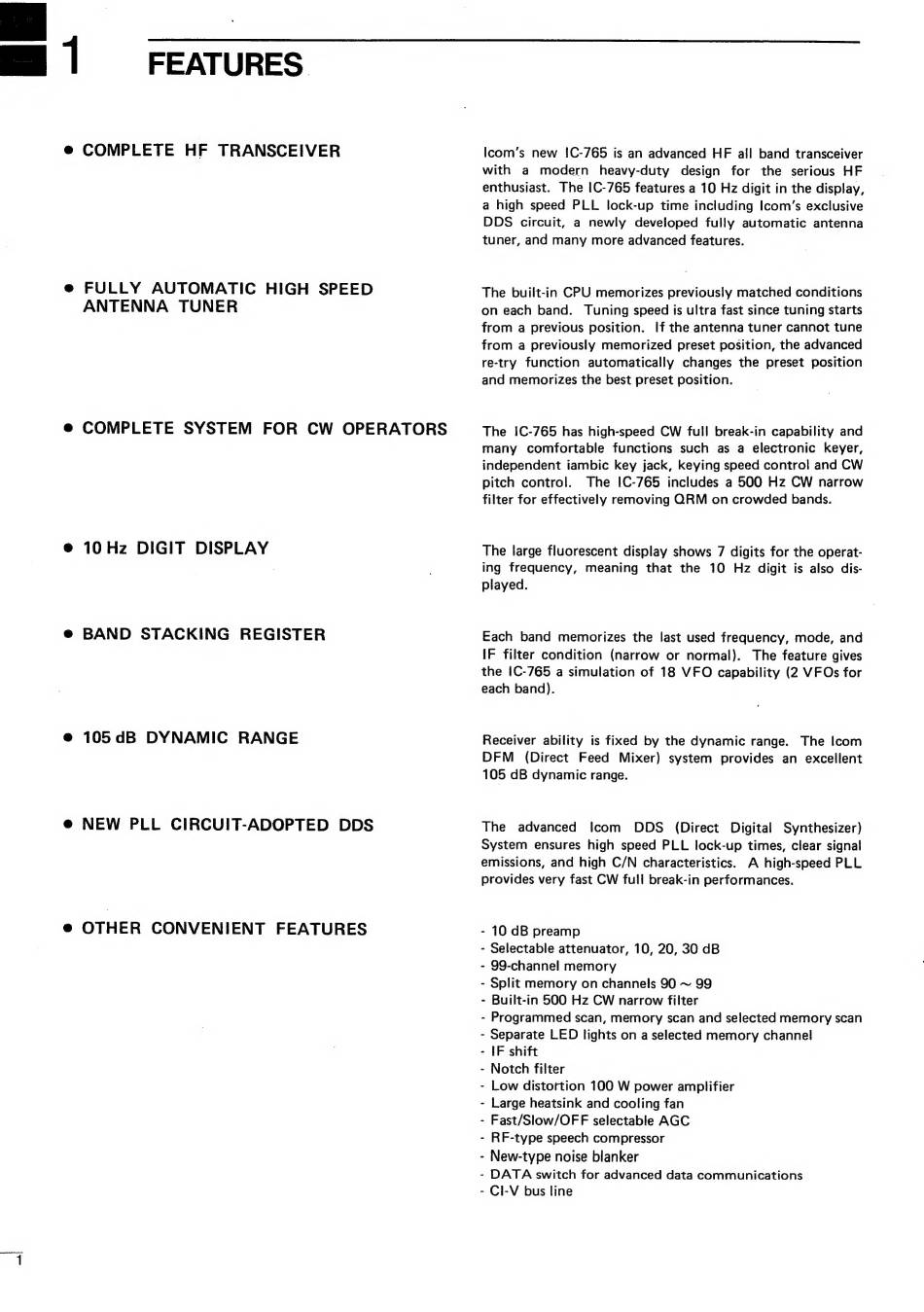

FEATURES
COMPLETE HF TRANSCEIVER
FULLY AUTOMATIC HIGH SPEED
ANTENNA TUNER
COMPLETE SYSTEM FOR CW OPERATORS
10 Hz DIGIT DISPLAY
BAND STACKING REGISTER
105 dB DYNAMIC RANGE
NEW PLL CIRCUIT-ADOPTED DDS
OTHER CONVENIENT FEATURES
Icom's new ІС-765 is an advanced HF all band transceiver
with a modern heavy-duty design for the serious HF
enthusiast. Тһе IC-765 features a 10 Hz digit in the display,
a high speed PLL lock-up time including Icom's exclusive
DDS circuit, a newly developed fully automatic antenna
tuner, and many more advanced features.
The built-in CPU memorizes previously matched conditions
on each band. Tuning speed is ultra fast since tuning starts
from a previous position. If the antenna tuner cannot tune
from a previously memorized preset position, the advanced
re-try function automatically changes the preset position
and memorizes the best preset position.
The IC-765 has high-speed CW full break-in capability and
many comfortable functions such as a electronic keyer,
independent iambic key jack, keying speed control and CW
pitch control. The IC-765 includes a 500 Hz CW narrow
filter for effectively removing QRM on crowded bands.
The large fluorescent display shows 7 digits for the operat-
ing frequency, meaning that the 10 Hz digit is also dis-
played.
Each band memorizes the last used frequency, mode, and
IF filter condition (narrow or normal). The feature gives
the ІС-765 a simulation of 18 VFO capability (2 VFOs for
each band).
Receiver ability is fixed by the dynamic range. The Icom
DFM (Direct Feed Mixer) system provides an excellent
105 dB dynamic range.
The advanced Icom DDS (Direct Digital Synthesizer)
System ensures high speed PLL lock-up times, clear signal
emissions, and high C/N characteristics. A high-speed PLL
provides very fast CW full break-in performances.
- 10 dB preamp
- Selectable attenuator, 10, 20, 30 dB
- 99-channel memory
- Split memory on channels 90 ~ 99
- Built-in 500 Hz CW narrow filter
- Programmed scan, memory scan and selected memory scan
- Separate LED lights on a selected memory channel
- IF shift
- Notch filter
- Low distortion 100 W power amplifier
- Large heatsink and cooling fan
- Fast/Slow/OFF selectable AGC
- RF-type speech compressor
- New-type noise blanker
- DATA switch for advanced data communications
- CI-V bus line
