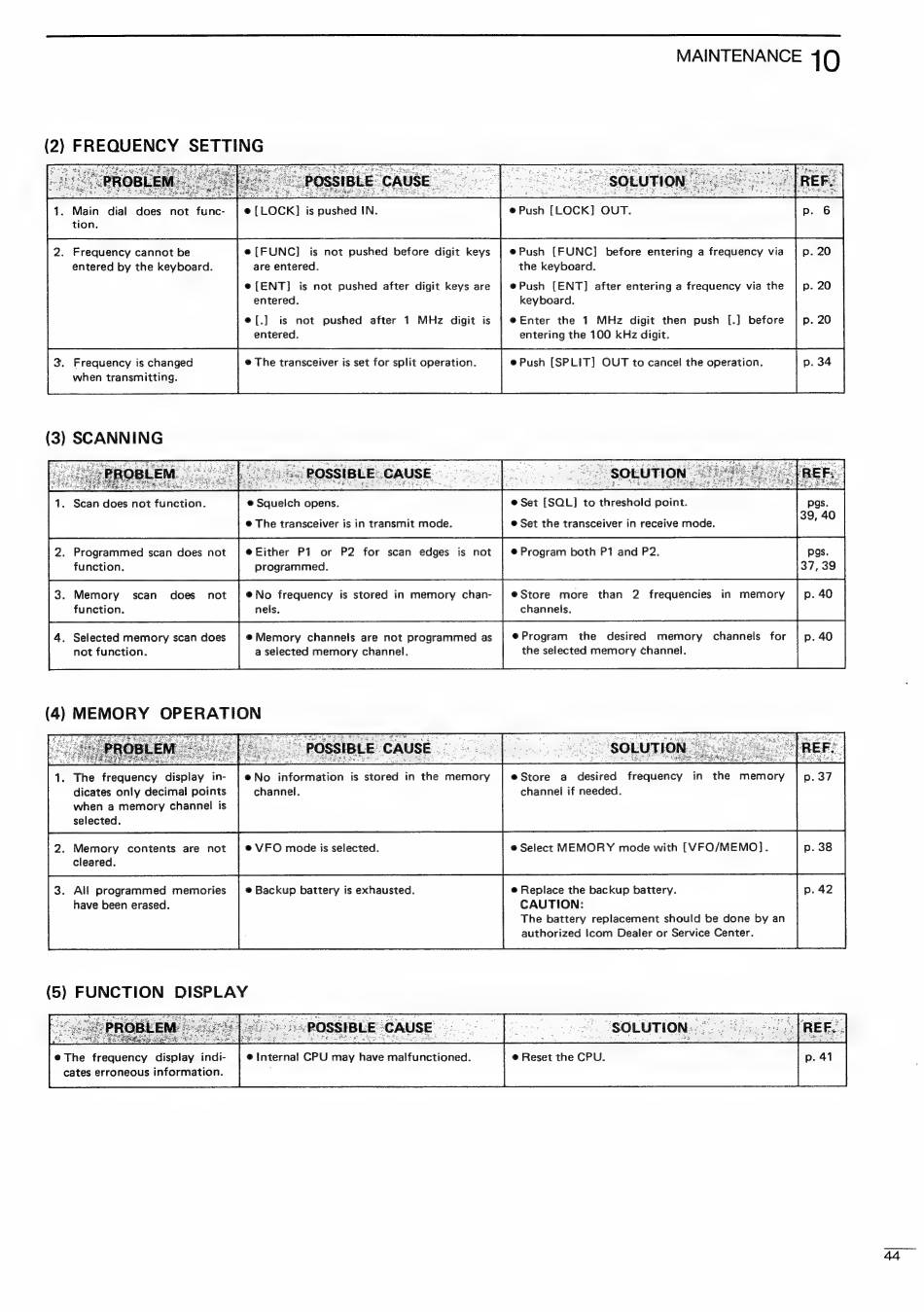

(2) FREQUENCY SETTING
MAINTENANCE 1 O
1. Main dial does not func- | e[LOCK] is pushed ІМ. e Push [LOCK] OUT. g
tion.
e[FUNC] is not pushed before digit keys
are entered.
2. Frequency cannot be
entered by the keyboard.
€ [ENT] is not pushed after digit keys аге
entered.
ө [.] is not pushed after 1 MHz digit is
entered.
3. Frequency is changed
when transmitting.
€ The transceiver is set for split operation.
(3) SCANNING
. Scan does not function. e Squelch opens.
e The transceiver is in transmit mode.
e Either P1 or P2 for scan edges is not
programmed.
. Programmed scan does not
function.
. Memory scan does not | €No frequency is stored in memory chan-
function. nels.
. Selected memory scan does
not function.
@ Memory channels are not programmed as
a selected memory channel.
(4) MEMORY OPERATION
e No information is stored іп the memory
channel.
1. The frequency display in-
dicates only decimal points
when a memory channel is
selected.
2. Memory contents are not | € VFO mode is selected.
cleared.
3. All programmed memories | € Backup battery is exhausted.
have been erased.
(5) FUNCTION DISPLAY
€ The frequency display indi-
cates erroneous information.
ө Internal CPU may have malfunctioned.
€ Push [FUNC] before entering a frequency via
the keyboard.
e Push [ENT] after entering a frequency via the
keyboard.
e Enter the 1 MHz digit then push [.] before
entering the 100 kHz digit.
e Push [SPLIT] OUT to cancel the operation.
€ Set [SOL] to threshold point.
€ Set the transceiver in receive mode.
€ Program both P1 and P2.
eStore more than 2 frequencies in memory
channels.
eProgram the desired memory channels for
the selected memory channel.
eStore a desired frequency in the memory
channel if needed.
e Select MEMORY mode with [VFO/MEMO].
e Replace the backup battery.
CAUTION:
The battery replacement should be done by an
authorized Icom Dealer or Service Center.
e Reset the CPU.
