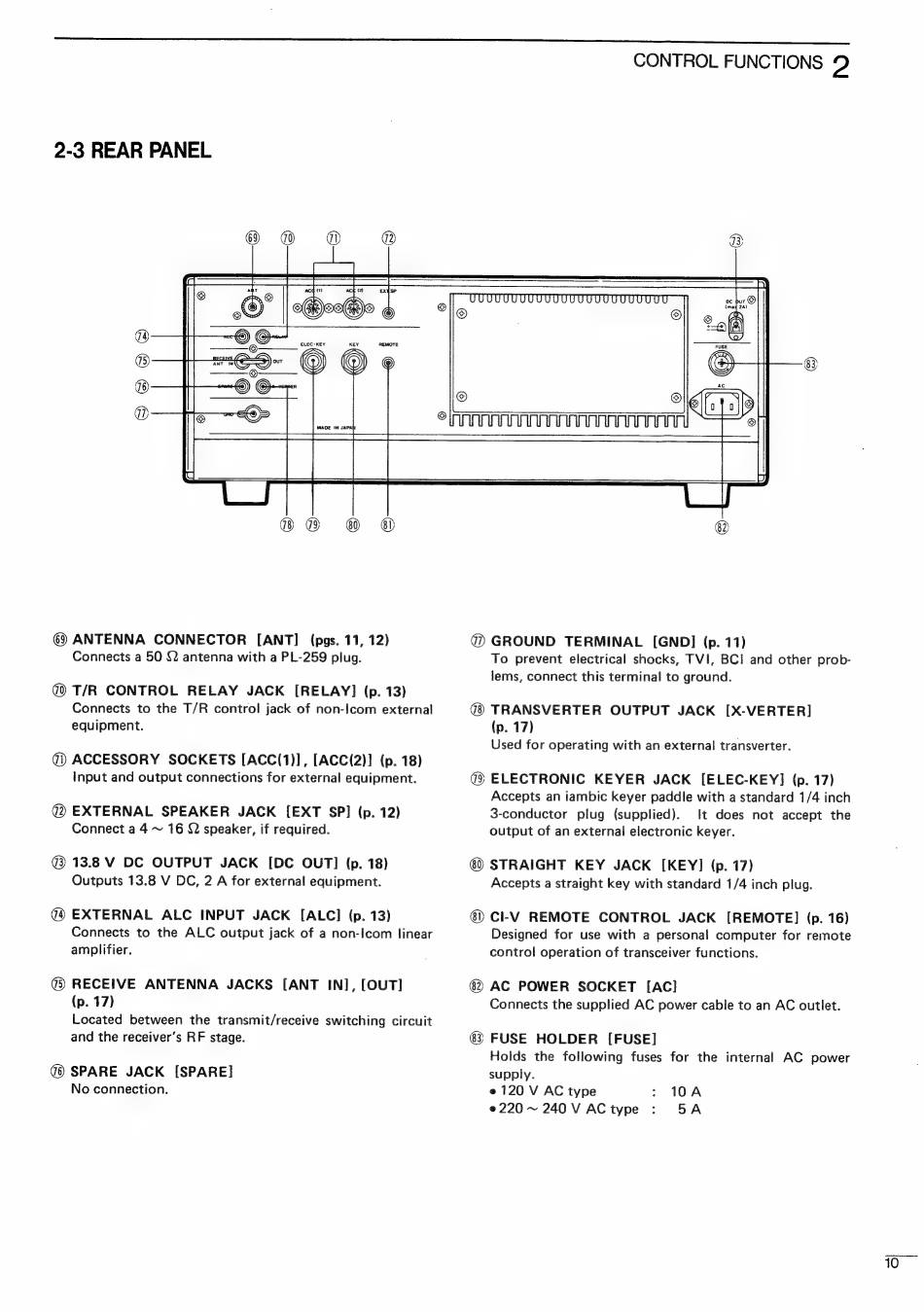

2-3 REAR PANEL
© Ө
ANTENNA CONNECTOR [ANT] (pgs. 11, 12)
Connects a 50 Q antenna with a PL-259 plug.
T/R CONTROL RELAY JACK [RELAY] (p. 13)
Connects to the T/R control jack of non-Icom external
equipment.
07 ACCESSORY SOCKETS [ACC(1)], [ACC(2)] (p. 18)
Input and output connections for external equipment.
(2 EXTERNAL SPEAKER JACK [EXT SP] (p. 12)
Connect a 4 — 16 (2 speaker, if required.
(3 13.8 V DC OUTPUT JACK [DC OUT] (p. 18)
Outputs 13.8 V DC, 2 A for external equipment.
EXTERNAL ALC INPUT JACK [ALC] (p. 13)
Connects to the ALC output jack of a non-Icom linear
amplifier.
@ RECEIVE ANTENNA JACKS [ANT IN], [OUT]
(p. 17)
Located between the transmit/receive switching circuit
and the receiver's RF stage.
SPARE JACK [SPARE]
No connection.
CONTROL FUNCTIONS 2
6
@ GROUND TERMINAL [GND] (p. 11)
To prevent electrical shocks, ТУІ, ВСІ and other prob-
lems, connect this terminal to ground.
0% TRANSVERTER OUTPUT JACK [X-VERTER]
(p. 17)
Used for operating with an external transverter.
($ ELECTRONIC KEYER JACK [ELEC-KEY] (p. 17)
Accepts an iambic keyer paddle with a standard 1/4 inch
3-conductor plug (supplied). It does not accept the
output of an external electronic keyer.
STRAIGHT KEY JACK [KEY] (p. 17)
Accepts a straight key with standard 1/4 inch plug.
9) CI-V REMOTE CONTROL JACK [REMOTE] (p. 16)
Designed for use with a personal computer for remote
control operation of transceiver functions.
@ AC POWER SOCKET [AC]
Connects the supplied AC power cable to an AC outlet.
6$ FUSE HOLDER [FUSE]
Holds the following fuses for the internal AC power
supply.
e 120 V AC type : 10A
e220 ~ 240 V AC type : БА
