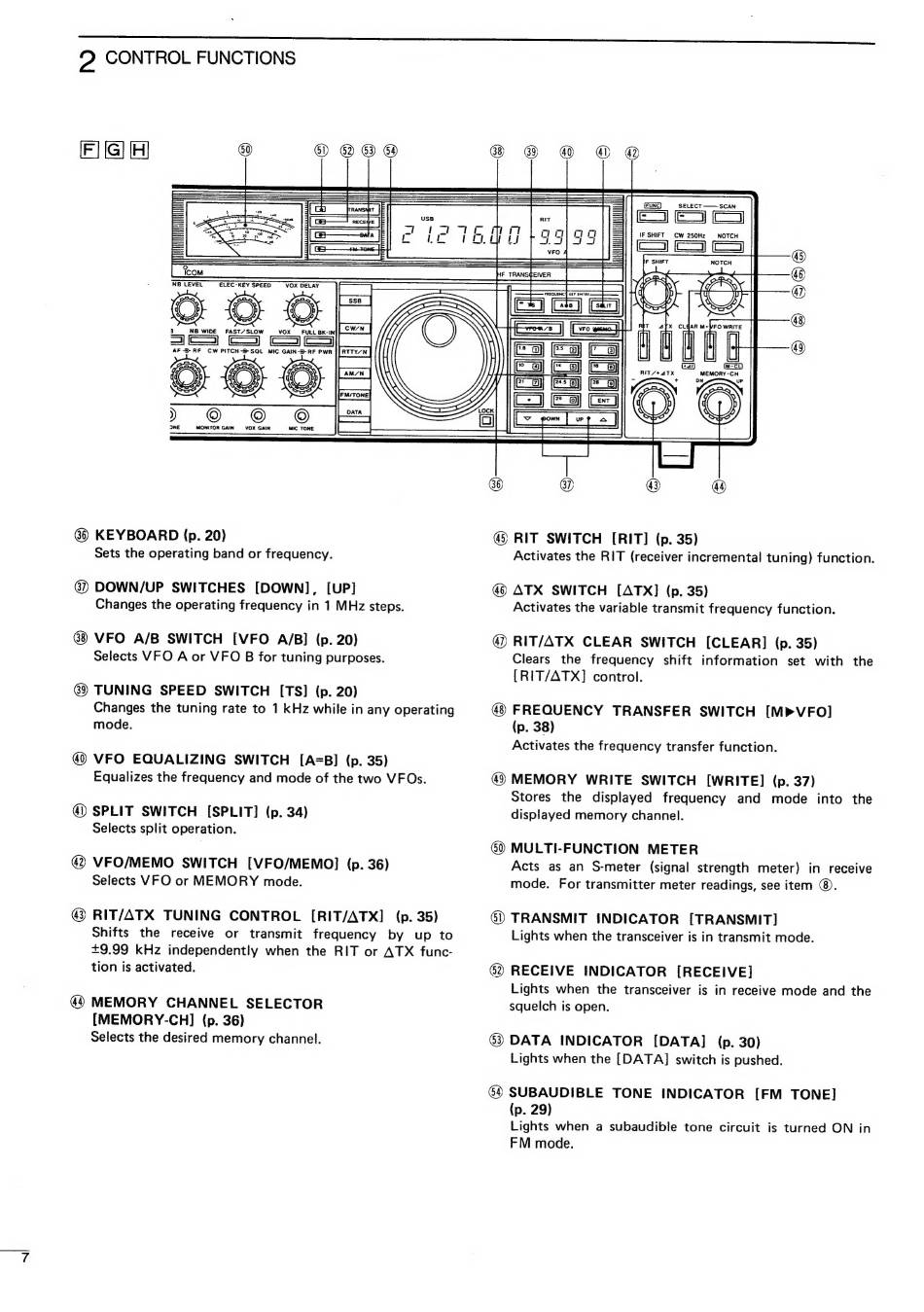

Icom IC -765 Instruction Manual page 10

2 CONTROL FUNCTIONS
6) & 69 6%
NB LEVEL ELEC-KEY SPEED VOX DELAY
ЭМЕ MONITOR GAIN VOX GAIN
KEYBOARD (p. 20)
Sets the operating band or frequency.
9) DOWN/UP SWITCHES [DOWN], [UP]
Changes the operating frequency in 1 MHz steps.
VFO А/В SWITCH [VFO А/В] (p. 20)
Selects VFO A or VFO B for tuning purposes.
TUNING SPEED SWITCH [TS] (p. 20)
Changes the tuning rate to 1 kHz while in any operating
mode.
VFO EQUALIZING SWITCH [A-B] (p. 35)
Equalizes the frequency and mode of the two VFOs.
SPLIT SWITCH [SPLIT] (p. 34)
Selects split operation.
VFO/MEMO SWITCH [VFO/MEMO] (p. 36)
Selects VFO or MEMORY mode.
MEMORY CHANNEL SELECTOR
[MEMORY-CH] (p. 36)
Selects the desired memory channel.
Gb © 49 4v» Q
FUNC SELECT —— SCAN
IF SHIFT CW 250Hz — NOTCH
9606
© ©
@ RIT SWITCH [RIT] (p. 35)
Activates the RIT (receiver incremental tuning) function.
ATX SWITCH [ATX] (p. 35)
Activates the variable transmit frequency function.
MULTI-FUNCTION METER
Acts as an S-meter (signal strength meter) in receive
mode. For transmitter meter readings, see item (8).
6) TRANSMIT INDICATOR [TRANSMIT]
Lights when the transceiver is in transmit mode.
62 RECEIVE INDICATOR [RECEIVE]
Lights when the transceiver is in receive mode and the
squelch is open.
6) SUBAUDIBLE TONE INDICATOR [FM TONE]
(p. 29)
Lights when a subaudible tone circuit is turned ON in
FM mode.
