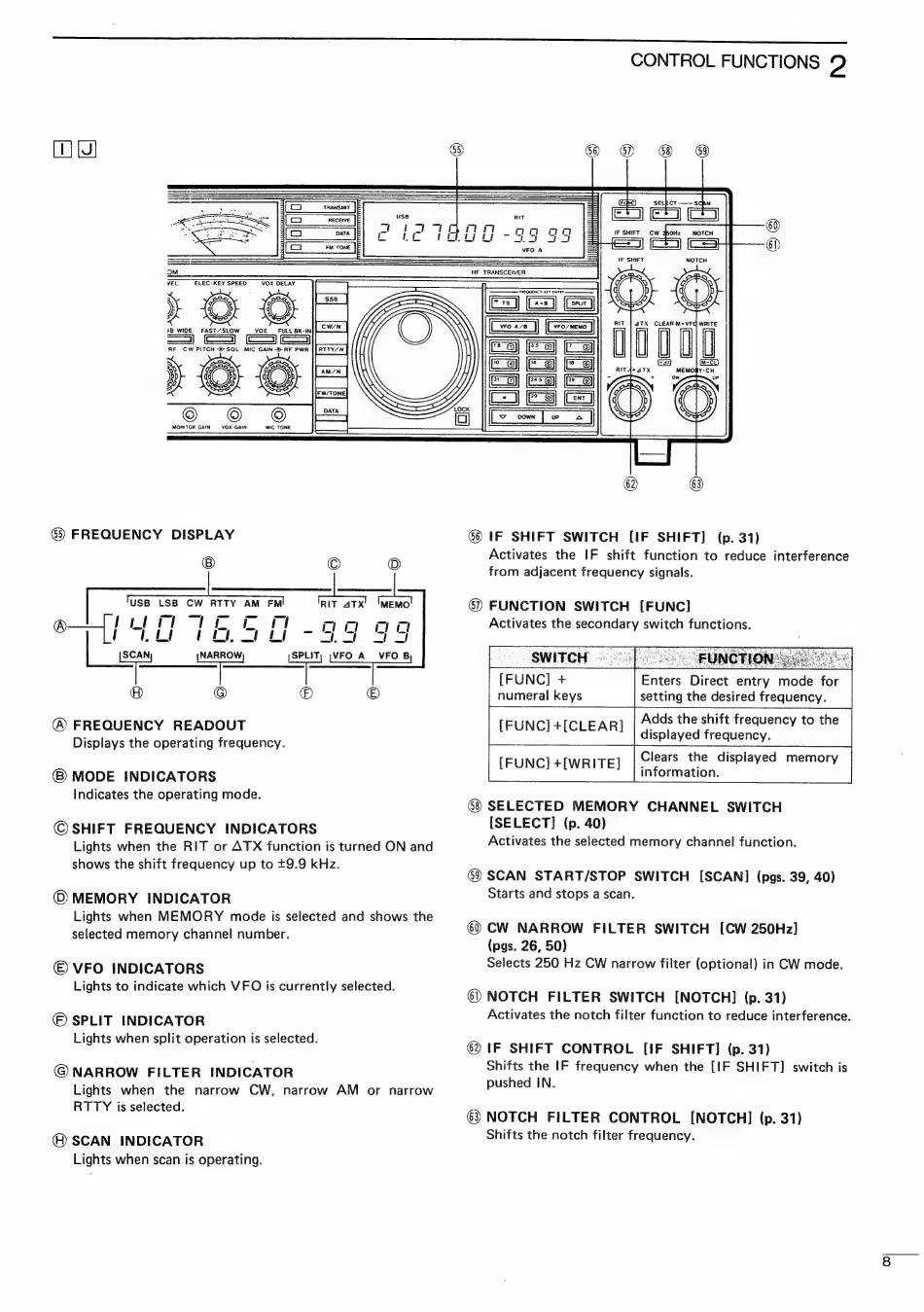

CONTROL FUNCTIONS 2
ED 6% Gp в 06
ELEC-KEY SPEED VOX DELAY » oO 49
+В WIDE FAST/SLOW vox FULL BK-IN
lm
69 FREQUENCY DISPLAY
© (>)
USB LSB CW RTTY АМ FM RIT ATX MEMO
| WR Er Coe ae V M
® 1 I LUI гулы - ЧЧ HH
[SCAN] {NARROW | SPLIT. VFO А УҒОВ
® © ©
@ FREQUENCY READOUT
Displays the operating frequency.
®
MODE INDICATORS
Indicates the operating mode.
© SHIFT FREQUENCY INDICATORS
Lights when the RIT or ATX function is turned ON and
shows the shift frequency up to +9.9 kHz.
© MEMORY INDICATOR
Lights when MEMORY mode is selected and shows the
selected memory channel number.
© VFO INDICATORS
Lights to indicate which VFO is currently selected.
© SPLIT INDICATOR
Lights when split operation is selected.
© NARROW FILTER INDICATOR
Lights when the narrow CW, narrow AM or narrow
RTTY is selected.
® SCAN INDICATOR
Lights when scan is operating.
LR ===
(FUNC) SELECT —— SCAN
IF SHIFT CW Z50Hz NOTCH |
IF SHIFT NOTCH
RIT | STX CLEAR M> VFQ WRITE
С
66 IF SHIFT SWITCH [IF SHIFT] (р. 31)
Activates the IF shift function to reduce interference
from adjacent frequency signals.
Poe
6) FUNCTION SWITCH [FUNC]
Activates the secondary switch functions.
[FUNC] + Enters Direct entry mode for
numeral keys setting the desired frequency.
[FUNC] -«[CLEAR] Adds the shift frequency to the
displayed frequency.
[FUNC] +[WRITE] Clears the displayed memory
information.
SELECTED MEMORY CHANNEL SWITCH
[SELECT] (p. 40)
Activates the selected memory channel function.
SCAN START/STOP SWITCH [SCAN] (pgs. 39, 40)
Starts and stops a scan.
60 CW NARROW FILTER SWITCH [CW 250Hz]
(pgs. 26, 50)
Selects 250 Hz CW narrow filter (optional) in CW mode.
6) NOTCH FILTER SWITCH [NOTCH] (p. 31)
Activates the notch filter function to reduce interference.
Shifts the IF frequency when the [IF SHIFT] switch is
pushed IN.
NOTCH FILTER CONTROL [NOTCH] (p. 31)
Shifts the notch filter frequency.
