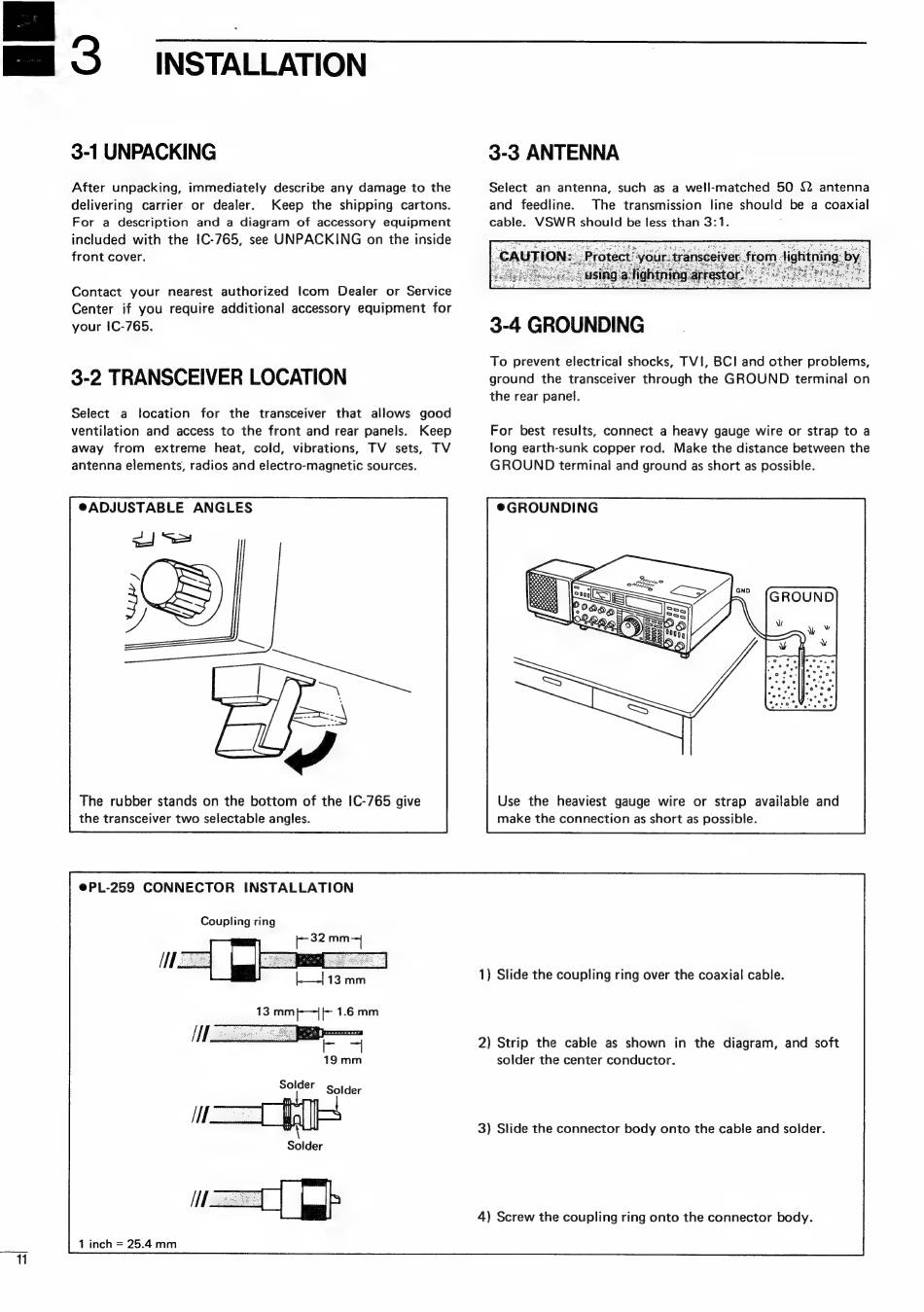

3 INSTALLATION
3-1 UNPACKING
After unpacking, immediately describe any damage to the
delivering carrier or dealer. Keep the shipping cartons.
For a description and a diagram of accessory equipment
included with the ІС-765, see UNPACKING on the inside
front cover.
Contact your nearest authorized Icom Dealer or Service
Center if you require additional accessory equipment for
your ІС-765.
3-2 TRANSCEIVER LOCATION
Select a location for the transceiver that allows good
ventilation and access to the front and rear panels. Keep
away from extreme heat, cold, vibrations, TV sets, TV
antenna elements, radios and electro-magnetic sources.
eADJUSTABLE ANGLES
g <=
Тһе rubber stands on the bottom of the IC-765 give
the transceiver two selectable angles.
@PL-259 CONNECTOR INSTALLATION
Coupling ring
r32 mm
413 mm
13 mme 1.6 mm
E
19 mm
Solder Solder
NIZE
Solder
1 inch = 25.4 mm
3-3 ANTENNA
Select an antenna, such as a well-matched 50 Q antenna
and feedline. The transmission line should be a coaxial
cable. VSWR should be less than 3:1.
3-4 GROUNDING
To prevent electrical shocks, ТУІ, ВСІ and other problems,
ground the transceiver through the GROUND terminal on
the rear panel.
For best results, connect a heavy gauge wire or strap to a
long earth-sunk copper rod. Make the distance between the
GROUND terminal and ground as short as possible.
€ GROUNDING
Use the heaviest gauge wire or strap available and
make the connection as short as possible.
1) Slide the coupling ring over the coaxial cable.
2) Strip the cable as shown in the diagram, and soft
solder the center conductor.
3) Slide the connector body onto the cable and solder.
4) Screw the coupling ring onto the connector body.
