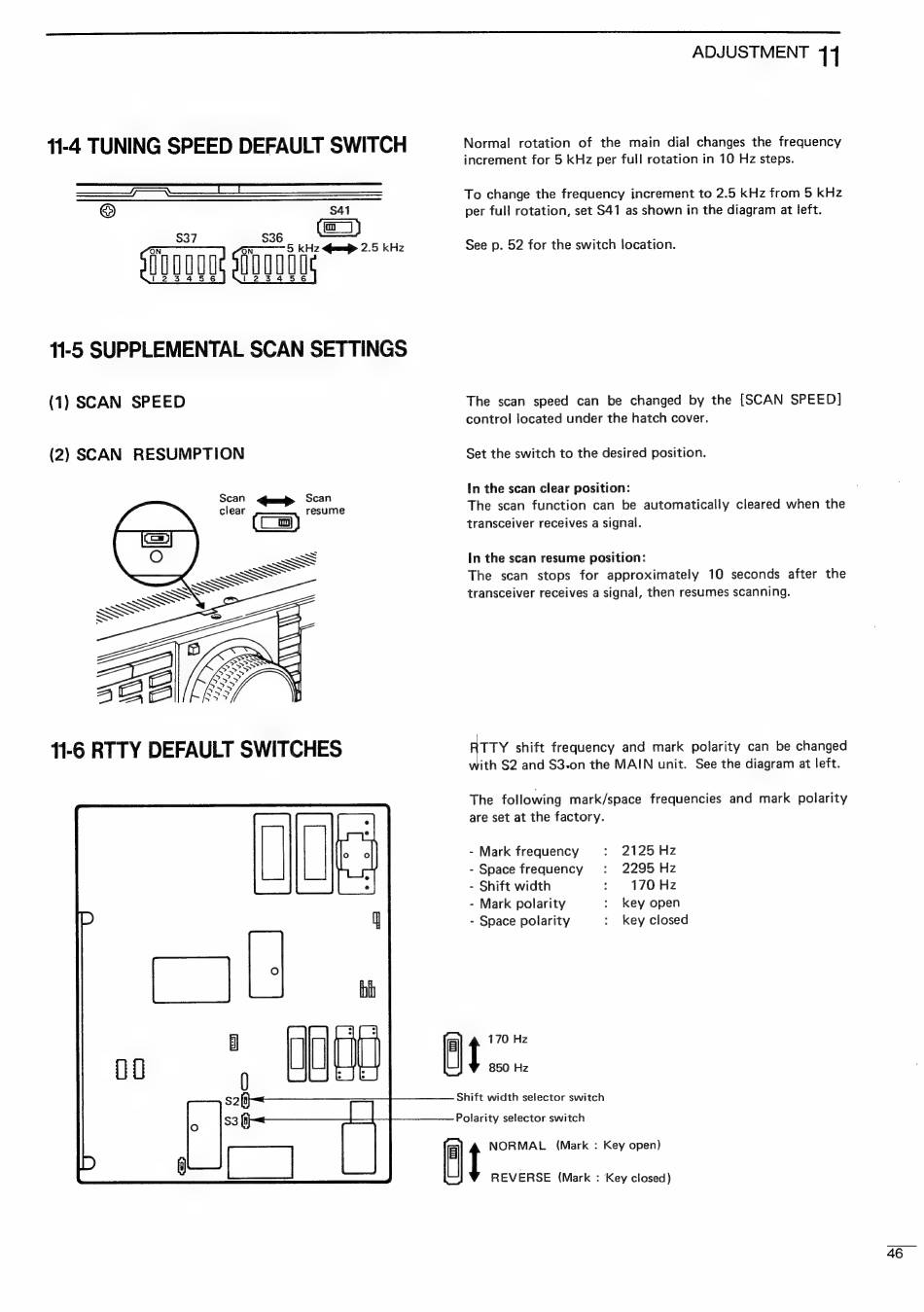

11-4 TUNING SPEED DEFAULT SWITCH
= 7 C EE, ИР T.
ШШ ЩЩ о
11-5 SUPPLEMENTAL SCAN SETTINGS
(1) SCAN SPEED
(2) SCAN RESUMPTION
Scan =p Scan
clear resume
ADJUSTMENT 11
Normal rotation of the main dial changes the frequency
increment for 5 kHz per full rotation in 10 Hz steps.
To change the frequency increment to 2.5 kHz from 5 kHz
per full rotation, set S41 as shown in the diagram at left.
See p. 52 for the switch location.
The scan speed can be changed by the [SCAN SPEED]
control located under the hatch cover.
Set the switch to the desired position.
In the scan clear position:
The scan function can be automatically cleared when the
transceiver receives a signal.
іп the scan resume position:
The scan stops for approximately 10 seconds after the
transceiver receives a signal, then resumes scanning.
тү shift frequency and mark polarity сап be changed
ith 52 and 53.оп the MAIN unit. See the diagram at left.
The following mark/space frequencies and mark polarity
are set at the factory.
- Mark frequency : 2125 Hz
- Space frequency : 2295 Hz
- Shift width : 170 Hz
- Mark polarity : key open
- Space polarity : key closed
| 170 Hz
850 Hz
Shift width selector switch
Polarity selector switch
| NORMAL (Mark : Key open)
REVERSE (Mark : Key closed)
