P o o l C o p E v o l u t i o n M a n u a l : E V 4 4 M A N U S

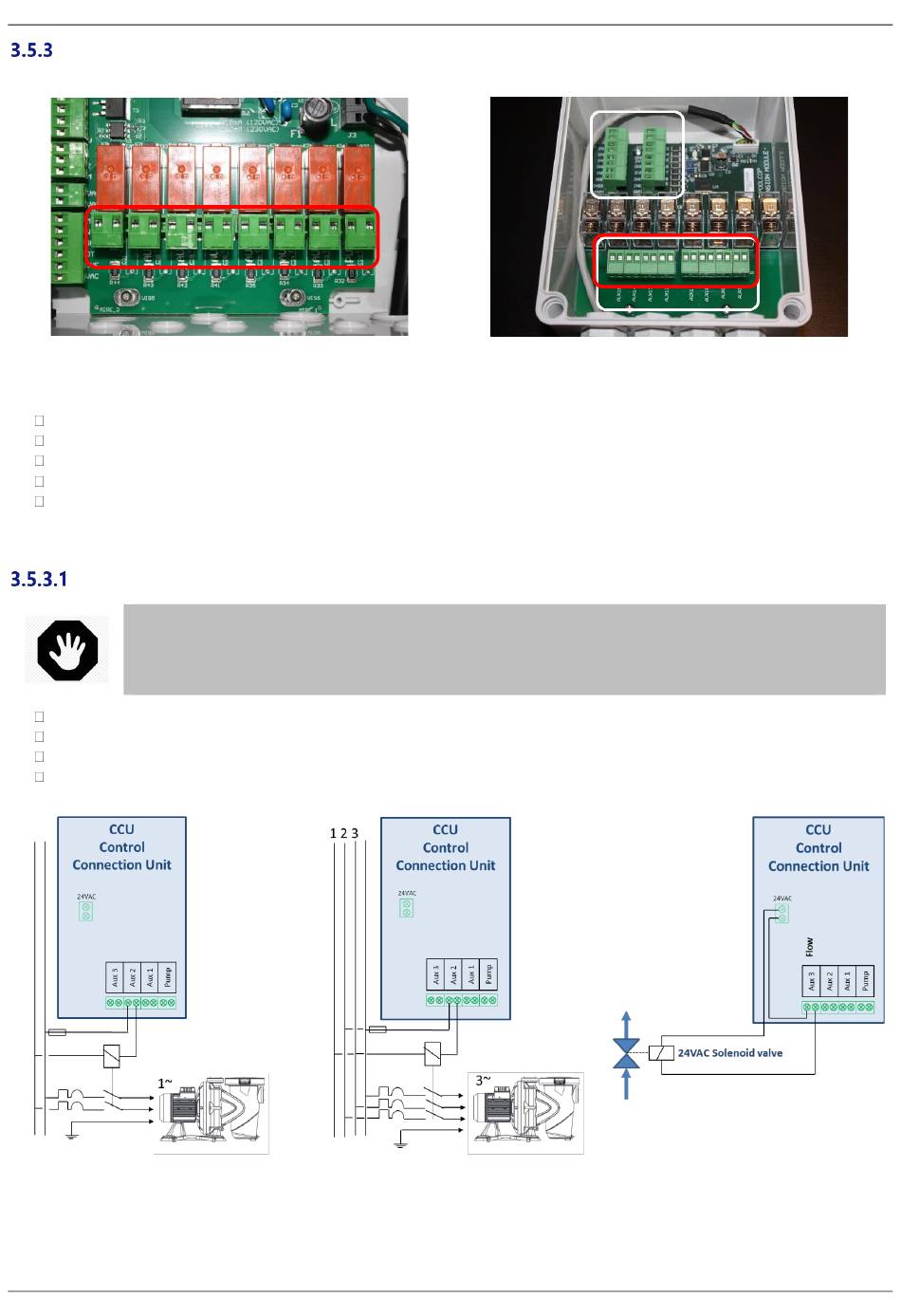

C o n n e ct i n g A u x i l ia r y R e la y s
An auxiliary relay acts as a switch in the same way as the mechanical switch or timer:
Relay Terminals in the CCU
Auxiliary relays can control auxiliary pool equipment, such as lights, heating, pool cleaners, etc.
Auxiliary Aux7 is dedicated to pH Control.
With ORP Control installed and configured, Aux6 is dedicated to ORP Control.
With XM8 and Pool Cover function installed, Aux14 is dedicated to open cover, Aux15 to close.
With XM8 and JetStream function installed, Aux13 is dedicated to JetStream pump control.
Each auxiliary relay has its own dedicated timer, programmed in the PoolCop
default name or a custom name from the list available. Relays can be slaved to the pump.

Connection Instructions

Disconnect the supply to and from the existing auxiliary timer.
Use multi-core cable to connect the auxiliary circuits to the auxiliary relays (Aux1 to Aux6) in the CCU.
The auxiliary relay functions in the same manner as a mechanical timer.
The wires should be connected in the applicable slots on connectors J6/J19 (CCU) or J1/J2(XM8) (Figure 31 - Auxiliary Relay
Connection)
Figure 32 - Single Phase 120/230VAC
Auxiliary
P a g e | 3 2

Figure 31 - Auxiliary Relay Connection

Never exceed the power ratings.
Max Output 12VDC is 100mA. Max Output 24VAC is 450mA.
Always conform to local installation norms and requirements.
Figure 33 - Three-Phase Auxiliary
Connection,
Relay Terminals in the XM8
AUXILIARIES MENU. Auxiliary relays can be given a
WARNING:
Figure 34 -Connection 24VAC
Auxiliary
