5.1 P C
RIOR TO OMMENCING
C l e a n t he F i l t er
Ensure that the filter media is properly maintained and cleaned as per the manufacturer's instructions and code requirements.
C h e c k W a t e r L ev e l
Refill the pool to the normal level, to ensure accurate pressure and other readings.
T e s t a n d B a la n c e Wa t er
It is strongly recommended that the pool water be analyzed and balanced prior to programming any water treatment features.
U n de r s ta n d i n g P r es s u r e P a r a m et er s
Pressure management is used widely to control filtration management. Settings are defined in:
Pump Data Menu (see 5.6.2 Pump Data)
Filter Data Menu (see 5.6.3 Filter Data )
(1) Protection Pressure (Pump Data): Determines if pump is primed or not.
When pressure is below Protection Pressure, pump is considered not primed.
o
Pump protection will be triggered after 8 minutes if pressure remains below Protection Pressure and if protection
o
is set ON.
(2) Low Alert Pressure (Pump Data): Determines that filter pressure is below the normal range, but water circulation is
flowing.
Pump is considered primed but with low efficiency due low pressure/flow.
o
An alert will be triggered if pressure is below Protection Pressure when the pump is running.
o
Alert message proposes cleaning skimmer baskets and pump pre-filter strainer.
o
(3) Normal Pressure: Determines the normal working pressure range of the pump.
For best results, pressure must be in this area when filtration is running.
o
With variable speed pumps, all speeds (except filter media cleaning speed) must be within this range.
o
(4) Filter Cleaning Pressure (Filter Data): Determines the pressure at which filter media cleaning is required.
If pressure is at or above this value for 5 minutes continuously, an alert to clean the filter is triggered.
o
(5) High Pressure (Fixed Value): fixed 1.9 bar (27.5 PSI) value to protect pump, filter and other equipment's in the pump
house. In all modes the pump and water refill (if installed) will stop immediately, and an alert message is triggered.
P a g e | 7 6
P
ROGRAMMING

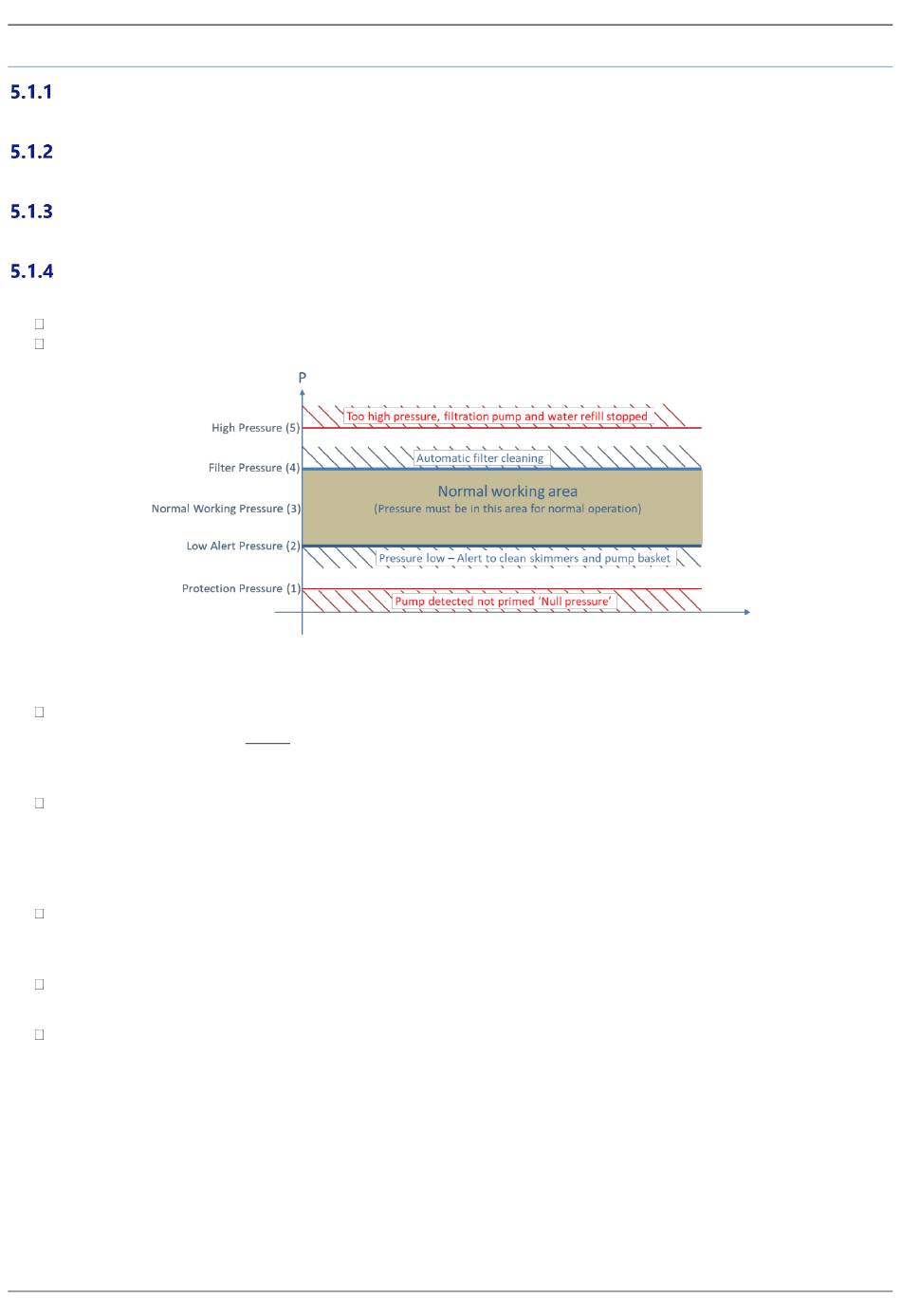

Figure 63 - Pressure setting parameters.
