P a g e | 4 4
C
O N N E C T I N G
An auxiliary relay acts as a switch in the same way as the mechanical switch or timer:
Auxiliary relays Aux1 to Aux6 can control auxiliary pool equipment, such as lights, heating, pool cleaners, etc.

Auxiliary Aux7 is dedicated to pH Control.

With ORP Control installed, Aux6 is dedicated to ORP Control.

With a waste valve, Aux5 is dedicated to this valve

Each auxiliary relay has its own dedicated timer, programmed in the PoolCop CONFIGURATION menu. Auxiliary relays can be given
a default name or a custom name from the list available. Relays can be slaved to the pump.

3.6.3.1 Electrical Supply

The electrical supply for any of the auxiliaries can be:
110VAC mains power supply: it is recommend that the PoolCop AUX relay controls an external relay to supply power.

240VAC mains power supply: it is recommend that the PoolCop AUX relay controls an external relay to supply power.

380VAC main power supply: it is mandatory that the PoolCop AUX relay control an external relay to supply power.

24VAC on the Power Supply PCB.

3.6.3.2 Connection Instructions
Never exceed relay ratings listed in Table 1.

In the event that the equipment to be controlled exceeds these ratings or is three-phase, the relay will be used to

command an external relay to switch the equipment.
Disconnect the supply to and from the existing auxiliary timer.

Disconnect the timer, or remove if appropriate, noting the wires that are connected to the auxiliary equipment.

Use multi-core cable to connect the auxiliary circuits to the auxiliary relays (Aux1 to Aux6) in the PSU.

The auxiliary relay functions in the same manner as a mechanical timer.

The wires should be connected in the applicable slots on connectors J6 and J19 (Figure 38 - Auxiliaries connection

terminal).
www.poolcop.com
A R
U X I L I A R Y E L A Y S

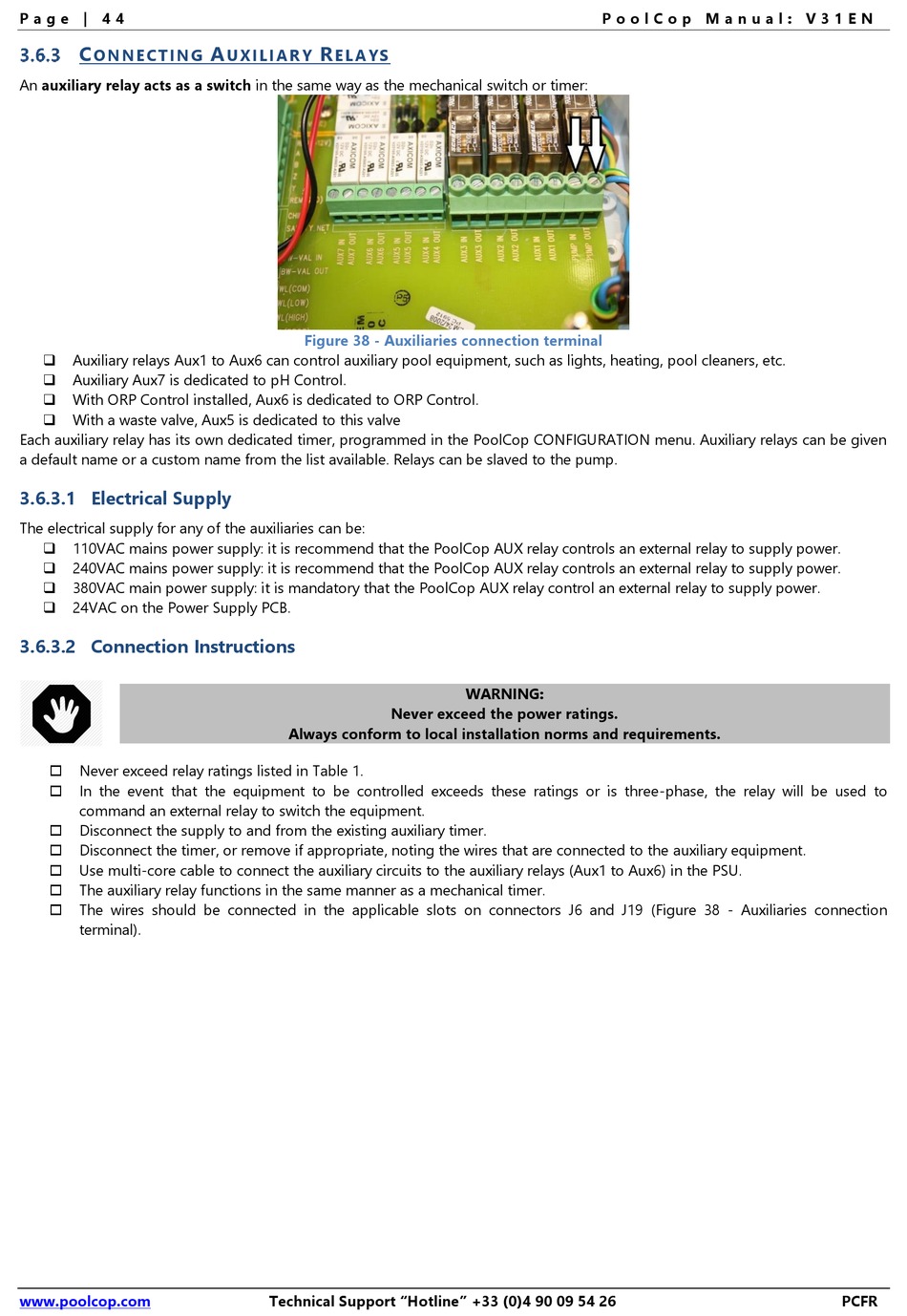

Figure 38 - Auxiliaries connection terminal

Always conform to local installation norms and requirements.
Technical Support "Hotline" +33 (0)4 90 09 54 26
WARNING:
Never exceed the power ratings.
P o o l C o p M a n u a l : V 3 1 E N
