7.7 D M
ECAL AND
D e c a ls a n d ma r k i n g C C U
c
See 7.7.1.6.1
See 7.7.1.2
See 7.7.1.3
See 7.7.1.4
See 7.7.1.5
CCU Faceplate Decal
Affixed externally on the cover, and includes the following information:
1. Equipment name and model number.
2. Manufacturer's name and contact information (address, website, supplier).
3. Electrical requirements; volts, amps, Hertz, maximum external load rated in volts and amps, and Standby Mode consumption.
4. Replacement sensor model numbers.
5. Replacement fuse specifications.
6. Caution statements and icons, IP rating, CE and WEEE logos.
Standby Decal
Affixed externally on the left side of the CCU, below the switch button: standby icon.
Date of Manufacture Decal
Affixed externally on the left side at the bottom centered above the CCU Serial Number Decal: product date of manufacture.
Serial Number Decal
Affixed externally on the left side at the bottom, centered on the enclosure: product serial number.
Relay Rating Decal
Affixed internally: Relay Rating 24VAC Max 6A
Marked on the PCB Power Supply
7.7.1.6.1 Fuse Rating Marking
Adjacent to the F3 battery fuse: BATT, 12VDC, 5x20mm cart. 2A Fast Blow, etc.
7.7.1.6.2 Supply and High Voltage Marking
Adjacent to the power cord connector: 115V 230V, L E N, triangular high voltage warning icon, etc.
7.7.1.6.3 Power Fuse Rating Marking
Adjacent to the F1 and F2 power supply fuses: 5x20mm cartridges 160mA Slow Blow (230VAC) 315mA Slow Blow (115VAC)
7.7.1.6.4 Relay Rating Marking
Adjacent to each output relay Max 6A.
7.7.1.6.5 Output Max
Marked on the PCB Power Supply adjacent to:
J25: 12Vdc – 0.1A
•
J26: 24Vac – 0.35A
•
7.7.1.6.6 Copper Conductors Only
Close to relay pluggable connector.
L
ARKINGS OCATION

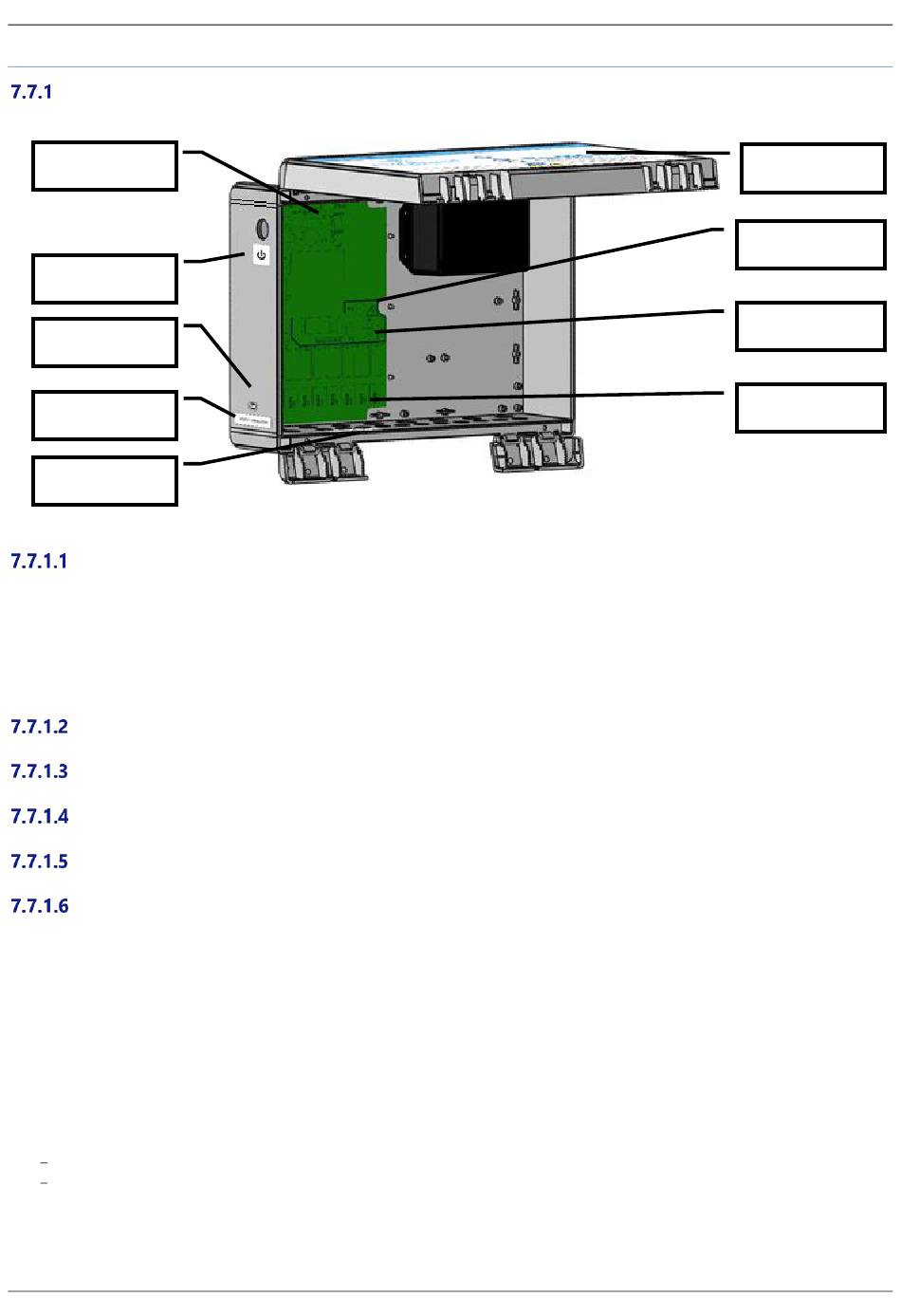

Figure 66 - CCU Decals and Markings

P o o l C o p E v o l u t i o n M a n u a l : E V 4 4 M A N U S
D
IAGRAMS
See 7.7.1.1
See 7.7.1.6.2
See 7.7.1.6.3
See 7.7.1.6.4
