Relay Timer Programming
Each auxiliary relay can be programmed with one daily timer cycle.
Auxiliary relays can be slaved to run only if filtration is running (see 5.3 Auxiliaries Menu
C o n n e ct i n g I n p u ts
Several types of sensors and equipment can be connected to add functionality and trigger alerts.
Inputs must be connected between the chosen input channel and the GND.
The Input can be assigned to any predefined functions with direct action (action when the contact is closed) or reverse action (action
when the contact is open). Inputs must be potential free contacts. The configuration menu lets you select the role and direction of
action of each entry.
The inputs are situated:
In the CCU, and are labelled IN1 and IN2; see Figure 35 - Connecting Inputs in .
In the XM8 and are labelled IN3 to IN10; see Figure 36 - Connecting Inputs in
Ensure that the signal connected to each input is potential free to avoid damage.

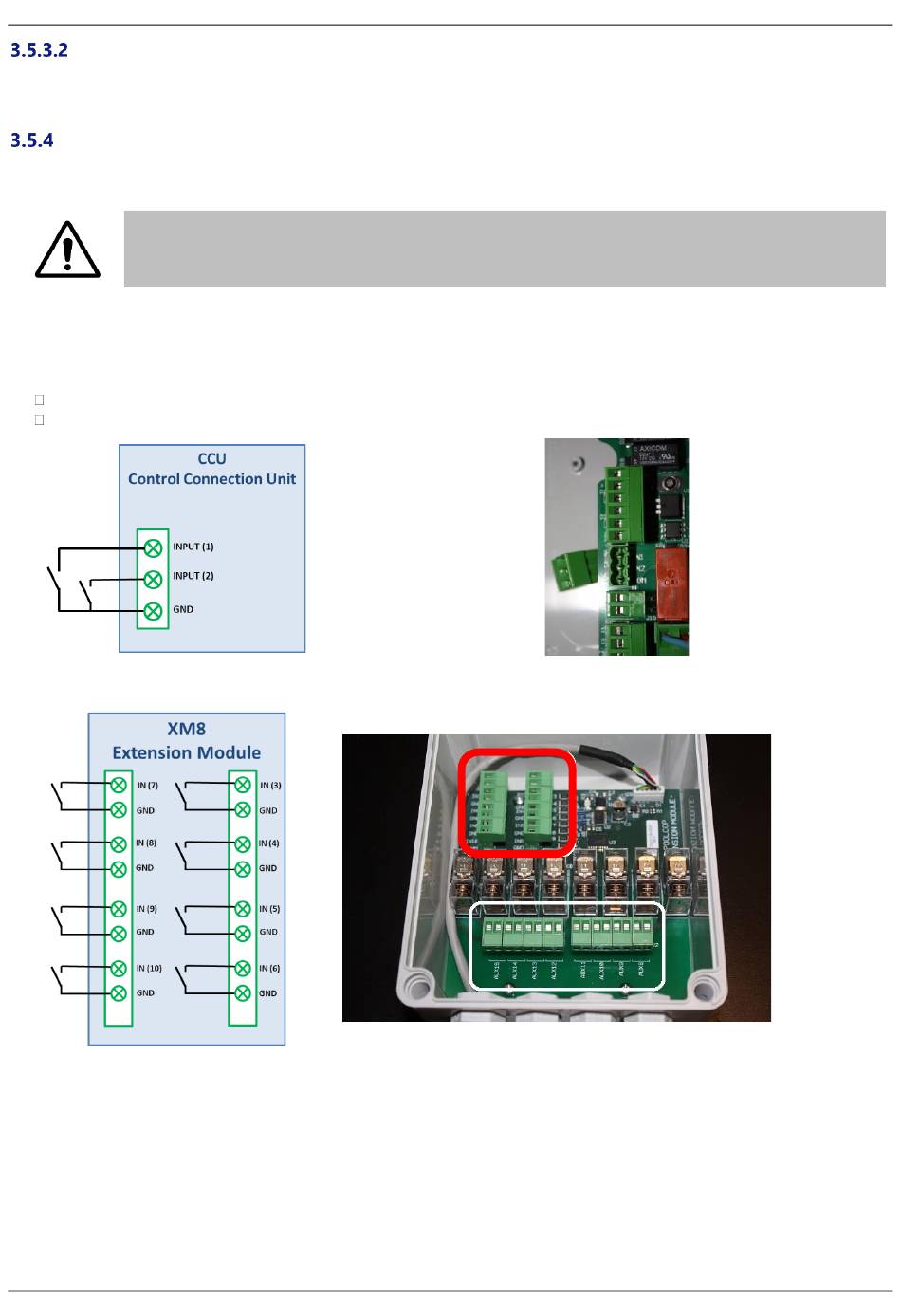

Figure 35 - Connecting Inputs in CCU

Figure 36 - Connecting Inputs in XM8

P o o l C o p E v o l u t i o n M a n u a l : E V 4 4 M A N U S
CAUTION:
Inputs are polarized with 5VDC.
XM8.
P a g e | 3 3
