8-7. Error Clear

Describes the error clear procedure in this chapter.
(1) Using the error clear button on the front panel
Press the error clear button on the front panel.
(2) Input the error clear signal
Input the error clear signal (CLR).
Important
The error clear input must be ON 20ms or more.
The error clear signal must be turned OFF after clearing the error.

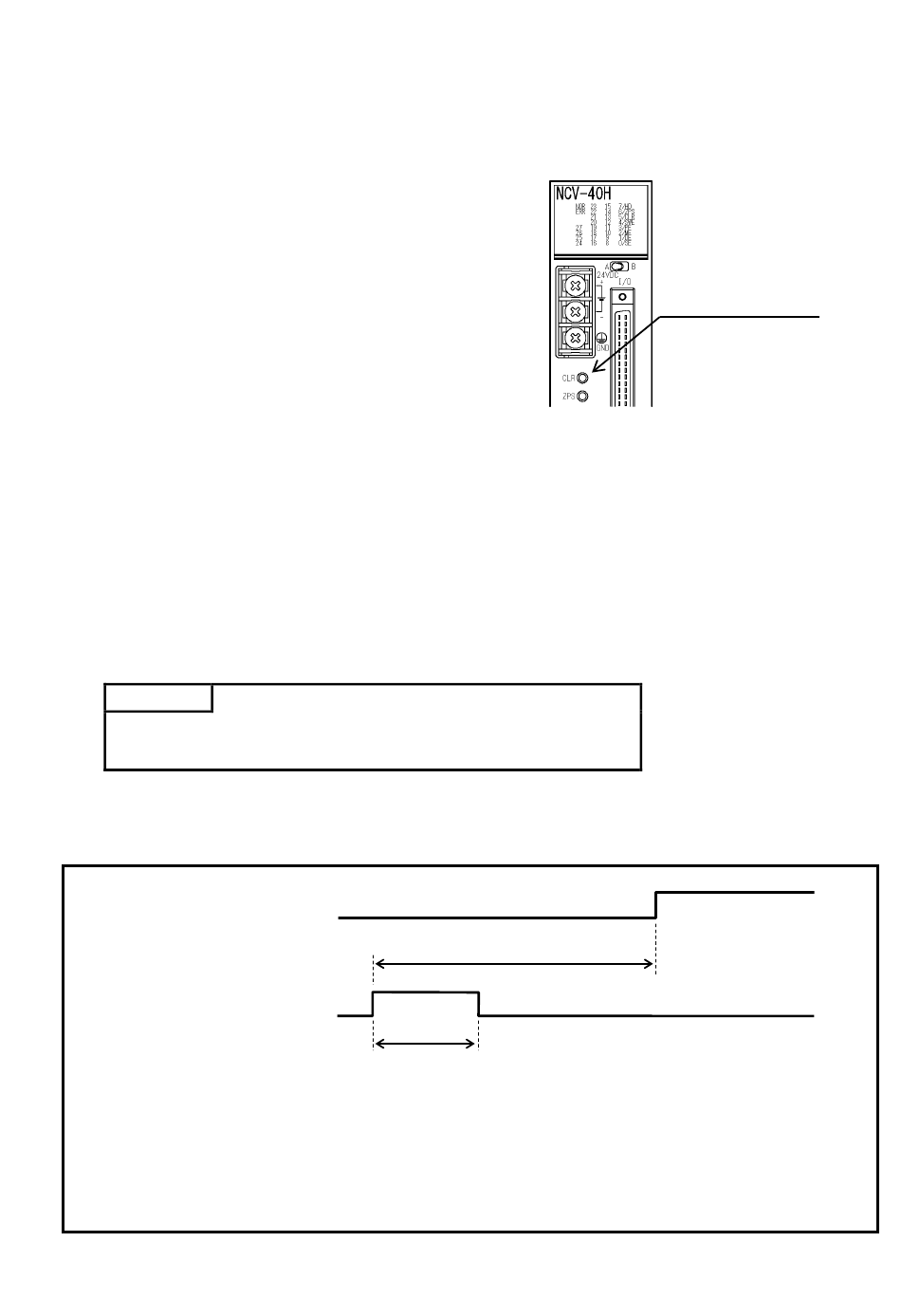

Indicates the timing of system ready output when inputting the error clear.
For your safety, read the position data when the system ready signal is ON.
System ready output
(NOR)
Error clear input
(CLR)
t1: Input time of the error clear (CLR)
t1 ≧ 20ms
t2: Time until the system ready output (NOR) is ON after the error clear input (CLR) is ON.
t2 ≦ (20ms + 0.2ms)
ON
OFF
ON
OFF
t1
39
t2
Error clear button
