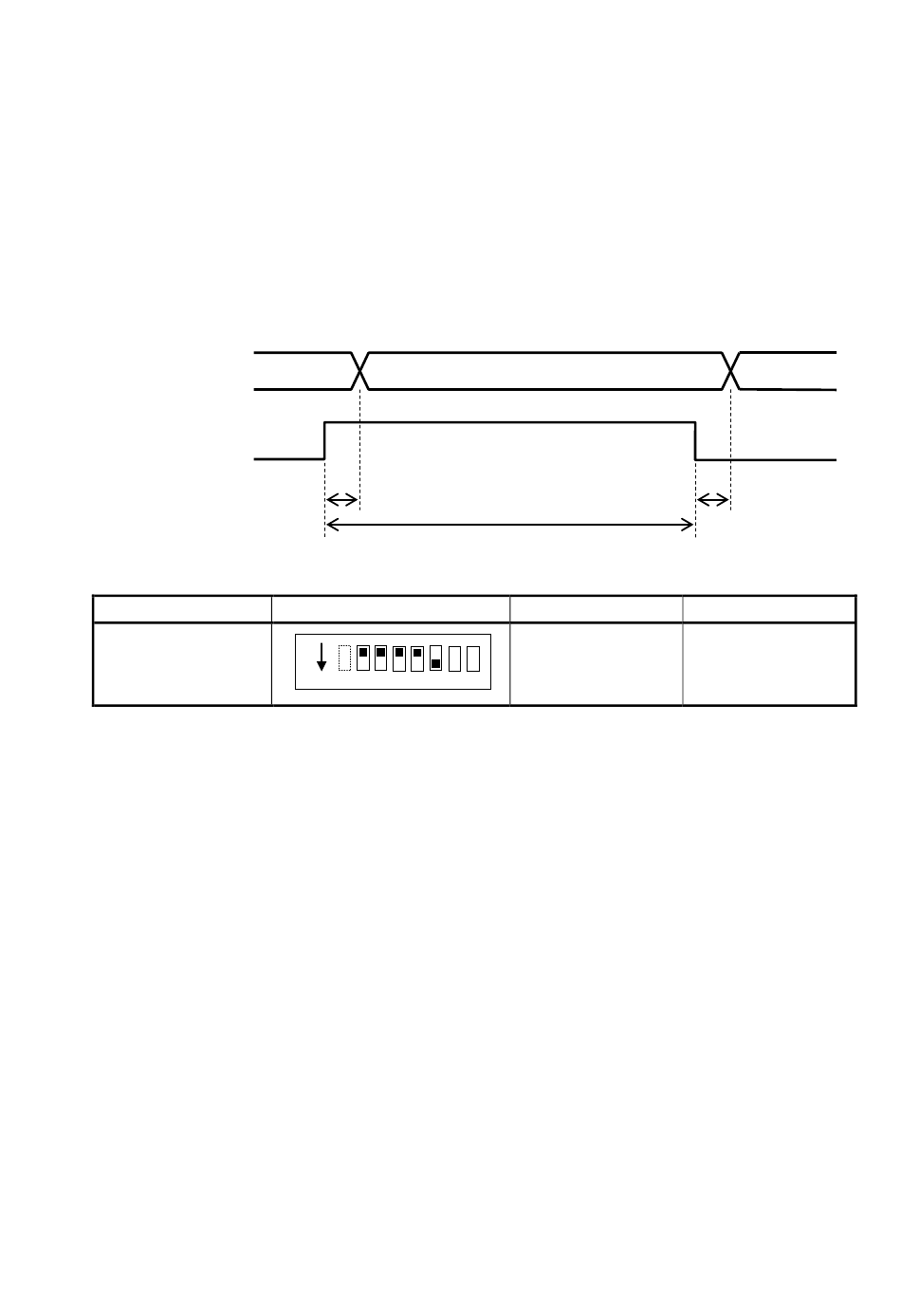

(2) PC synchro format
Position data output updating occurs when the HOLD input signal status changes (leading edge or trailing
edge), and is not synchronized with the LP output signal.
Position data reading should be performed after waiting period "t3" following the HOLD input signal status
is changed by the host controller (PLC, etc.). In addition, the cycle of the HOLD signal status changes
should be more than "t4".
Position data
D0 to D25
ON
HD
OFF
t3
t3
t4
DSW1 setting t3 t4
0.2ms 0.2ms
PC synchro format
ON 1 2 3 4 5 6 7 8
