7. NOMENCLATURE

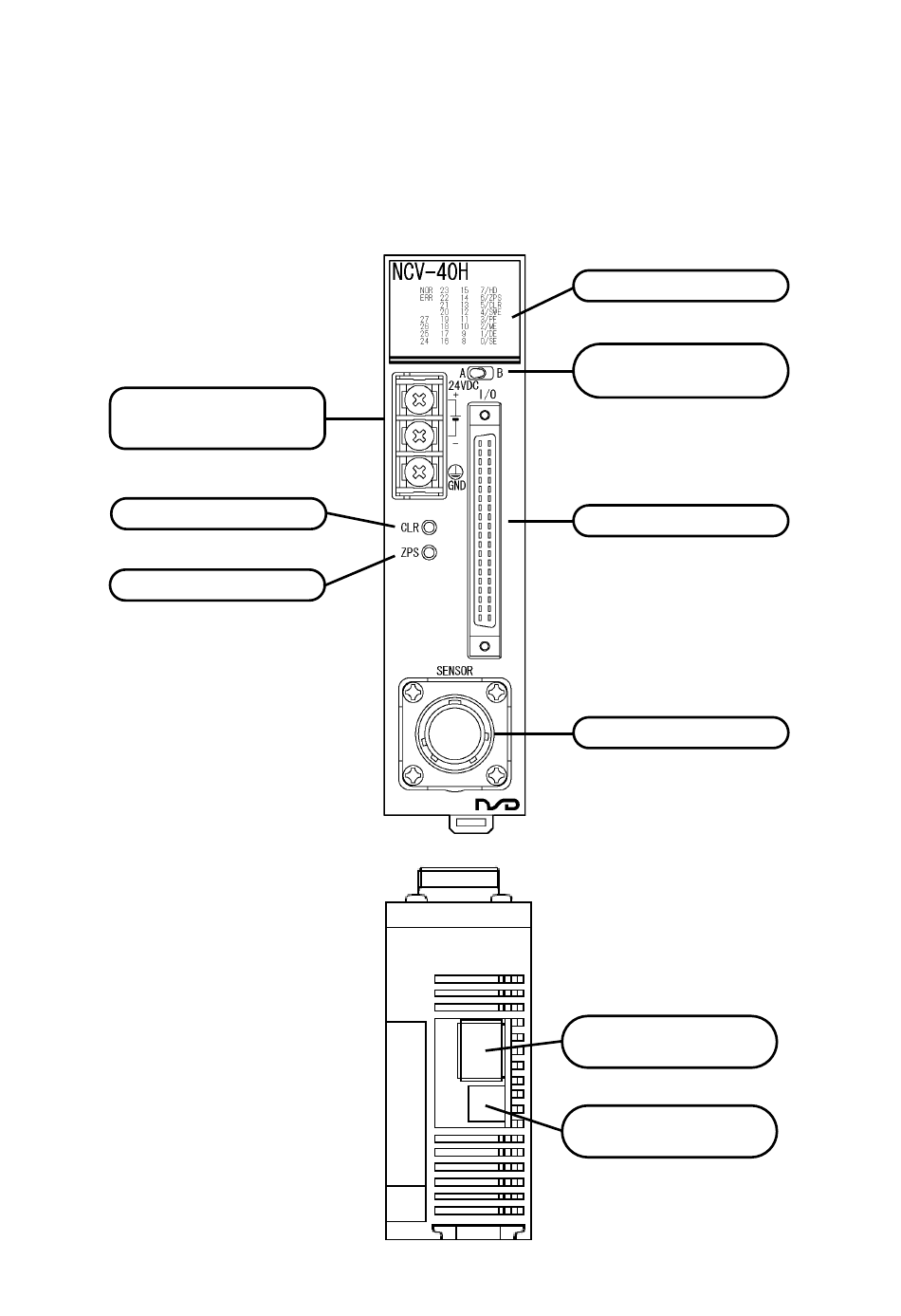

7-1. Part Identification
Power terminal block
-M4 screw
Error clear switch
Zero point setting switch
Monitor LEDs
Toggle switch for the
monitor LED
I/O connector
Sensor connector
Extension I/O connector
(Not used)
Extension rotary dip switch
(Not used)
23
