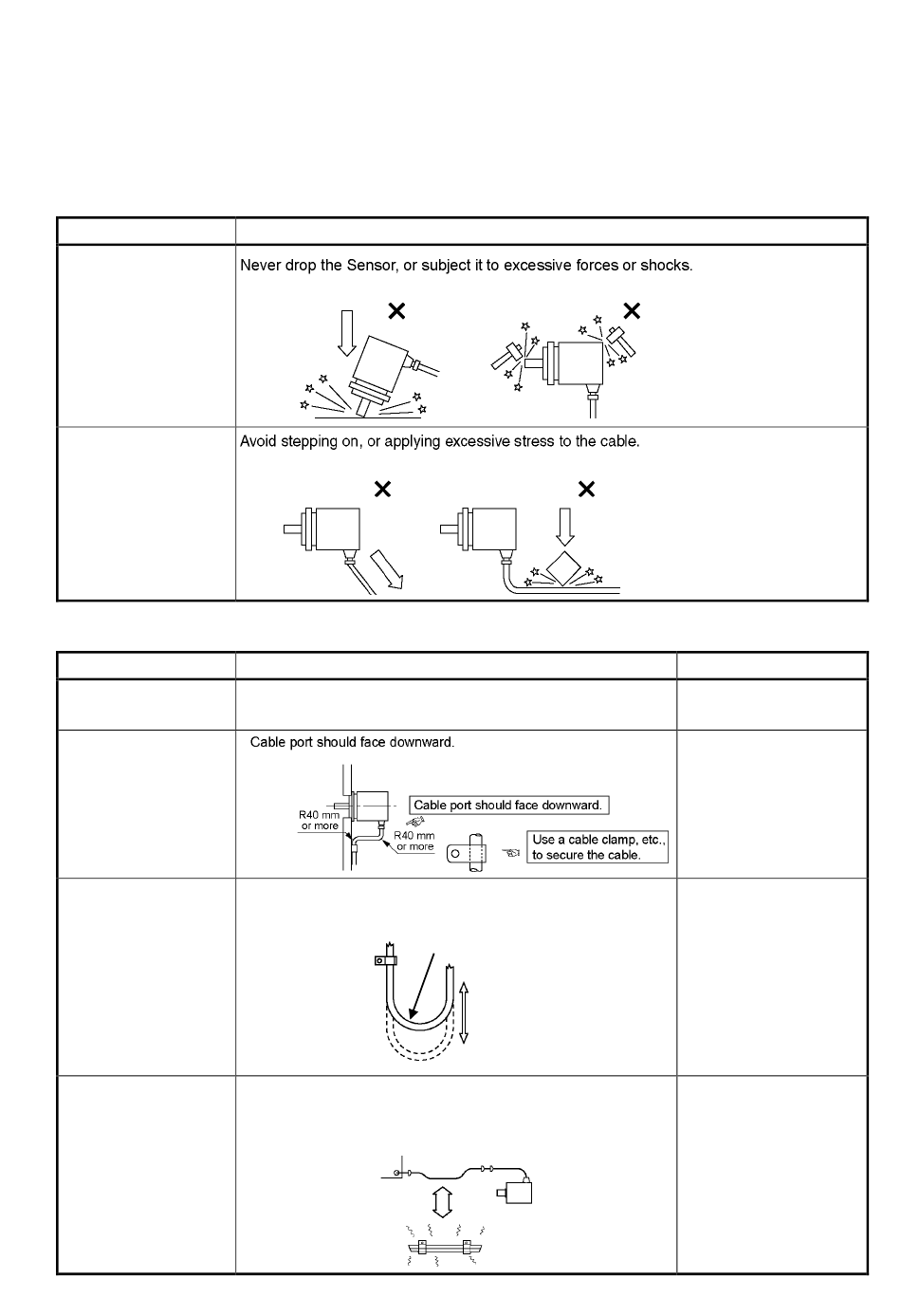

5-2. ABSOCODER Sensor Installation Conditions and Precautions

The installation conditions and precautions for ABSOCODER sensor are described in this section.
● Handling of Turn-type ABSOCODER sensor
Item
(1) Main unit
(2) Cable
● Mounting of Turn-type ABSOCODER sensor
Item
(1) Mounting
(2) Cable port
(3) Cable
(4) Wiring
For details regarding mounting dimensions, refer to each
ABSOCODER sensor dimensions.
The bend radius for movable parts should never be less
than 75 mm(φ150) (robotic cable).
The sensor cable should be located at least 300mm away
from power lines and other lines which generate a high
level of electrical noise.
300mm
or more
Explanation
Explanation
R75mm or more
15
Precaution
Do not use the standard
cable for movable parts.
(Use robotic cable.)
