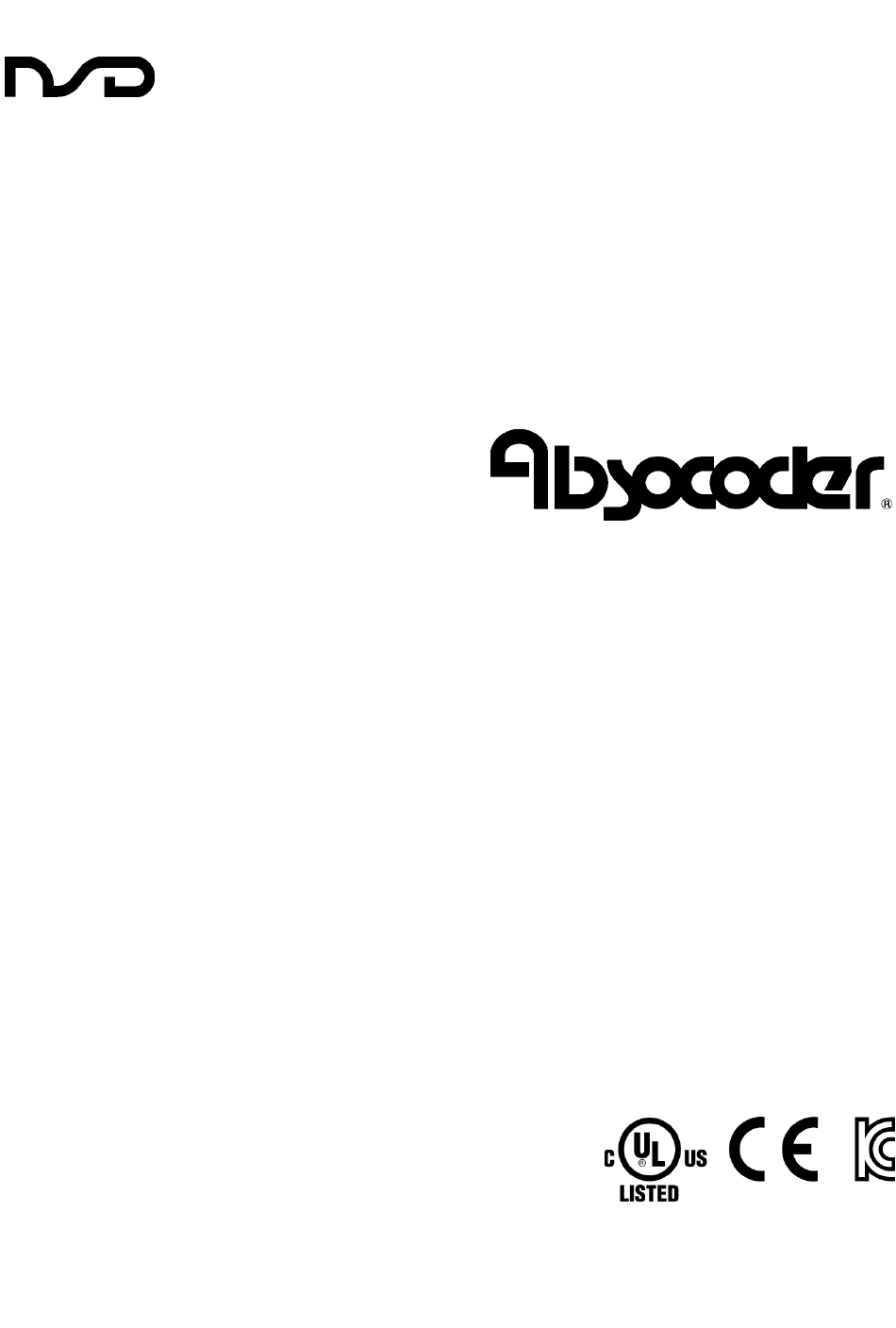

ZEF004570507
ABSOCODER CONVERTER
NCV-30NBNLC
NCV-30NGNLC
Specifications & Instruction Manual
Applicable sensor: CYLNUC cylinder
VLS-12.8
IRS-51.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABSOCODER NCV-30 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NSD ABSOCODER NCV-30 Series

  • Page 1 ZEF004570507 ABSOCODER CONVERTER NCV-30NBNLC NCV-30NGNLC Specifications & Instruction Manual Applicable sensor: CYLNUC cylinder VLS-12.8 IRS-51.2...
  • Page 3: General Safety Rules

    - Be sure to store the controller in designed temperature and humidity CAUTION range, and do not exposed to direct sunlight. - Be sure to consult with NSD when the controller is stored for long - Be sure to handle the controller as industrial waste while periods.
  • Page 4 REVISION HISTORY The Document No. appears at the upper right of this manual's cover page. Document No. Date Revision Description ZEF004570500 16, Jun., 2009 1st Edition Japanese document: G-HB08002601 ZEF004570501 31, Jan., 2011 2nd Edition Japanese document: G-HB08002601 16, Sep., 2011 3rd Edition ZEF004570502 Japanese document: G-HB08002602...
  • Page 5 - MEMO -...
  • Page 6: Table Of Contents

    CONTENTS 1. OVERVIEW ..........................1 1-1. Features ................................1 1-2. Limitations ................................2 1-3. Additional Function ............................. 2 2. CONFIGURATION ........................3 2-1. Model List ................................3 3. SPECIFICATIONS ........................4 3-1. Converter Specifications ............................ 4 3-2. ABSOCODER Sensor Specifications ......................... 7 3-3.
  • Page 7 8. OPERATION .......................... 19 8-1. Operation Sequence ............................19 8-2. Settings of the Function Setting Switch ......................20 8-3. Position Data "Increase Direction" Setting ....................... 22 8-4. Position Data Reading Setting ......................... 23 8-4-1. Position Data Reading by LP output ....................23 8-4-2.
  • Page 8: Overview

    IRS-51.2”) to convert the detected position data to binary or gray codes for output. 1-1. Features (1) Superior durability NSD's original ABSOCODER is used as the position sensor which features a no-contact construction for excellent durability. (2) Compact design The unit's outside dimensions (39(W) x 155(H) x 93(D)) were miniaturized, and the shape of case is a bookshelf type.
  • Page 9: Limitations

    1-2. Limitations Important Cautions concerning power-off and error occurrence If the sensor moves while the converter power is OFF or when an error is present, it mightn’t detect accurate machine positions thereafter. The zero position setting should be done after turning ON the power supply or clearing the error. For setting details, refer to "8-7.
  • Page 10: Configuration

    2. CONFIGURATION Indicates the configuration of NCV-30. Contact your NSD representative for details of ABSOCODER sensor and the extension sensor cable. 1) Converter Connector at cable side (It is included in the External output signal converter.) -Position data MR-34F: Soldered socket...
  • Page 11: Specifications

    3. SPECIFICATIONS 3-1. Converter Specifications (1) General Specification Items Specifications ± Power supply voltage 24VDC 10% (including ripple) Power consumption 10W or less 20 M-Ohms or more between external DC power terminals and ground Insulation resistance (by 500 VDC insulation resistance tester) Withstand voltage 500 VAC, 60Hz for 1 minute between external DC power terminals and ground 20m/s...
  • Page 12: Performance Specification

    (2) Performance Specification Items Specifications Converter model NCV-30NBNLC NCV-30NGNLC CSA・SBA・SBB・SBH CSA・SBA・SBB・SBH Applicable sensor IRS-51.2 IRS-51.2 VLS-12.8 VLS-12.8 Resolution 1.5625μm 6.25μm 1.5625μm 6.25μm Position detection format Semi-absolute format Standard pitch x number of pitches Total number of divisions (8192 divisions (2 ) x max.
  • Page 13 (3) Input / Output Specification Items Specifications HD (Position data HOLD): 1 point Input signals ZPS (Zero point setting): 1 point CLR (Error clear): 1 point Input circuit DC input, photo-coupler isolation Input logic Negative logic Rated input voltage 12 to 24VDC (10.8 to 26.4VDC) Input Rated input current 10mA(24VDC)
  • Page 14: Absocoder Sensor Specifications

    Irradiated cross linked foamed Insulator ETFE plastic polyethylene Sheath Vinyl chloride mixture Color Gray Black Superior flexibility; ideal for moving Advantage Extensible for long distances place [Remark] Contact your NSD representative when the extension cable combines different types of cables.
  • Page 15: Dimensions

    4. DIMENSIONS 4-1. Converter Units: mm Mounting hole DIN rail 4-2. ABSOCODER Sensor Contact your NSD representative for ABSOCODER sensor dimension.
  • Page 16: Extension Sensor Cable

    4-3. Extension Sensor Cable (1) 3P-S-0102-[L]/3P-RBT-0102-[L] Units: mm (2) 3P-RBT-0103-[L] (3) 3P-S-0144-[L]/ 3P-RBT-0144-[L]...
  • Page 17: Installation

    5. INSTALLATION 5-1. Converter Installation Conditions and Precautions When installing the converter, the following conditions and precautions should be observed. -Installation Site (1) Avoid sites where the unit is exposed to direct sunlight. (2) The ambient temperature should never exceed a 0 to 55°C range. (3) The ambient humidity should never exceed a 20 to 90% RH range.
  • Page 18: Absocoder Sensor Installation Conditions And Precautions

    3) When the cable port is exposed, a shielding plate should be installed as shown in the right figure. Contact your NSD representative for details of the installation conditions and precautions for ABSOCODER sensor.
  • Page 19: Ce Marking

    5-3. CE Marking NCV-30 Series conforms to CE Marking (EMC directive), but stands outside scope of the low voltage directive because it is 24 VDC power apparatus. 5-3-1. EMC Directives It is necessary to do CE marking in the customer’s responsibility in the state of a final product. Confirm EMC compliance of the machine and the entire device by customer because EMC changes configuration of the control panel, wiring, and layout.
  • Page 20: Restrictions

    5-3-4. Restrictions The I / O cable must be under 30m from the host controller to the converter. The wiring should be surely secured. [Reference] It may be improved when clamp ferrite core is added to the power supply cable, sensor cable, and I/O cable when it operates faultily by the influence from the peripheral device.
  • Page 21: Wiring

    6. WIRING 6-1. Connection between Converter and ABSOCODER Sensor The maximum extension sensor cable length varies according to the ABSOCODER sensor and cable model being used. Please refer to the 3-2 for details. ● Wiring Precautions The sensor cable should be clamped as shown in the right figure to prevent excessive tension from being applied to the cable connectors.
  • Page 22: Power Supply Connection

    6-2. Power Supply Connection The power supply should be connected as described below: (1) Power Supply -The rush current is 10A(rush time of 20ms), so select the power supply after due consideration. Over current Power +24VDC Choose the capacity of the power supply over Supply protector double of power consumption of converter.
  • Page 23: Input / Output Connector Connection

    6-3. Input / Output Connector Connection 6-3-1. Pin arrangement of the I/O Connector Input / Signal Names Descriptions Output NCV-30NBNLC Output the position data by 24-bit of binary code. *: 24-pin outputs SIGN signal when selecting the sign magnitude code for the position data output format. Position data NCV-30NGNLC Output...
  • Page 24: I/O Circuit

    ●Pin arrangement Connector model: MR-34LF Viewed from the soldered terminals on the rear side of the connector. 6-3-2. I/O Circuit NCV-30 internal circuit Load Load External power supply 12 to 24VDC DC-DC converter (isolation type) HD,ZPS,CLR Input/output circuit is isolated from power supply and internal circuitry by photo-coupler. *: Use a Class 2 power supply for the input / output external power supply.
  • Page 25: Nomenclature

    7. NOMENCLATURE 7-1. Part Identification Monitor LEDs Error clear switch Power terminal block -M4 screw Zero point setting switch I/O connector Sensor connector 7-2. Function and Name of Display and Setting Area Function setting switch Monitor LEDs Status monitor (Rear face) : Indication of latch pulse output NCV-30N LP signal is constantly “HIGH level”...
  • Page 26: Operation

    8. OPERATION 8-1. Operation Sequence START Function selector switch setting Designate the following setting by a switch which is at -------- Refer to section 8-2 to 8-5. rear face of the converter. (1) Position data "increase direction" setting (2) Position data reading setting Converter mounting -------- Refer to section 5-1.
  • Page 27: Settings Of The Function Setting Switch

    8-2. Settings of the Function Setting Switch The following two position data reading formats are available: 1) Latch pulse ( LP ) format…Reads position data which is updated regularly in synchronization with a latch pulse output signal from the converter. 2) HOLD ( HD ) format…Reads position data while position data updates are stopped by a HOLD input signal.
  • Page 28 The DIP switch settings are shown below. (Position data increase direction) Refer Position data increase ON 1 2 3 4 5 6 7 8 (Factory setting) to 22P. direction setting ON 1 2 3 4 5 6 7 8 (Position data update cycle) 0.2ms ON 1 2 3 4 5 6 7 8 (Factory setting)
  • Page 29: Position Data "Increase Direction" Setting

    8-3. Position Data "Increase Direction" Setting The position data increases or decreases according to the ABSOCODER sensor's rod travel direction. The direction in which the position data increases is specified by a switch on the converter's rear face. Switch setting Increase direction Switch setting Alteration of the position data...
  • Page 30: Position Data Reading Setting

    8-4. Position Data Reading Setting 8-4-1. Position Data Reading by LP output Position data reading is synchronized with the LP output signal from the converter. Either high-speed or low-speed reading can be selected. (1) High-speed reading When high-speed reading is selected, the position data output is updated at the leading edge of the LP output signal.
  • Page 31 (2) Low-speed reading (at LP=LOW) When low-speed reading (at LP =LOW) is selected, the position data output is updated when the LP output signal is HIGH. It stabilizes when the LP output signal is LOW, so the position data should be read at that time.
  • Page 32: Position Data Reading By Hold (Hd) Input

    8-4-2. Position Data Reading by HOLD (HD) Input The HOLD input signal is used to HOLD position data outputs from the host controller. Either of the following two position data HOLD formats can be selected. (1) Transparent format Position data output updating is stopped by an HOLD input signal from the host controller (PLC, etc.). The position data should be read at that time.
  • Page 33 (2) PC synchro format Position data output updating occurs when the HOLD input signal status changes (leading edge or trailing edge), and is not synchronized with the LP output signal. Position data reading should be performed after waiting period "t3" following the HOLD input signal status is changed by the host controller (PLC, etc.).
  • Page 34: Position Data Output Format Setting

    8-5. Position Data Output Format Setting This setting applies for the NCV-30NBNLC only. Select the position data output format from the binary code, sign magnitude code, or minus zone “0” output. Binary code output: Outputs 24-bit of binary code. Sing magnitude code output: D23 output changes to minus sign output. The minus sign output is ON when the machine position travels to the minus side.
  • Page 35: System Ready Signal

    8-6. System Ready Signal The system ready signal indicates that the normal position data is output from the converter. The signal is “LOW level” when ABSOCODER sensor and converter operate normally. For your safety, read the position data when the system ready signal is “LOW level”. The system ready signal is “HIGH level”...
  • Page 36: Zero Point Setting

    8-7. Zero Point Setting A “zero point setting” refer to an operation in which the position data ( D0 to D23 ) is set to “0”. To set the zero point, move the ABSOCODER sensor’s rod to the zero point position. After that, execute by using either the “ZPS”...
  • Page 37: Timing Of The Zero Point Setting When Using A Latch Pulse Signal

    8-7-2. Timing of the Zero Point Setting when Using a Latch Pulse Signal Indicates the timing of the zero point setting when using a latch pulse signal. Data after setting the zero point Position data output “0” OFF (H) Zero point setting input ON (L) ts: Position data update cycle Check the position data update cycle setting of the function setting switch.
  • Page 38: Timing Of The Zero Point Setting When Using A Hold Signal

    8-7-3. Timing of the Zero Point Setting when Using a HOLD Signal Indicates the timing when setting either transparent format or PC synchro format of HOLD input. (1) Transparent format In the case of setting the zero point during HOLD input is ON (L) by transparent format, turning OFF(H) HOLD input allows outputting the position data after setting the zero point.
  • Page 39: Error Clear

    8-8. Error Clear Describes the error clear procedure in this chapter. (1) Using the error clear button on the front panel Press the error clear button on the front panel. Error clear button...
  • Page 40 (2) Input the error clear signal Input the error clear signal ( CLR ). Important The error clear input must be ON 20ms or more. The error clear signal must be turned OFF after clearing the error. Indicates the timing of system ready output when inputting the error clear. For your safety, read the position data when the system ready signal is “LOW level”.
  • Page 41: Inspections

    9. INSPECTIONS The inspection should be conducted once every 6 months to a year. Any inspected items which do not satisfy the criteria shown below should be repaired. Inspection Inspection Description Criteria Remark item Power Measure the voltage at the power supply terminal Within 21.6 to 26.4VDC Tester supply...
  • Page 42: Troubleshooting

    10. TROUBLESHOOTING The causes and corrective actions for errors that may occur during NCV-30 operation are described below. 10-1. Display and Countermeasure when an Error Occurred NCV-30 has LED for the error monitor. Error contents are checked by LED light. Refer to the following list and implement appropriate countermeasures.
  • Page 43 ● Other error contents Error contents Probable cause Error cancel procedures Coupling of ABSOCOER sensor rod and the machine is loose. Secure the coupling / mounting. Zero point deviation ABSOCODER sensor mounting is loose. Check the signal status. “ ZPS ”(the external input signal) is ON. LP output signal and position data reading timing are improper.
  • Page 44: Output State When Occurring An Error

    10-2. Output State when Occurring an Error Indicates the state of output signal when occurring an error. Output Position data output Latch pulse output System ready output Item D0 to D23 “SE” LED is ON Sensor disconnected error “SE” LED is blinking -5V power supply error The data before “DE”...
  • Page 45 - MEMO -...
  • Page 46: Absocoder Check Lists

    10-4. ABSOCODER Check Lists ● Applicable ABSOCODER models CSA,SBA,SBB,SBH Contact our sales representative for VLS-12.8 and IRS-51.2. ● Connection configuration ● Connector appearance and pin position CYLNUC Converter Extension sensor cable Cylinder View A View B Checks at Point B should be carried out with Point A (or Point B) connected. ●...
  • Page 47 *1: If checks are done at Point C, the measurement value is [Standard coil resistance + extension sensor cable resistance (cable length (m) x 0.2 (Ω))]. The resistance value of the NSD special cable is 0.2Ω/m (loop resistance). Consider resistance variations due to temperature, which, relative to the standard temperature C), increases 0.4% when the temperature rises 1...
  • Page 48 Manufacturer NSD Corporation 3-31-28, OSU, NAKA-KU, NAGOYA, JAPAN 460-8302 Distributor NSD Trading Corporation 3-31-23, OSU, NAKA-KU, NAGOYA, JAPAN 460-8302 Phone: +81-52-261-2352 Facsimile: +81-52-252-0522 URL: www.nsdcorp.com E-mail: foreign@nsdcorp.com Copyright©2020 NSD Corporation All rights reserved.
