6. WIRING

6-1. Connection between Converter and ABSOCODER Sensor

The maximum extension sensor cable length varies according to the ABSOCODER sensor and cable model
being used. Please refer to the 3-2 for details.
● Wiring Precautions

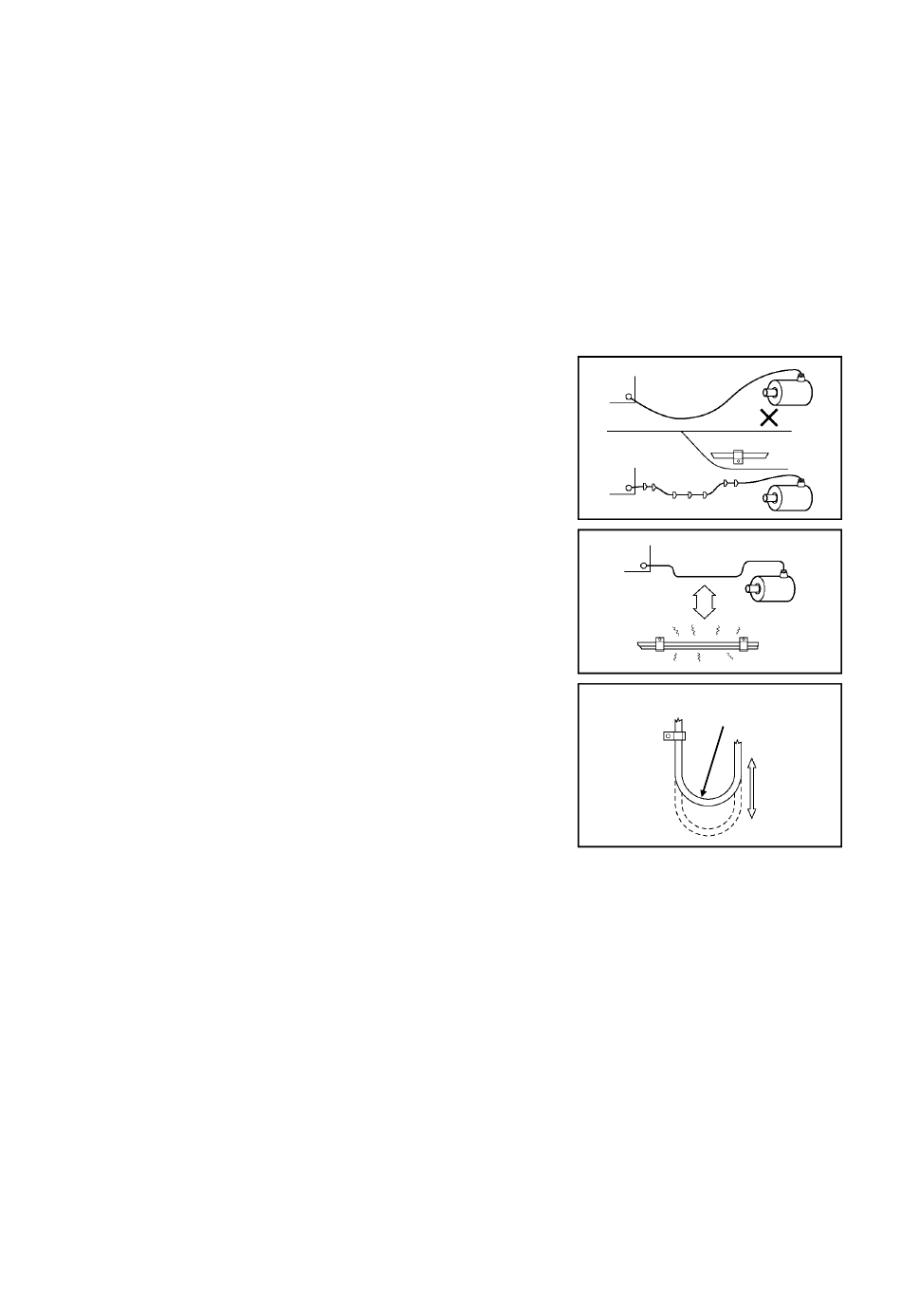

(1) The sensor cable should be clamped as shown in the
right figure to prevent excessive tension from being
applied to the cable connectors.
(2) The sensor cable should be located at least 300mm
away from power lines and other lines which
generate a high level of electrical noise.
(3) If the cable is moved under the state of bending like a
horseshoe, a robotic cable should be used.
The bend radius should never be less than 75 mm.
300mm or more
18
Cable clamp
R75mm or more
