NSD Absocoder NCV-40H Series Specifications & Instruction Manual page 24

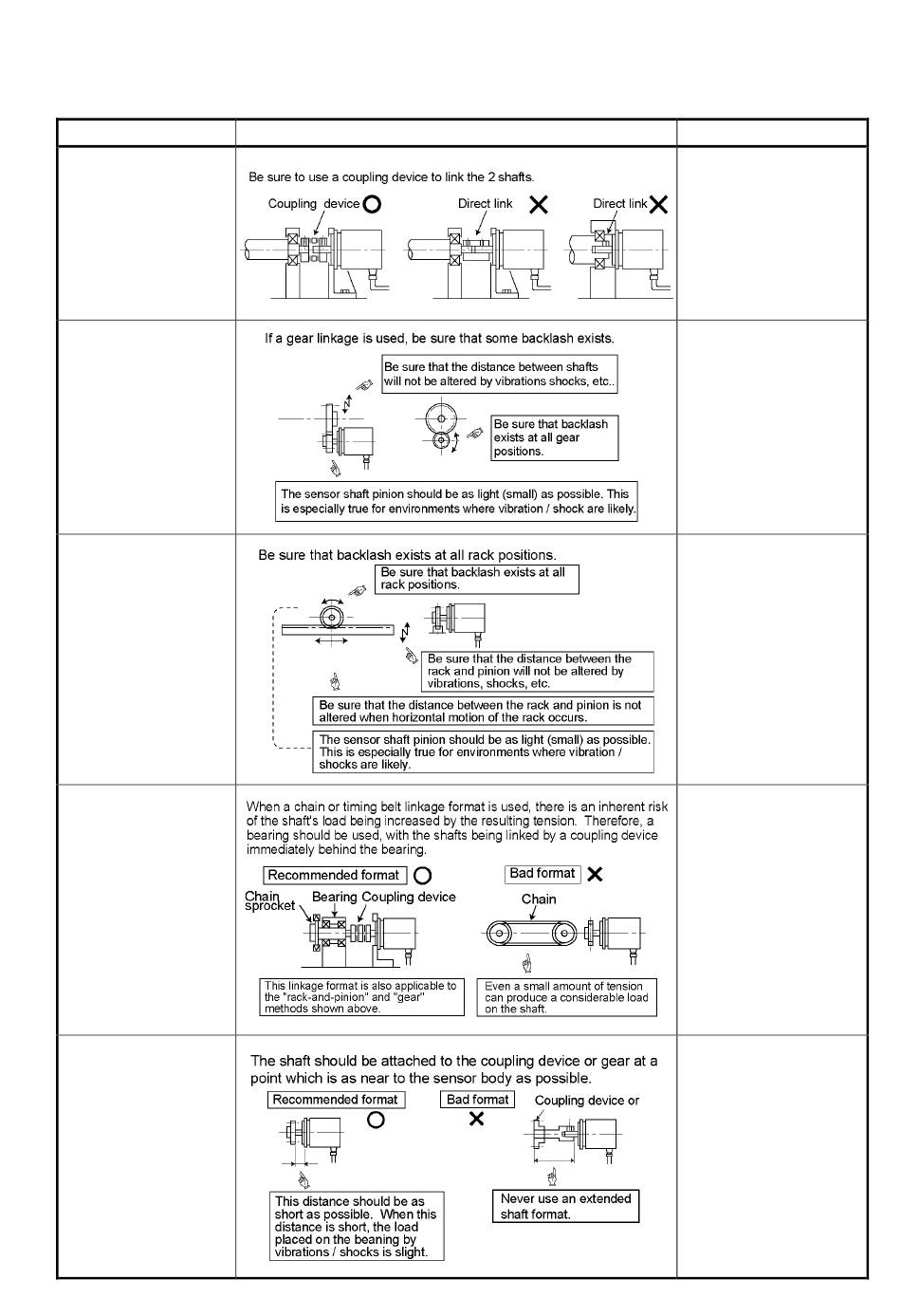

● Mounting of Turn-type ABSOCODER sensor
Item
(1) Coupling of
machine shaft and
sensor shaft
(2) For gear-type
linkage
(3) For rack and pinion
type linkage
(4) Chain or timing belt
linkage
(5) Shaft mounting
position
Explanation
16
Precaution
A "direct-link" format will
result in shaft fatigue
and / or breakage after
long periods.
Therefore, be sure to
use a coupling device to
link the shafts.
Incorrect gear mounting
can result in shaft
bending or breakage.
Incorrect rack and
pinion mounting can
result in shaft bending
or breakage.
