8-5. System Ready Signal

The system ready signal indicates that the normal position data is output from the converter.
The signal is ON when ABSOCODER sensor and converter operate normally.
For your safety, read the position data when the system ready signal is ON.
The system ready signal is OFF in the following cases:
- The power supply is OFF.
- An error occurred.
For more details, refer to "10-2. Output State when Occurring an Error"

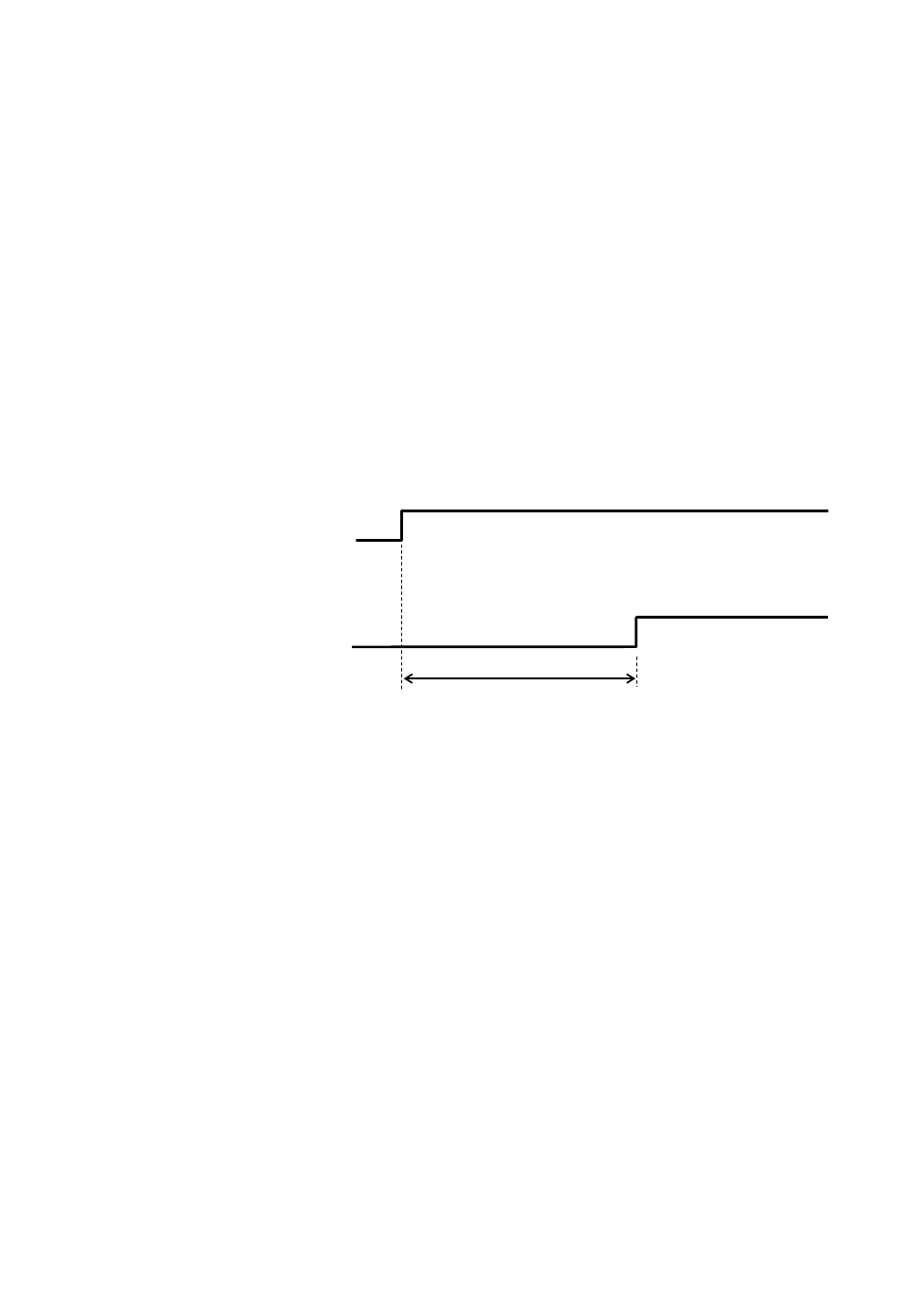

●Timing when the power turns ON
Power supply
System ready signal
(NOR)
ON
OFF
ON
OFF
1.0s max.
