8-4. Position Data Reading Setting
8-4-1. Position Data Reading by Latch Pulse (LP) Output
Position data reading is synchronized with the LP output signal from the converter.
The reading format is selectable from the following three: edge timing, level timing 1, and level timing 2.
(1) Edge timing
The position data output is updated when the LP signal switches from ON to OFF. It stabilizes when the LP
signal switches from OFF to ON, so the position data should be read at that time.

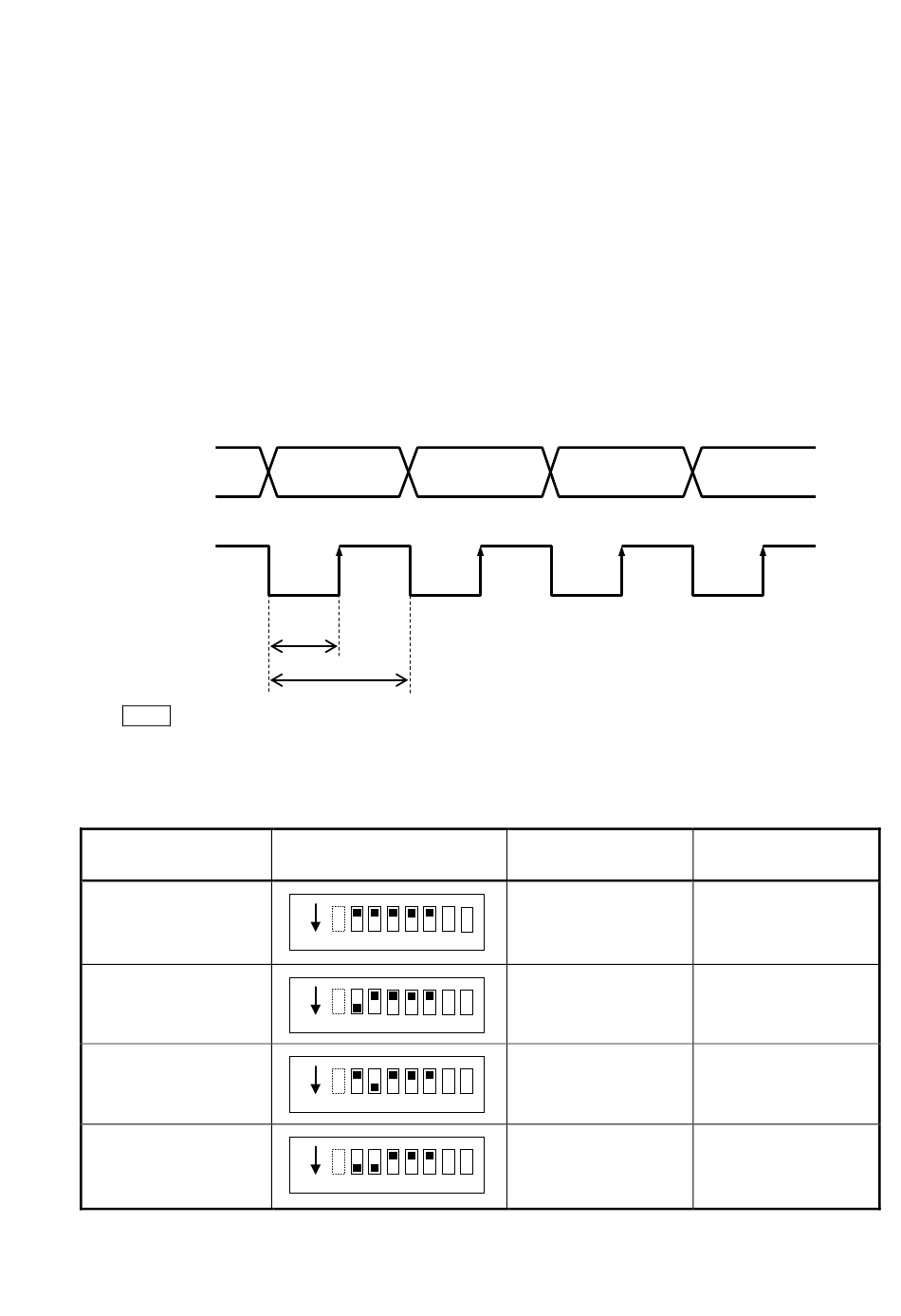

Position data
D0 to D25
ON
LP
OFF
NOTE
The above figure indicates when LP signal logic setting is non-inverted.
The LP signal logic can be inverted. For more details, refer to the "8-4-2. Output Logic of Latch Pulse
(LP) Signal Setting".
Position data update
cycle
0.1ms
(Factory setting)
0.2ms
0.4ms
0.8ms
t2
t1
DSW1 setting
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
29
t1
0.1ms
0.02 to 0.05ms
0.2ms
0.07 to 0.10ms
0.4ms
0.17 to 0.20ms
0.8ms
0.37 to 0.40ms
t2
