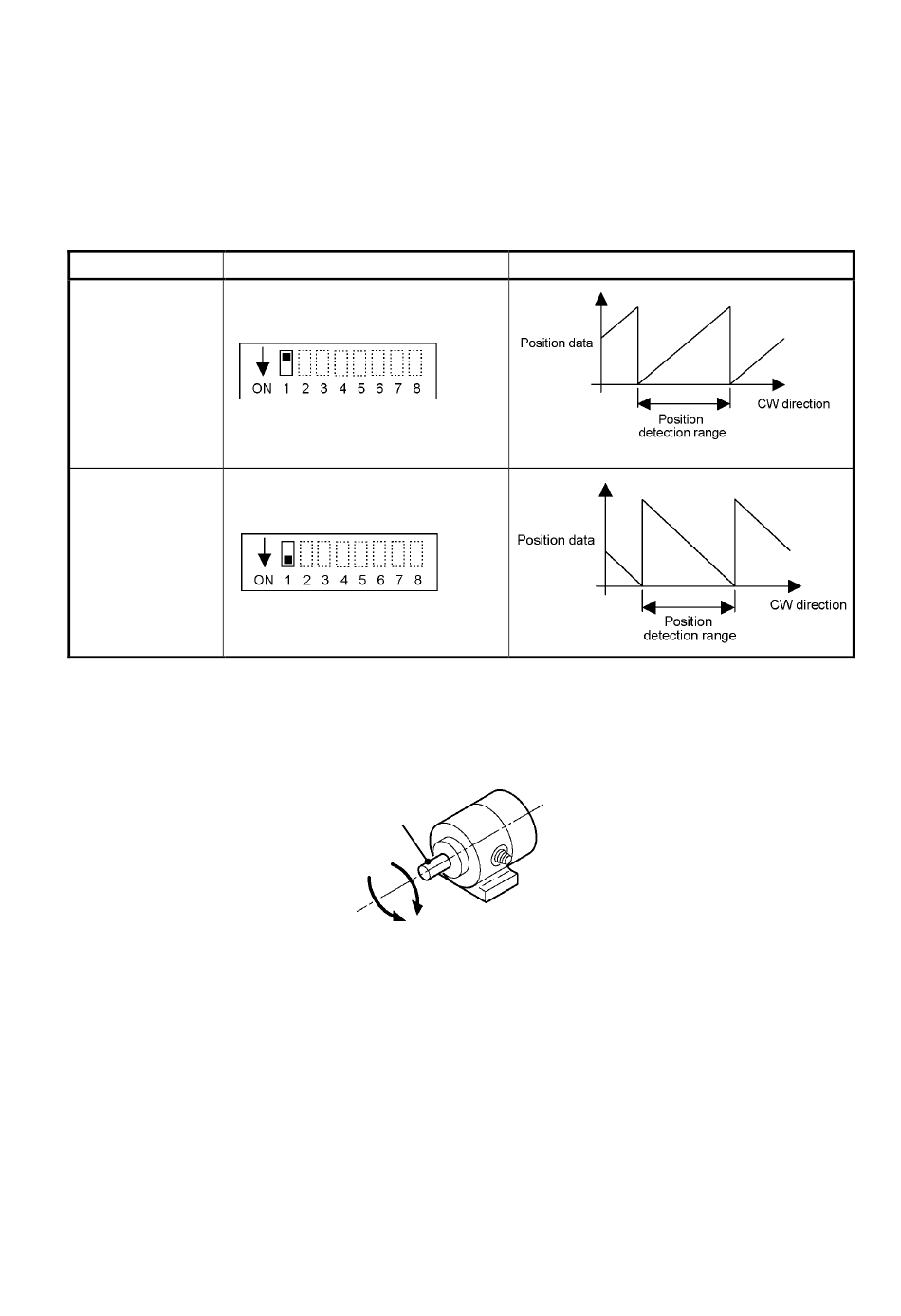

8-3. Position Data "Increase Direction" Setting

The position data increases or decreases according to the ABSOCODER sensor's rotative direction.
The direction in which the position data increases is specified by a switch (DSW1) on the converter's rear face.
Increase direction DSW1 setting Alteration of the position data
CW
(Factory setting)
CCW
Rotative direction of the shaft
Shaft
CW direction
CCW direction
28
