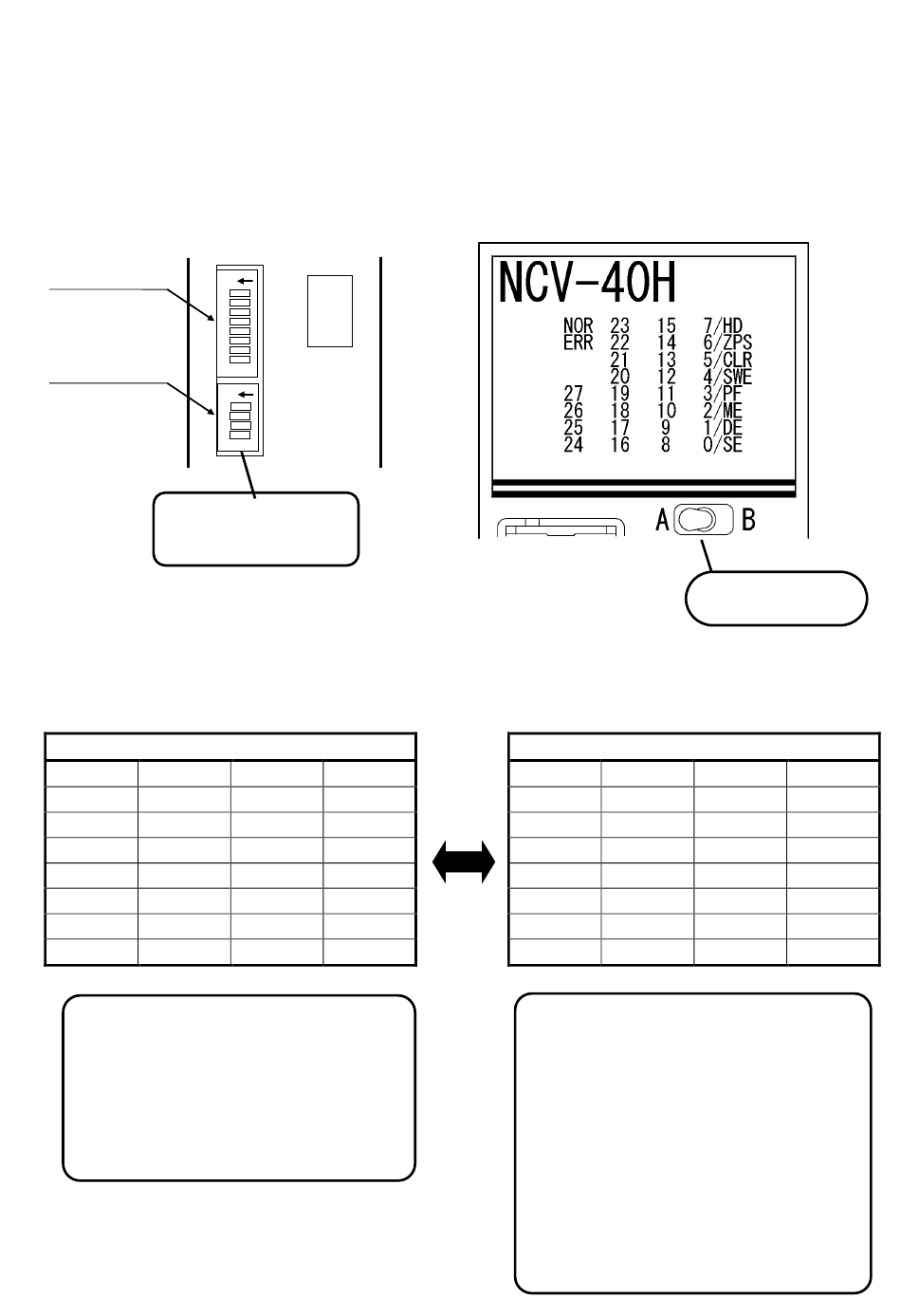

7-2. Function and Name of Display and Setting Area

Function setting switch
DIP switch
DSW1
DIP switch
DSW2
Function setting switches:
See section 8-2 to 8-4 and
8-6.
The display is changed by the toggle switch for the monitor LED.
A side
NOR 23
ERR 22
21
－
20
－
27 19
26 18
25 17
24 16
NOR : Indication of system ready
ERR : Indication of error
0～25 : Displays position data as binary or
gray codes.
26, 27: Constantly OFF (not used)
(Rear face)
ON
ON
15 7
14 6
13 5
12 4
11 3
10 2
9 1
8 0
Monitor LEDs
NOR
ERR
－
－
－
－
－
－
NOR : Indication of system ready
ERR : Indication of error
HD : Indication of HOLD input signal
ZPS : Indication of zero point setting input signal
CLR : Indication of error clear input signal
SWE : Indication of switch setting error
PF : Indication of low power error
ME : Indication of memory error
DE : Reserved (Not used)
SE : Indication of sensor disconnected error
(Blinks when occurring sensor power supply error)
24
Toggle switch for the
monitor LED
B side
－ －
－ －
－ －
－ －
－ －
－ －
－ －
－ －
HD
ZPS
CLR
SWE
PF
ME
DE
SE
