8-4-2. Output Logic of Latch Pulse (LP) Signal Setting

The logic of the latch pulse (LP) output signal can be inverted.
When changing the setting, set it by the dip switch located on the rear of the converter.

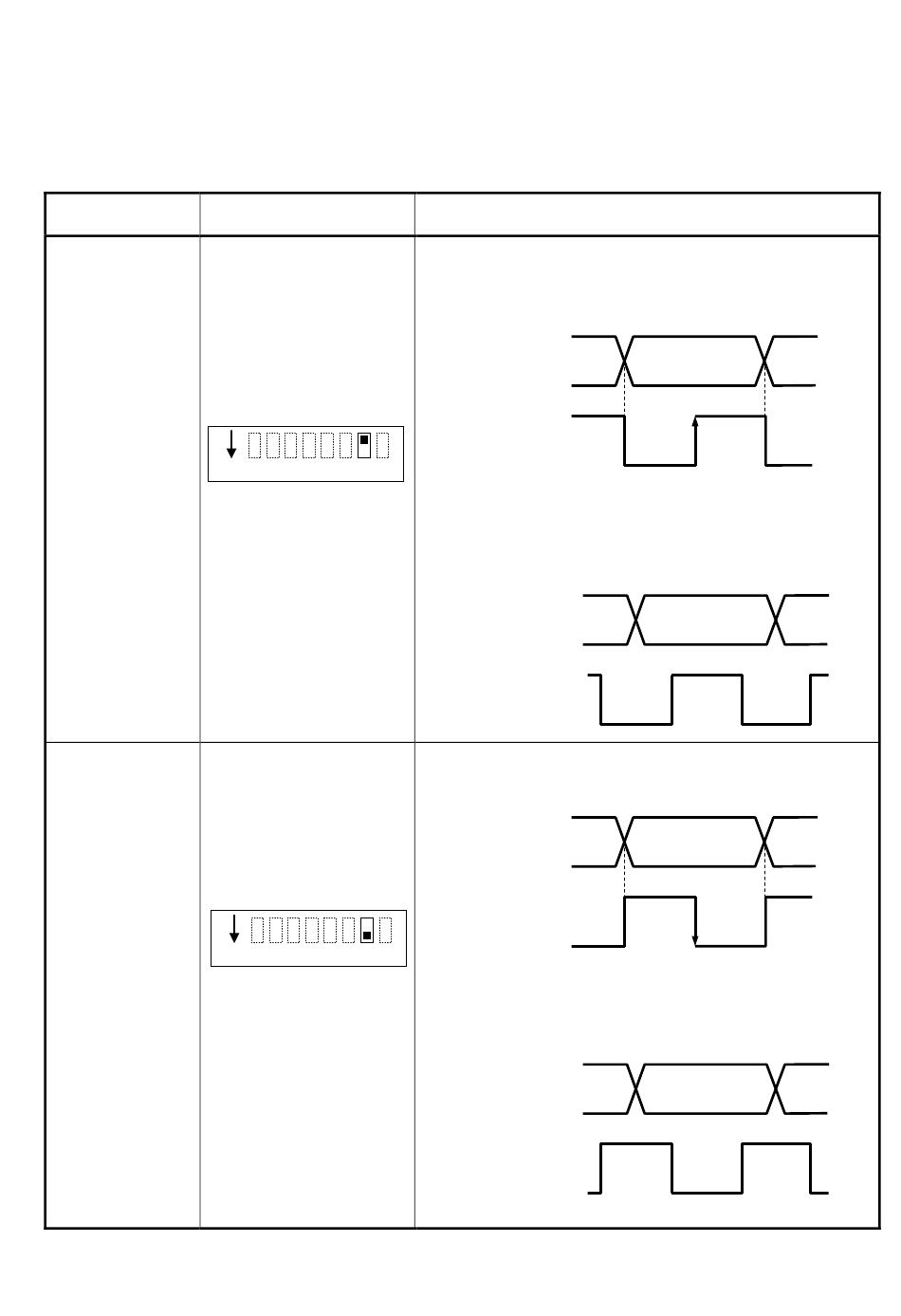

Output logic of LP
signal
ON 1 2 3 4 5 6 7 8
Non-inverted
(Factory setting)
ON 1 2 3 4 5 6 7 8
Inverted
DSW1 setting
●Edge timing
●Level timing 1, 2
●Edge timing
●Level timing 1, 2
Output timing
Read the position data output when the latch pulse signal
switches from OFF to ON.
Position data
D0 to D25
ON
LP
OFF
Read the position data output while the latch pulse signal
is ON.
Position data
D0 to D25
ON
LP
OFF
Read the position data output when the latch pulse signal
switches from ON to OFF.
Position data
D0 to D25
ON
LP
OFF
Read the position data output while the latch pulse signal
is OFF.
Position data
D0 to D25
ON
LP
OFF
32
