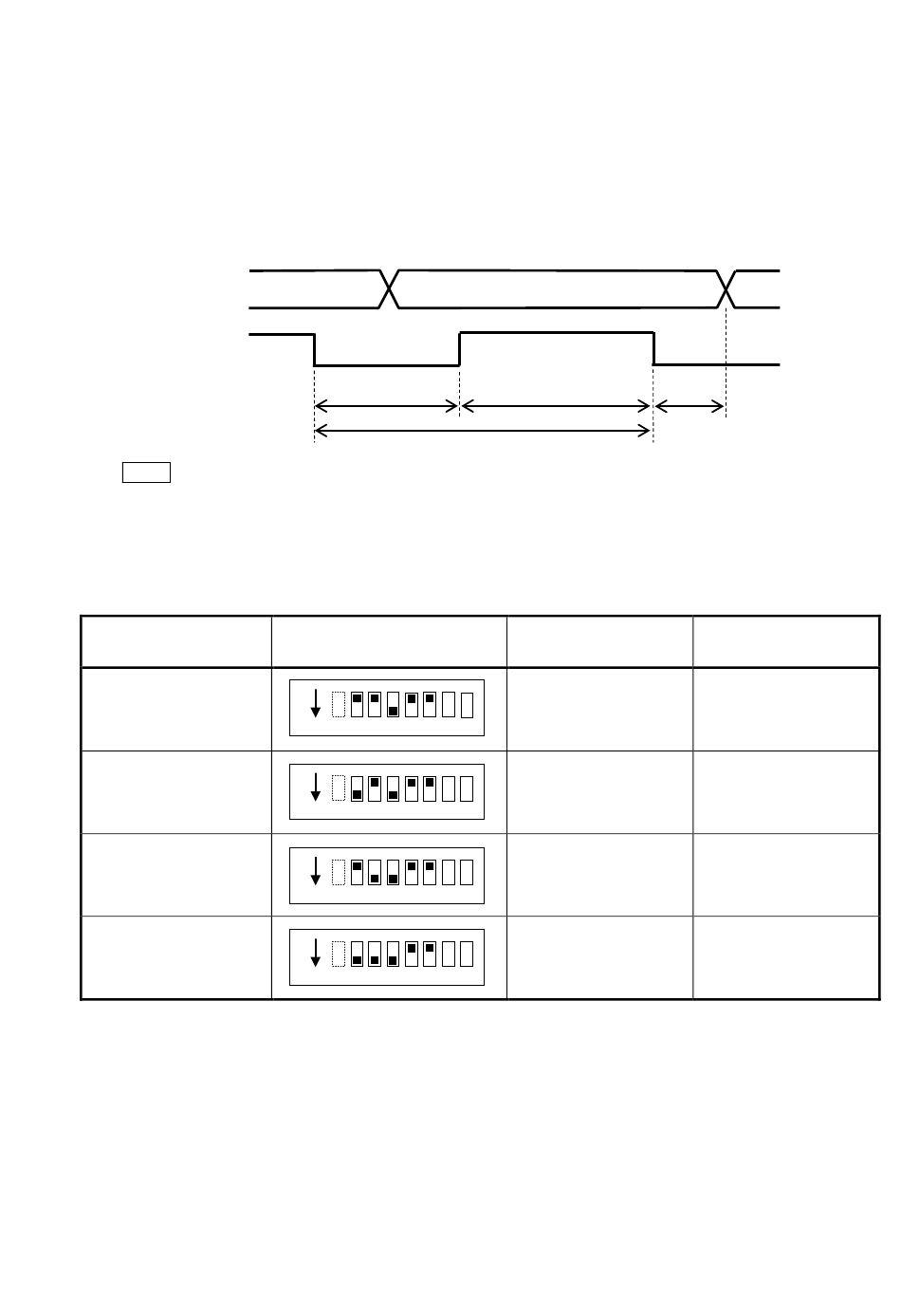

(2) Level timing 1
When Level timing 1 is selected, the position data output is updated when the LP output signal is OFF.
It stabilizes when the LP output signal is ON, so the position data should be read at that time.
Position data
D0 to D25
ON
LP
OFF
NOTE
The above figure indicates when LP signal logic setting is non-inverted.
The LP signal logic can be inverted. For more details, refer to the "8-4-2. Output Logic of Latch Pulse
(LP) Signal Setting".
Position data update
cycle
0.8ms
1.6ms
3.2ms
6.4ms
0.4ms
DSW1 setting
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
30
t2
t1
t1
0.8ms
1.6ms
3.2ms
6.4ms
0.2ms
t2
0.4ms
1.2ms
2.8ms
6.0ms
